Quick Splice Connector

57 87101 57 87153 Picture Ring Terminal
57 76100 5779100 Picture Twist-On Wire Connector

See table below for details.

Item # 57-80100, 57-80200, 57-80300 Categories: ,

Description

Product #Length (mm):Height (mm):AWG:Color:Pack:Technical Drawing:
57-8010031.5mm8.5mm22-18Red100

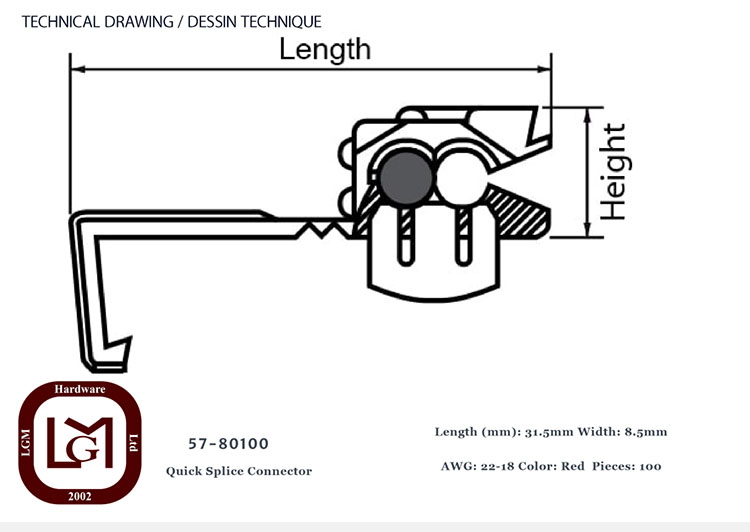

57 80100 Technical Drawing
Click photo to make larger
57-8020031.5mm8.5mm18-14Blue100

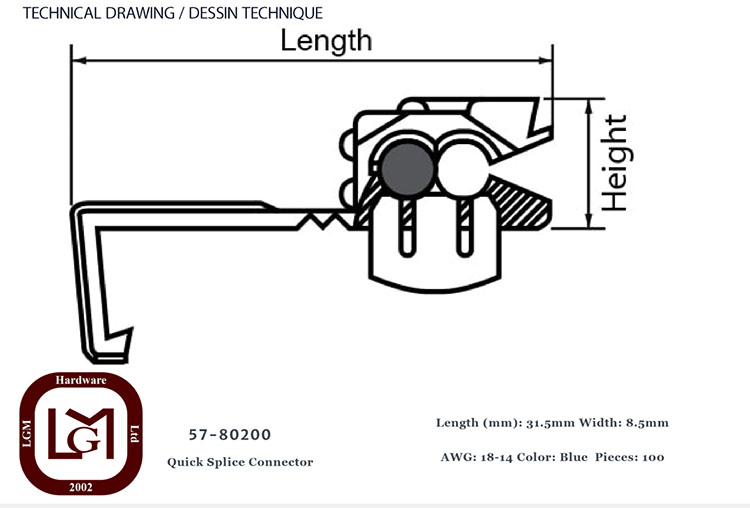

57 80200 Technical Drawing
Click photo to make larger
57-8030031.8mm11-.3mm12-10Yellow100

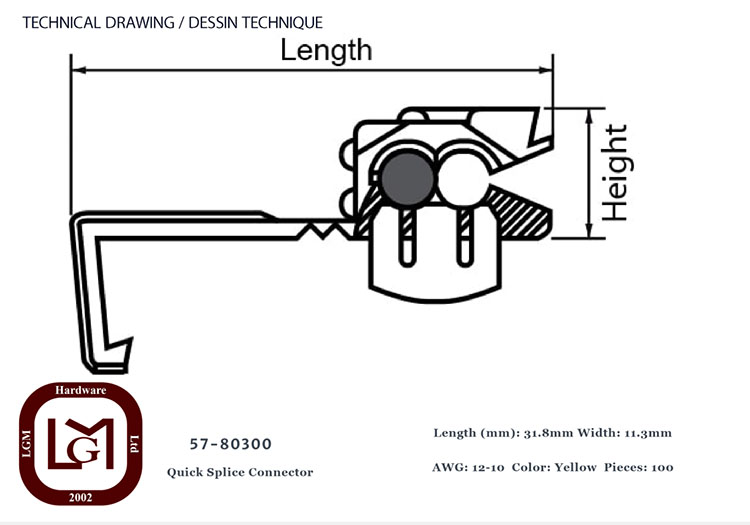

57 80300 Technical Drawing
Click photo to make larger

Material: PP/Nylon 6/6 with Copper Tip Insert

No need to peel wire shin and tape before application.





Additional information

Item #

57-80100, 57-80200, 57-80300
