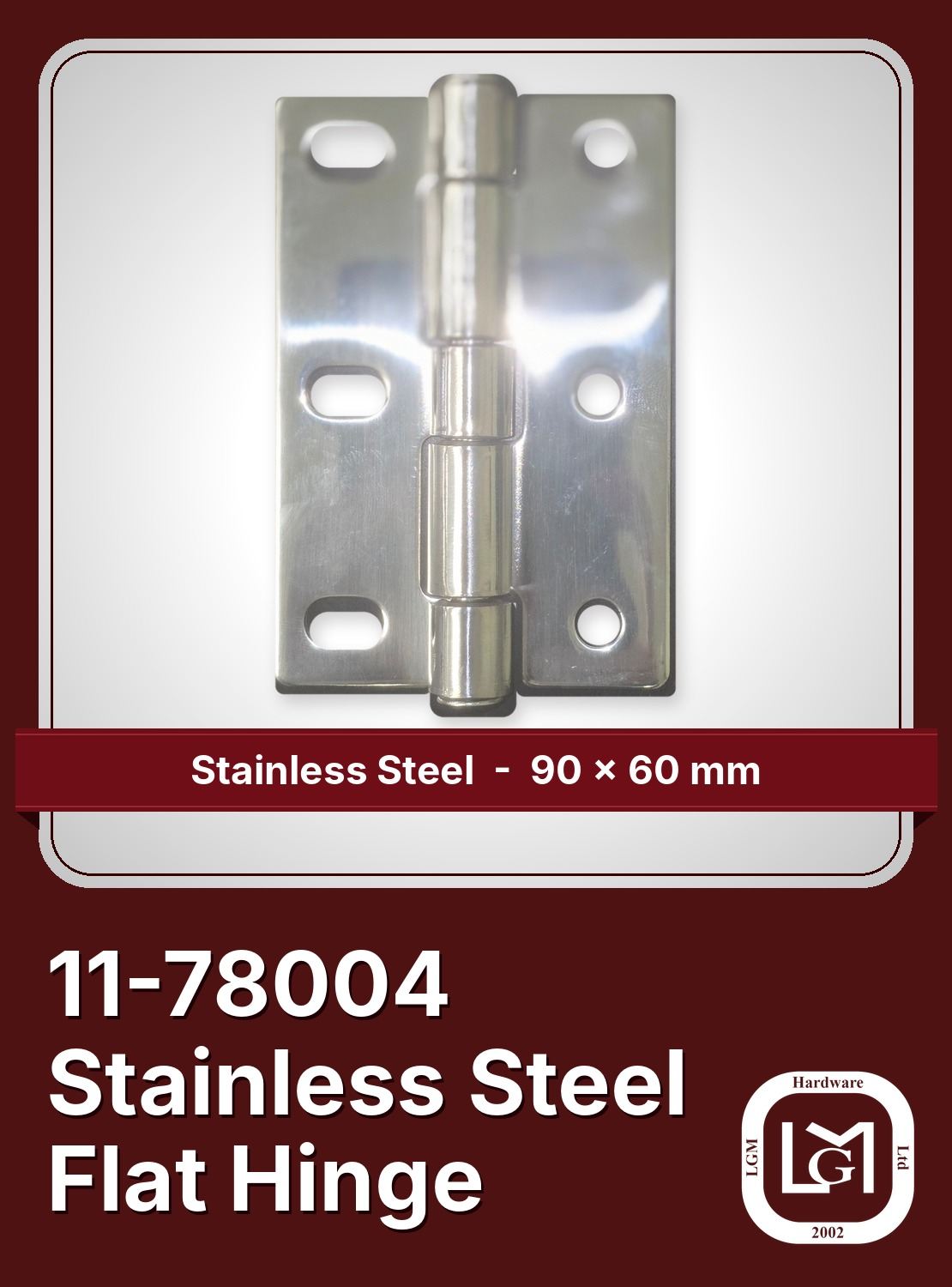

Stainless steel flat-mount hinge, 90 x 60 mm (3.54″ x 2.36″), 3 mm thick. One leaf has 3 round mounting holes of 7 mm; the other has 3 slotted holes of 12 x 7 mm. 6 mm pin. Rated for 1,000 N (about 225 lb) axial load and 800 N (about 180 lb) radial load.

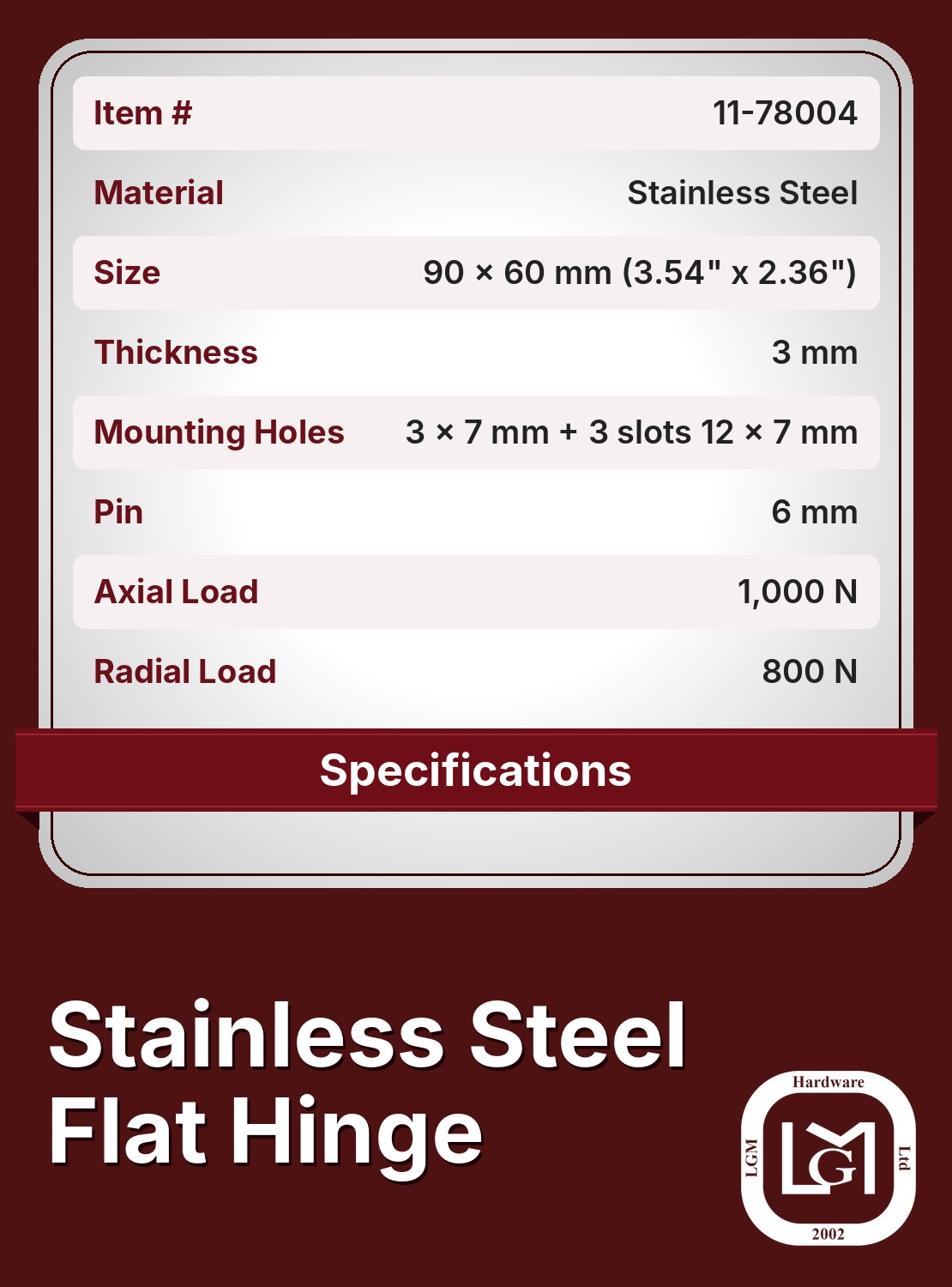

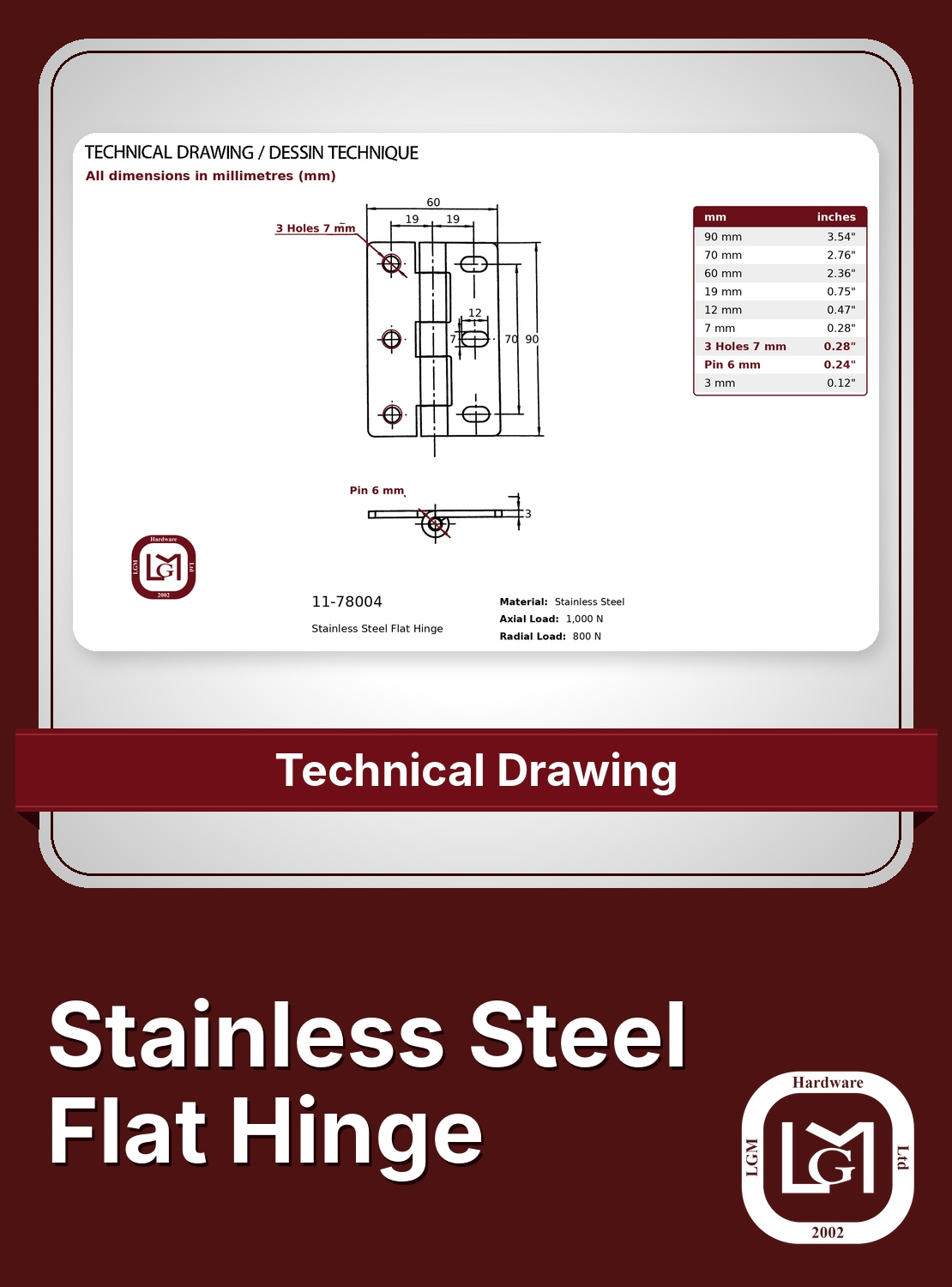

See the Specifications and Technical Drawing images for full details.
Hinges, Stainless Steel Hinges
Stainless Steel Flat Hinge 90 x 60 mm
Stainless steel | Flat mount
90 x 60 mm (3.54″ x 2.36″) | 3 mm thick
3 holes 7 mm + 3 slots 12 x 7 mm | 6 mm pin
Axial load 1,000 N | Radial load 800 N
