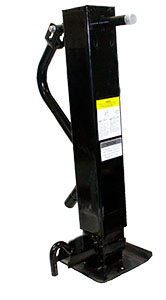

12K 4″ Square Trailer Jack

38 70002 38 70000 Picture 7000 lbs Drop Leg 2-1/2″ Square Tube Jack
81 51770 81 52970 Picture 1 Aluminum Drip (Gutter Rail)

12K Support capacity

10K lift capacity

See table below for details.

SKU: 38-12000, 38-12200, 38-12500, 38-12900, 38-12101, 38-12601, 38-12701, 38-12300, 38-12800 Categories: ,

Description

Product #Description:Retracted height:Travel distanceProduct ImageMounting Bracket Technical DrawingTechnical Drawing:
38-12000HD direct weld - side wind
Spring return with handle
4" square tube - side pin
28.5" 12.5"

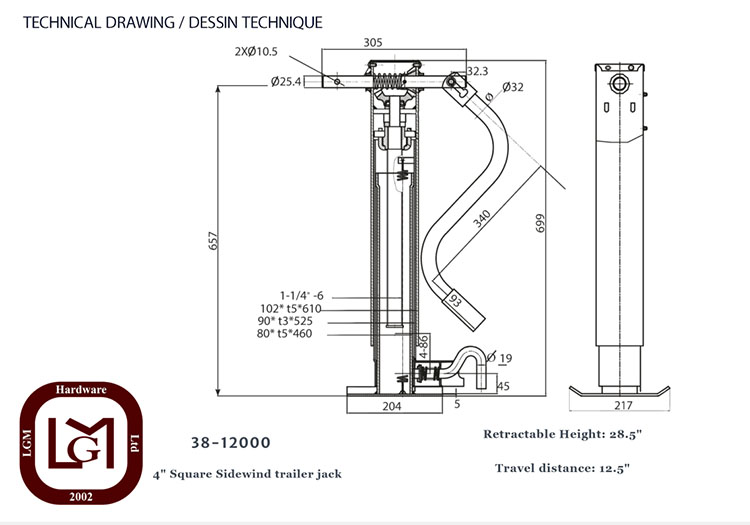

38 12000 Technical Drawing
Click image to make Larger.
38-12200HD direct weld
Side wind - less handle
4" square tube - side pin		28.5"12.5"
38 12200 Technical Drawing
Click image to make Larger.
38-1230012K Trailer Jack - Passenger side - RIGHT Hand Crank Pin - side pin - mounting bracket and hardware - Polyurethane Coated Black - No Handle

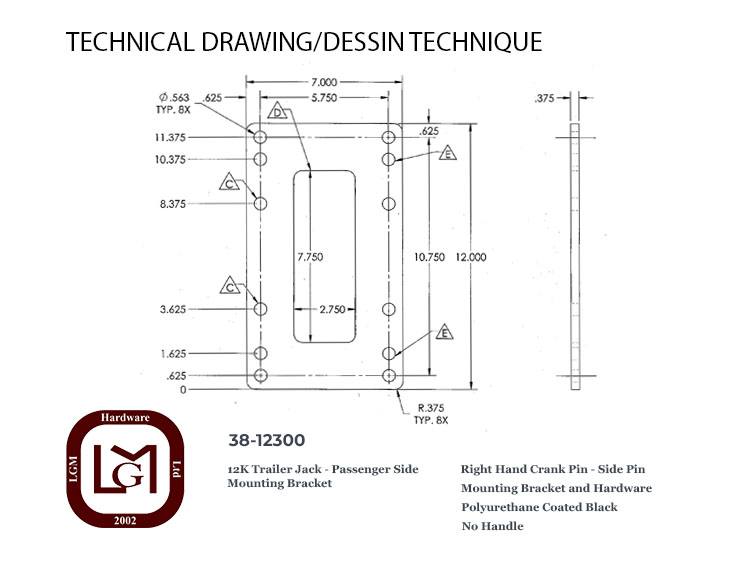

38 12300 Mounting Bracket Technical Drawing
Click photo to make Larger.

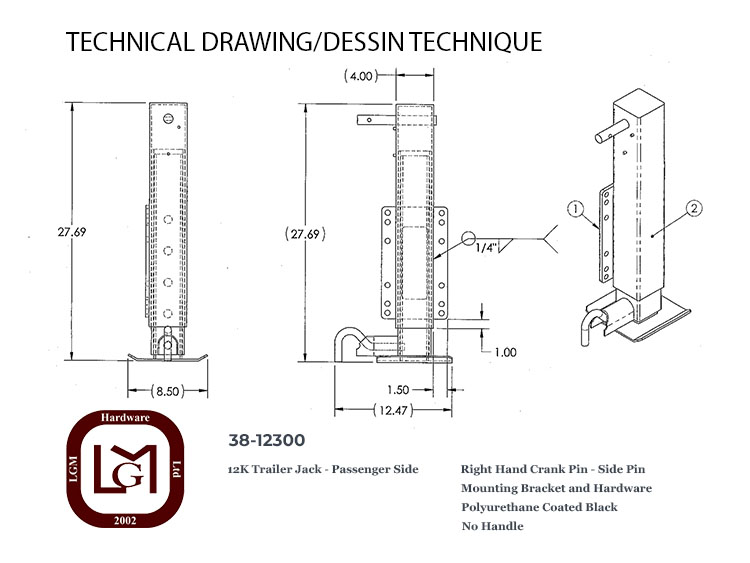

38 12300 Technical Drawing
Click photo to make Larger.
38-12500HD direct weld - side wind
Spring return with handle
4" square tube - front pin

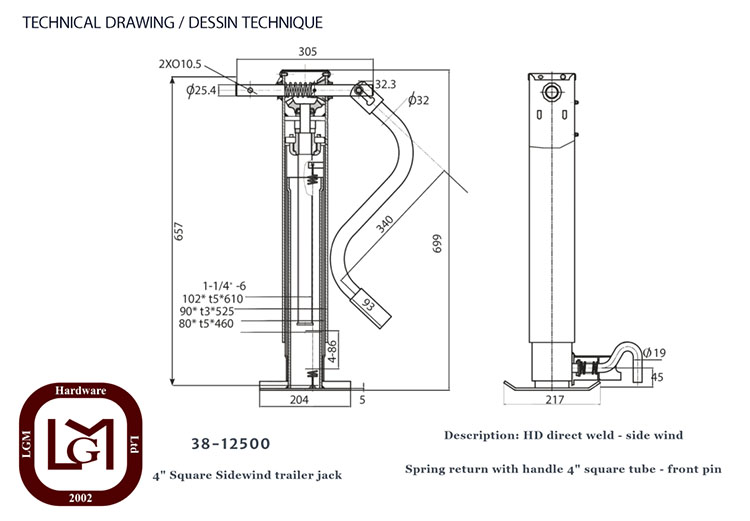

38 12500 Technical Drawing
Click image to make Larger.
38-1280012K Trailer Jack - Driver side - LEFT Hand Crank Pin - side pin - mounting bracket and hardware - Polyurethane Coated Black - No Handle

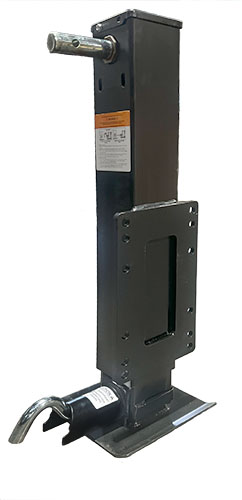

38 12800 Product Image
Click photo to make Larger.
38 12800 Mounting Bracket Technical Drawing
Click photo to make Larger.

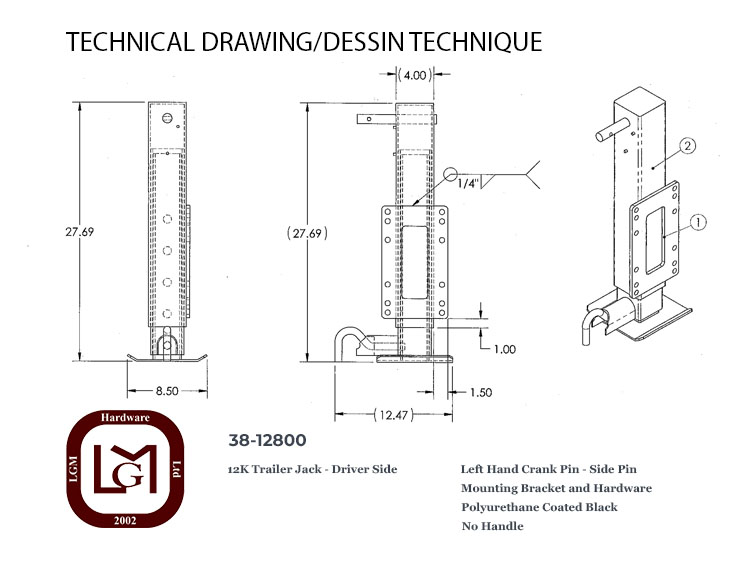

38 12800 Technical Drawing
Click photo to make Larger.
38-12900HD direct weld - 2 speed - side wind
Spring return with handle
4" square tube - front pin

Accessories:

Product #Description:

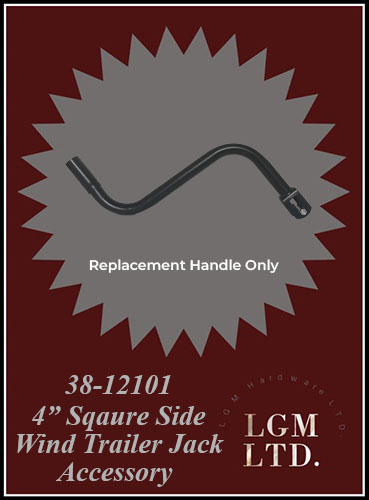

38-12101Replacement handle only
38-12601Replacement cap with screws only

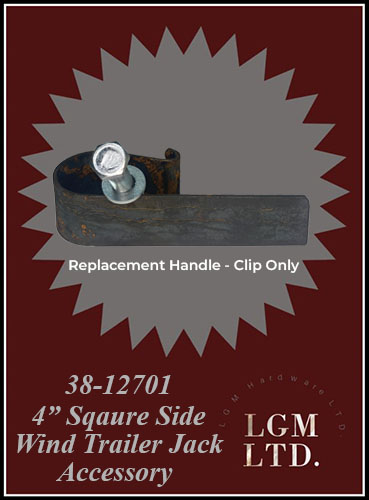

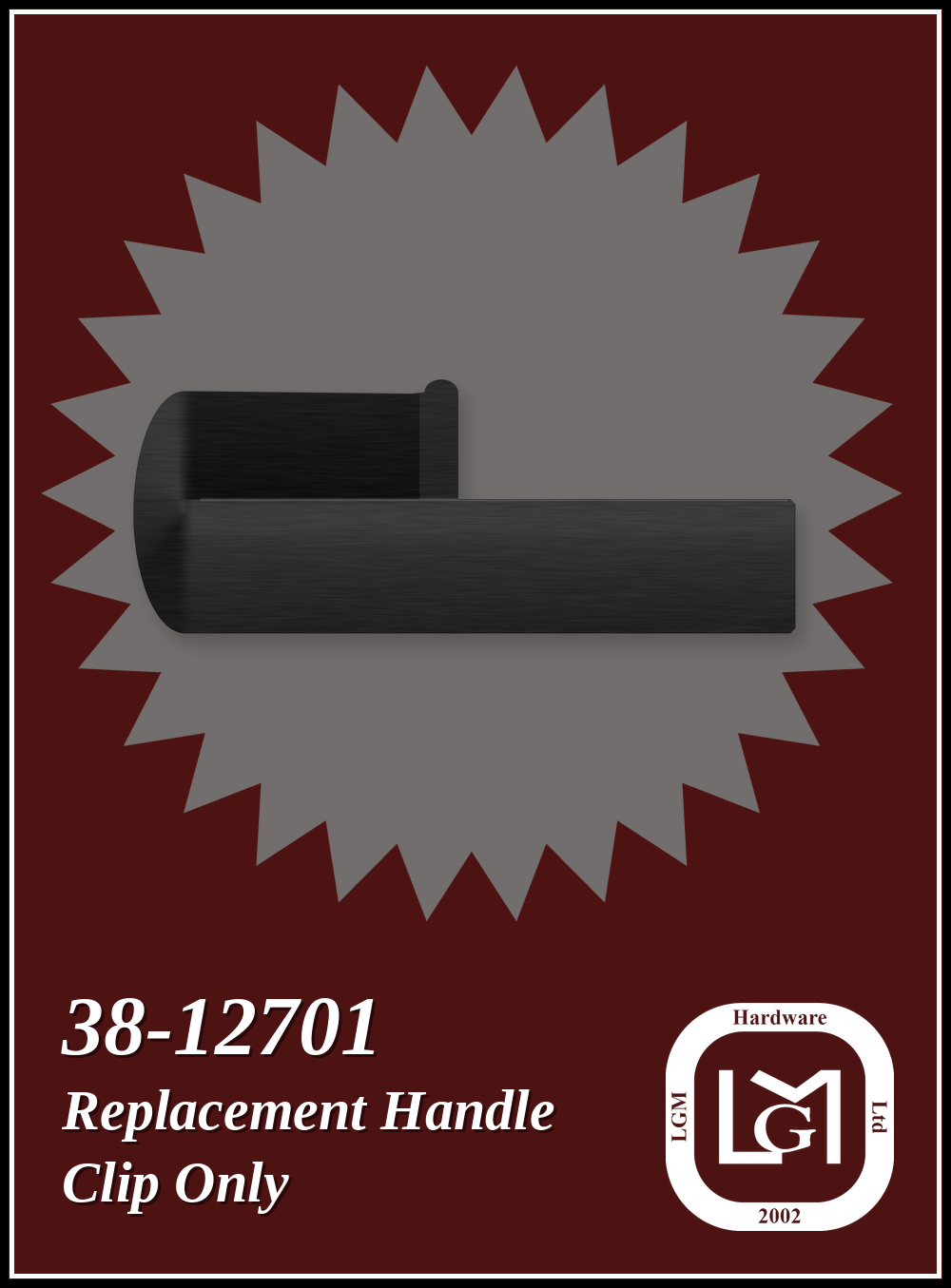

38-12701Replacement handle clip only

Additional information

Item #

38-12000, 38-12101, 38-12200, 38-12500, 38-12601, 38-12701, 38-12900
