Steel Cam & Accessories

44 48552 Picture Folding “T” Handle with 5/16″ Shaft
44 22407 Picture Locking “T” Handle with 5/16″ Shaft

See below table and image for details.

SKU: 44-60702 44-44802 44-61102 44-60502 44-40102 44-35901 Categories: ,

Description

Product #Product Image:Description:Material:Technical Drawing:
44-4480244 44802 Product Image2 1/8" longZinc Plated
44-6110244 61102 Product Image2″ Die Cast CamZinc

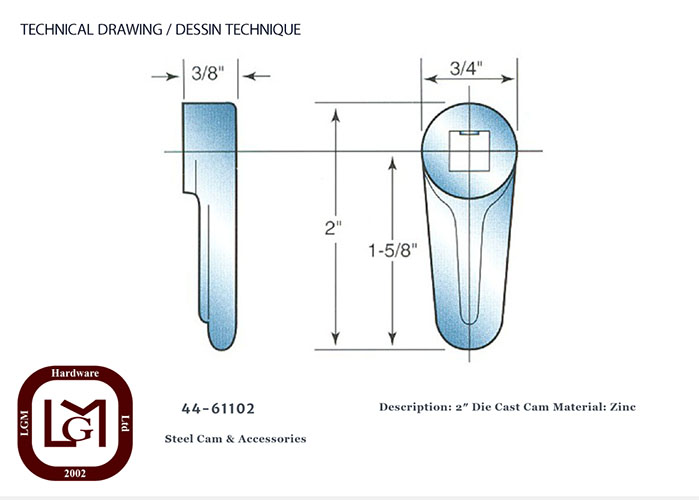

44 61102 Technical Drawing
Click photo to make Larger.
44-6070244 60702 Product Image2 3/4" Steel CamZinc Plated

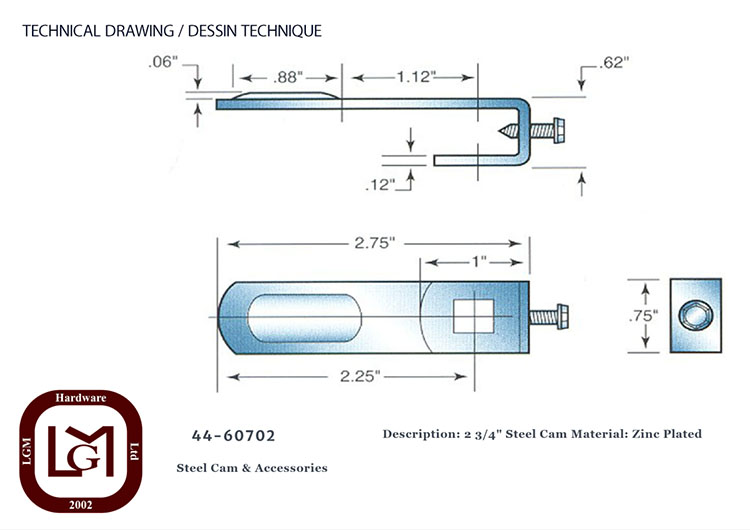

44 60702 Technical Drawing
Click photo to make Larger.
44-6050244 60502 Product Image2 3/8″ Steel CamZinc Plated

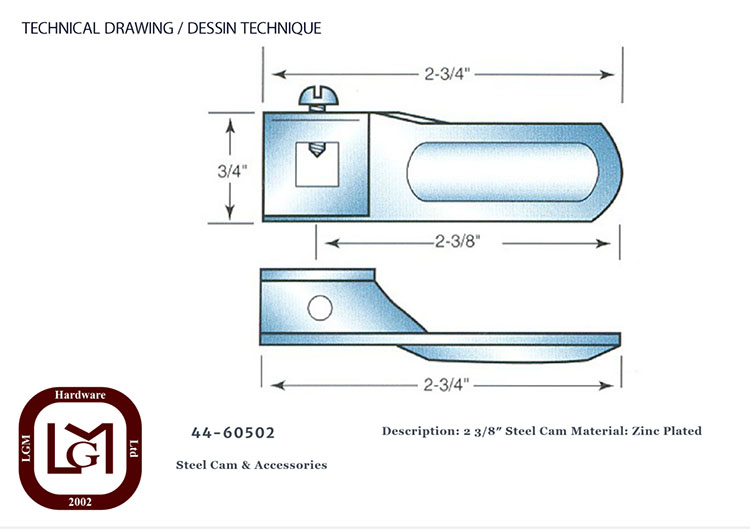

44 60502 Technical Drawing
Click photo to make Larger.
44-4010244 40102 Product ImageTwo Point Cam and Cover Kit Zinc Plated

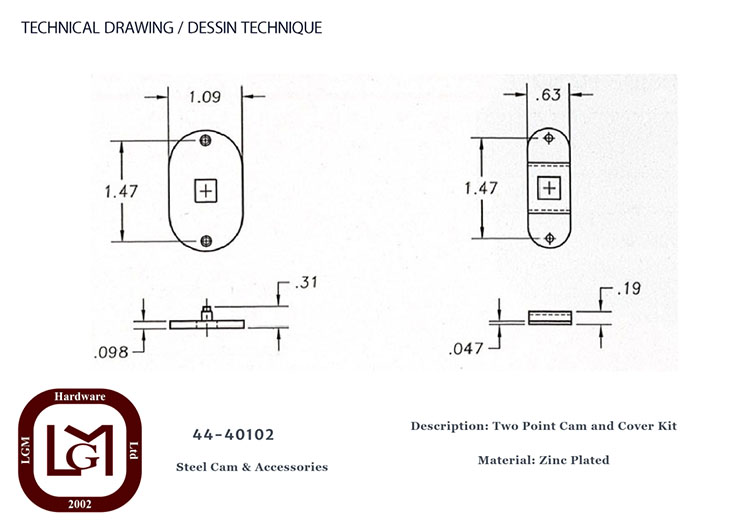

44 40102 Technical Drawing
Click photo to make Larger.
44-3590144 35901 Product ImageBlack Push on Lock Nut for 0.312″ Square Shaft

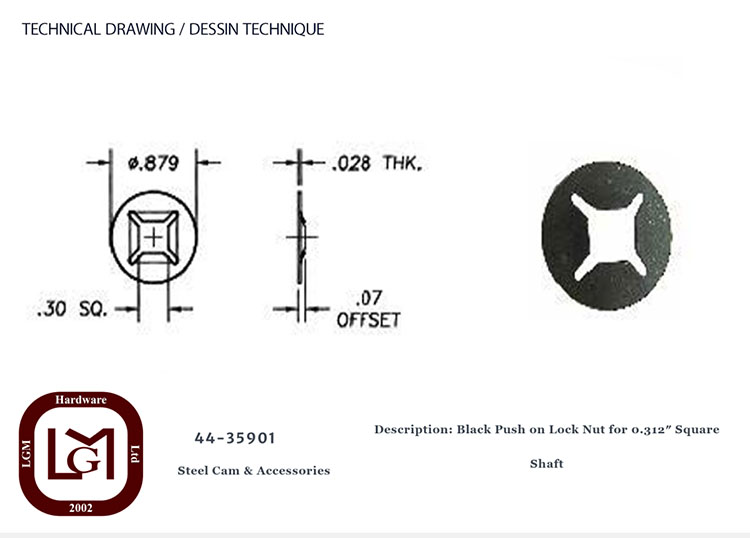

44 35901 Technical Drawing
Click photo to make Larger.

Additional information

Item #

44-35901, 44-40102, 44-44802, 44-60502, 44-60702, 44-61102
