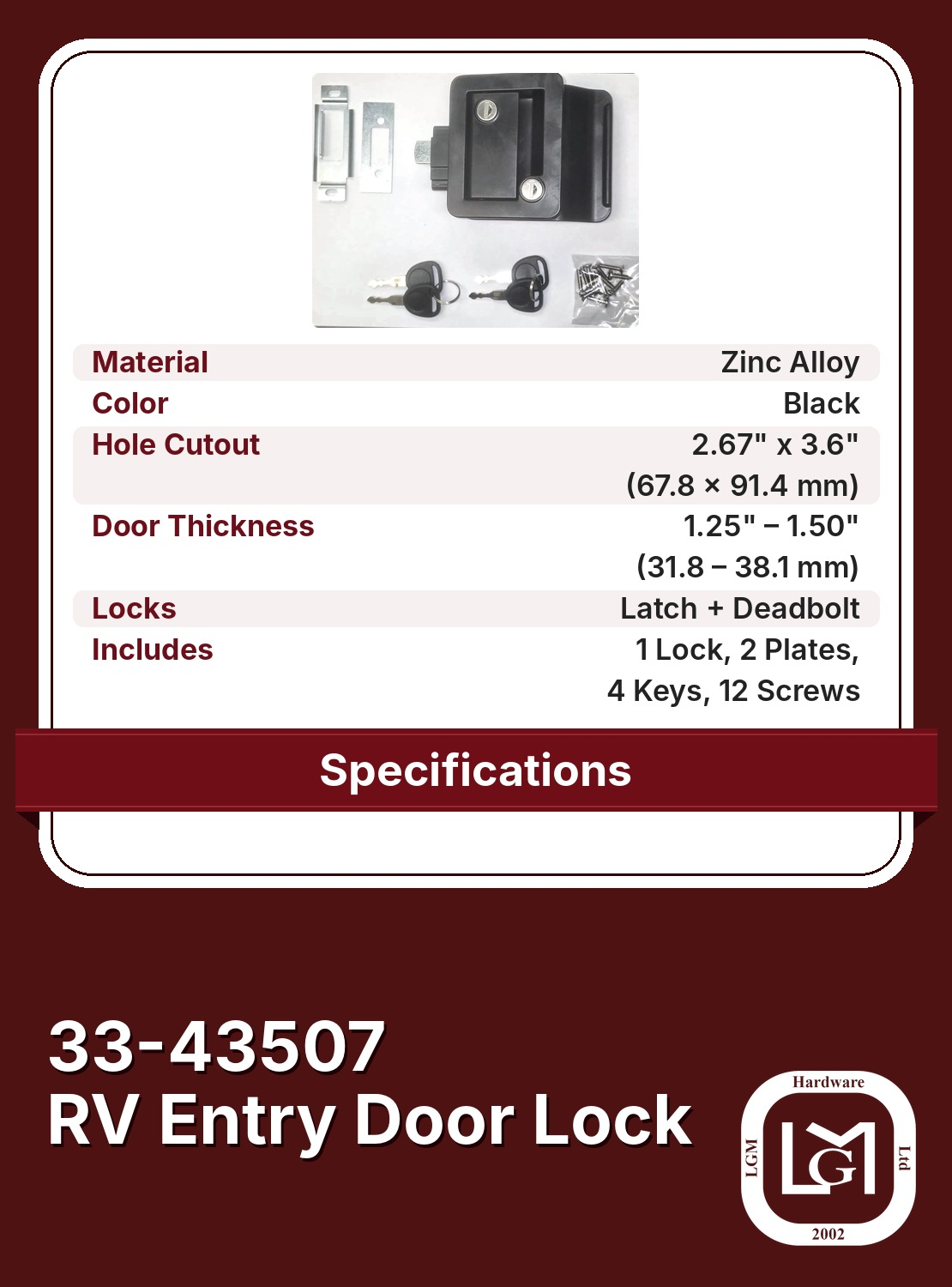

RV entry door lock with paddle latch and deadbolt, both locked by key. Fits most RV doors: campers, bumper-pull and travel trailers, 5th wheels, horse and cargo trailers. Requires a 2.67″ x 3.6″ (67.8 x 91.4 mm) hole cutout and fits doors 1.25″ – 1.50″ (31.8 – 38.1 mm) thick. Please confirm your door measurements before ordering.
Includes 1 lock, 2 plates, 4 keys and 12 screws.

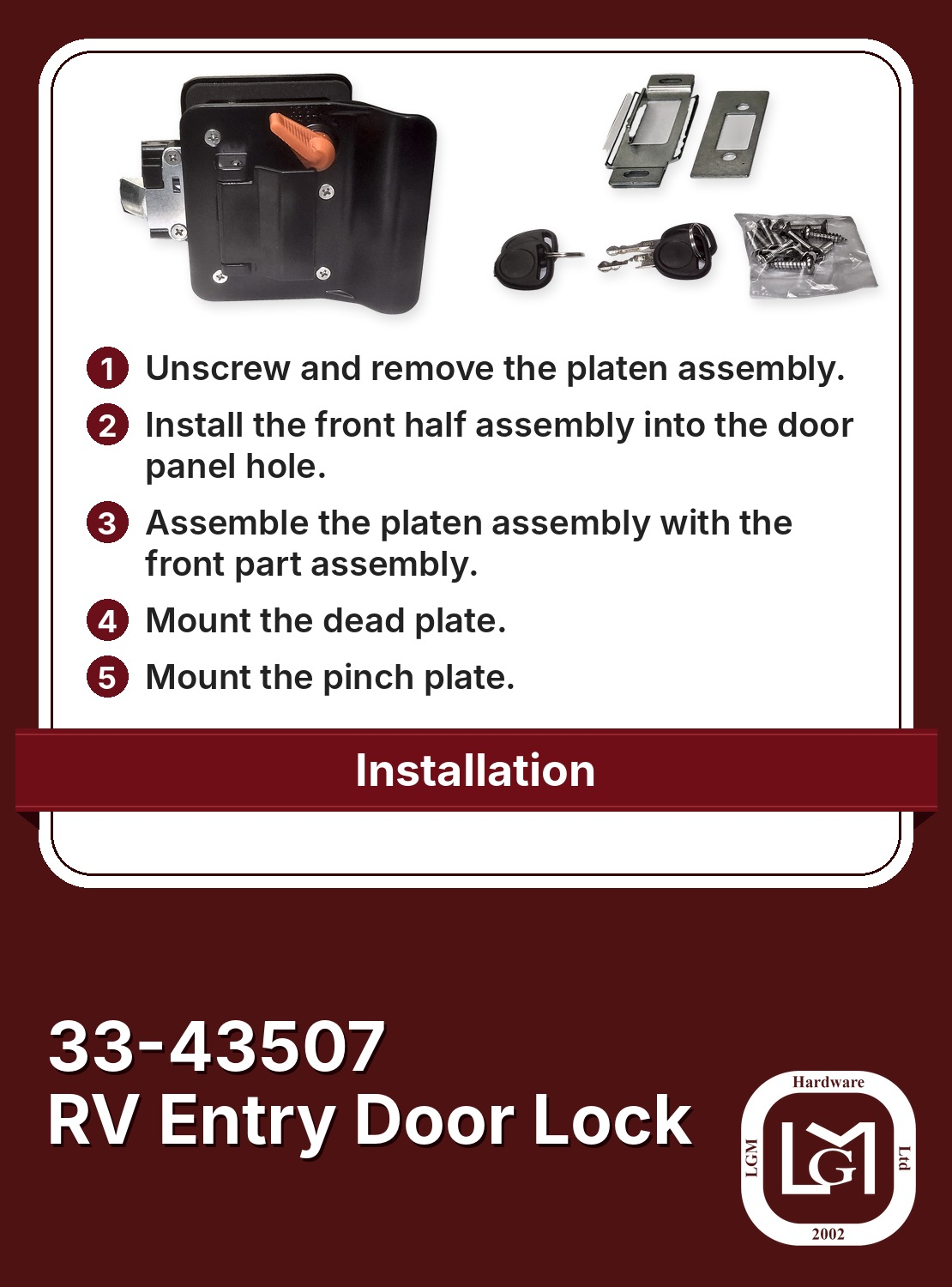

Installation:
1. Unscrew and remove the platen assembly.
2. Install the front half assembly into the door panel hole.
3. Assemble the platen assembly with the front part assembly.
4. Mount the dead plate.
5. Mount the pinch plate.

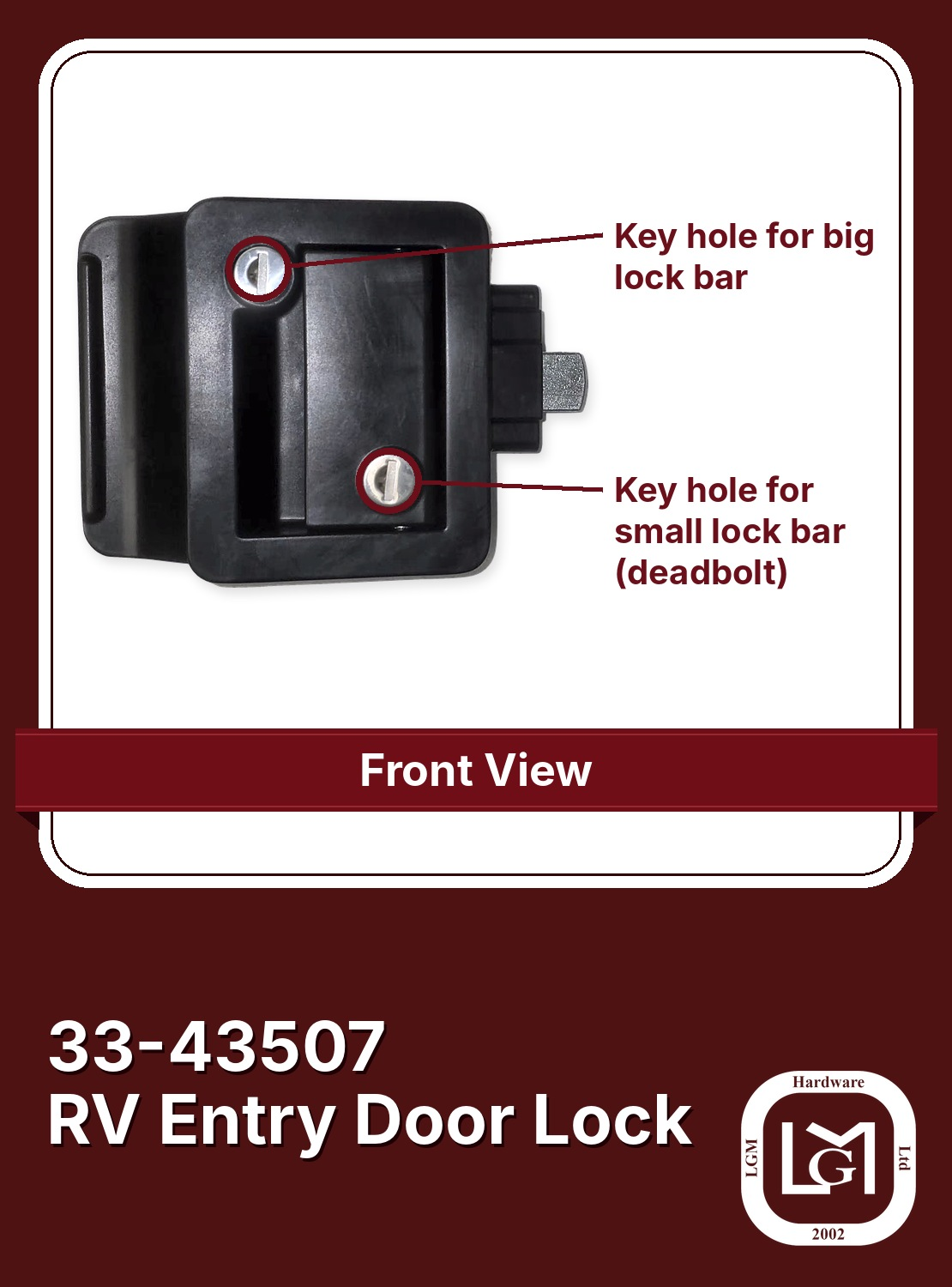

How to lock the deadbolt:
1. Insert your key into the lower key hole.
2. Turn it 90° counter-clockwise (to the left). The deadbolt locks the door.
3. Turn the key back to pull it out. The door stays locked with the keys in your hand.
