Shaft Pad-lockable Handle

44 70502 44 70002 Picture Adjustable Roller Lock Rod System 96″
44 48552 Picture Folding “T” Handle with 5/16″ Shaft
SKU: 33-30003, 33-56004, 33-20003, 44-21303, 33-36004, 33-34502 Categories: ,

Description

Product #Description:Shaft:Finish:Lock:C.CTechnical Drawing:

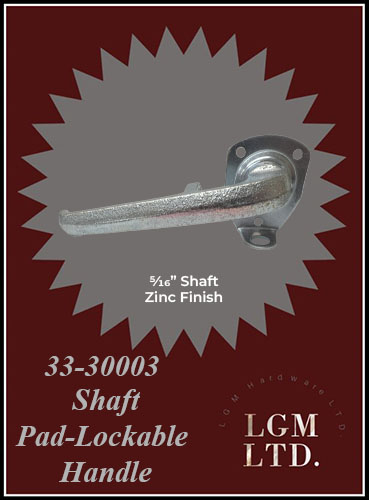

33-300035/16" shaft Zinc

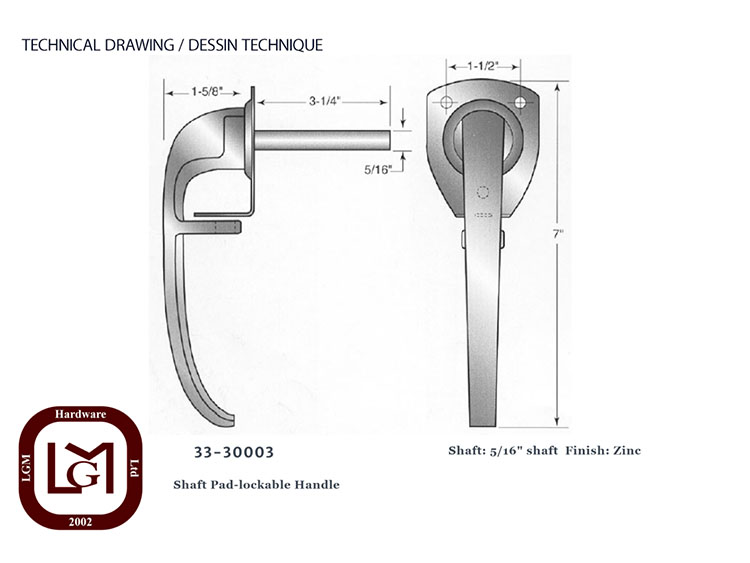

33 30003 Technical Drawing
Click photo to make Larger.

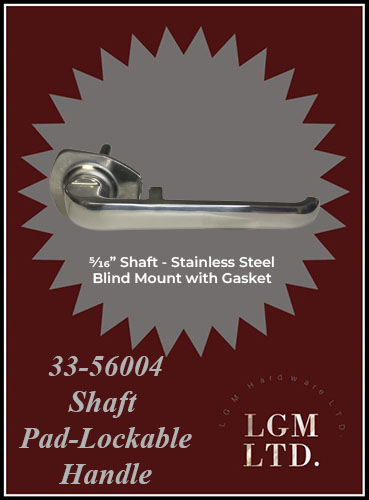

33-56004blind mount with gasket5/16" shaft Stainless Steel

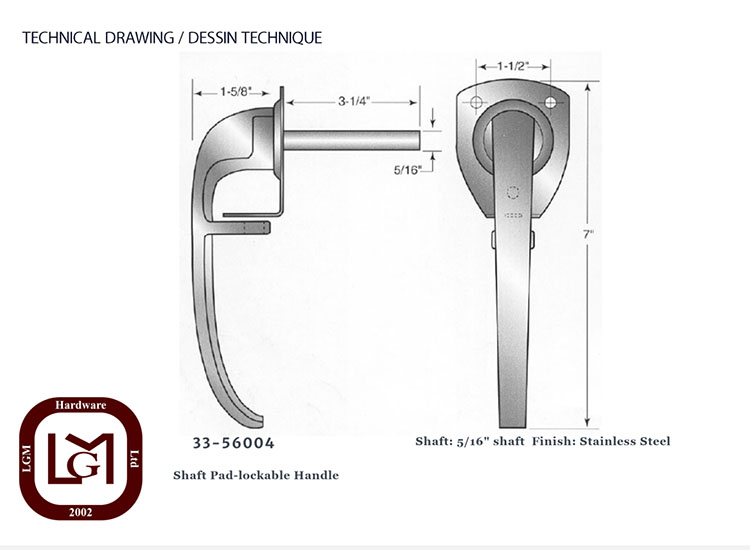

33 56004 Technical Drawing
Click photo to make Larger.
33-200035/8" shaftzinc

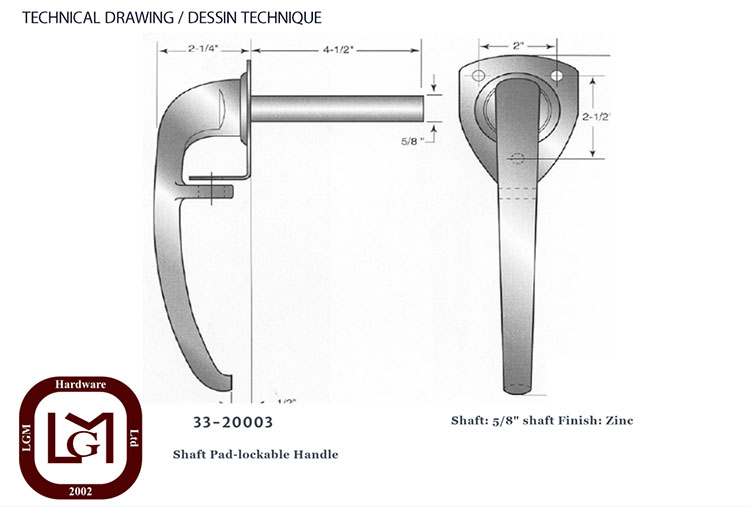

33 20003 Technical Drawing
Click photo to make Larger.
33-345025/16" shaftzinc

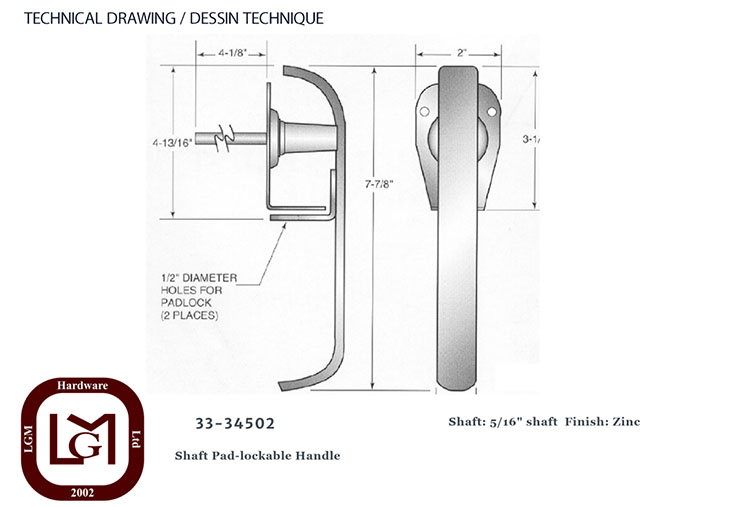

33 34502 Technical Drawing
Click photo to make Larger.
33-360045/16" shaftStainless Steel

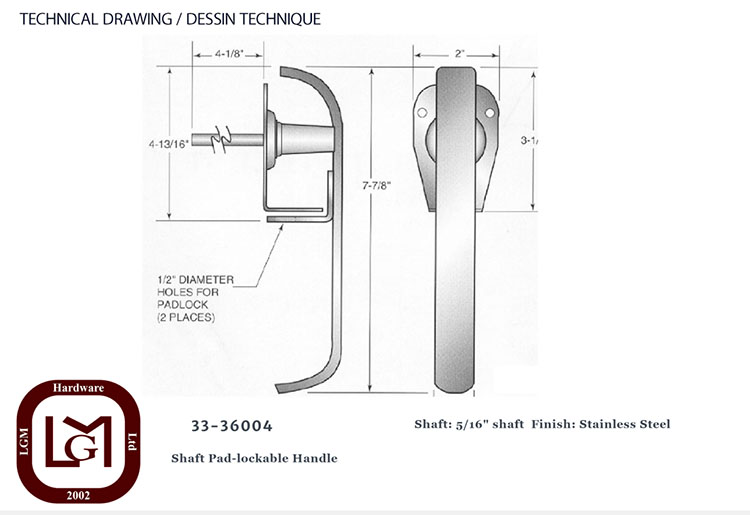

33 36004 Technical Drawing
Click photo to make Larger.
44-21303can be used without the locking plate "L" Handle Chrome plated Non-locking Pad lockable RH1.5’ CC

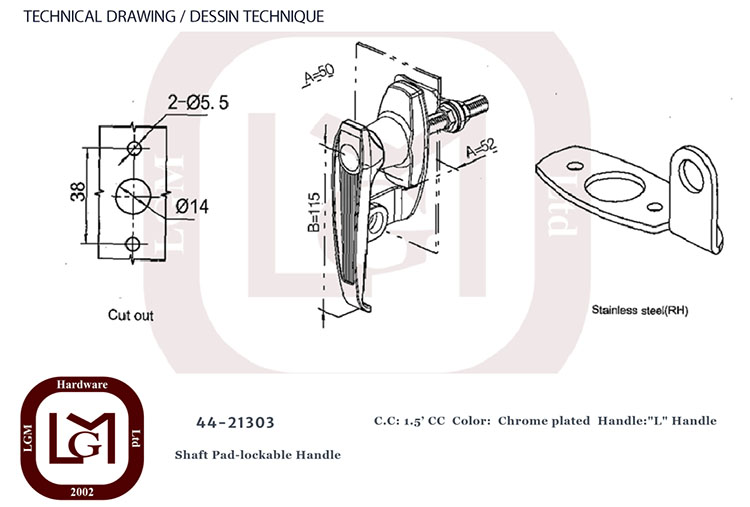

44 21303 Technical Drawing
Click photo to make Larger.



Additional information

Item #

33-20003, 33-30003, 33-34502, 33-36004, 33-56004, 44-21303
