Plastic Vents

35 10104 Product Round Louvered Vent And Round Butterfly Vent
33 80405 Product Aluminum Vent

See table and image below for details.

Item # 33-81208, 33-81608, 33-81907, 33-82107 Categories: ,

Description

Product #Color:A:B:C:Description:Technical Drawing:

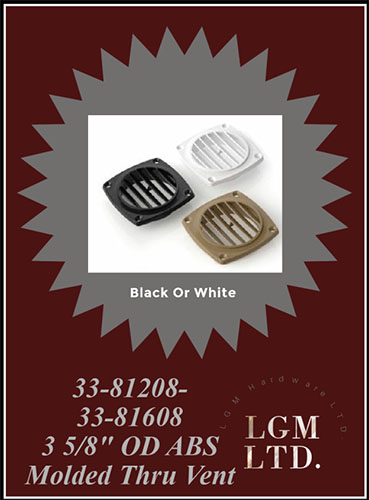

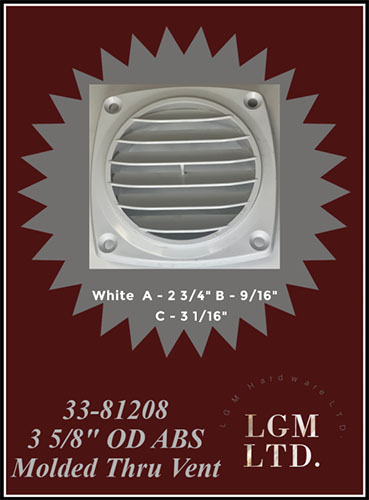

33-81208White2 3/4"
9/16"3 1/16"3 5/8" OD ABS Molded Thru Vent

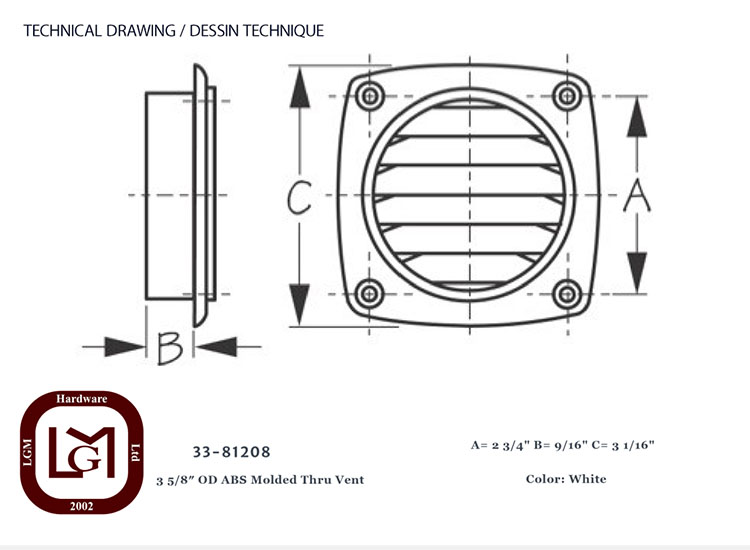

33 81208 Technical Drawing
Click photo to make larger
33-81608Black2 3/4"
9/16"3 1/16"3 5/8" OD ABS Molded Thru Vent

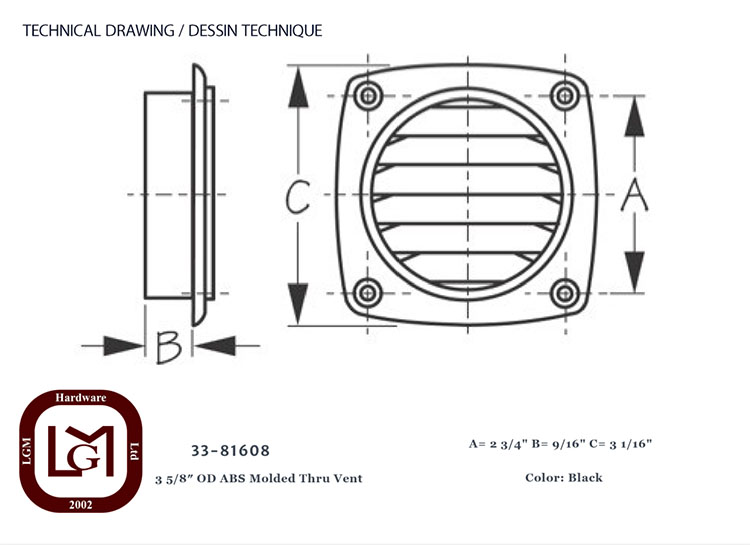

33 81608 Technical Drawing
Click photo to make larger
33-81907Black Plastic Vent with Round Inside and Outside Vent Cap

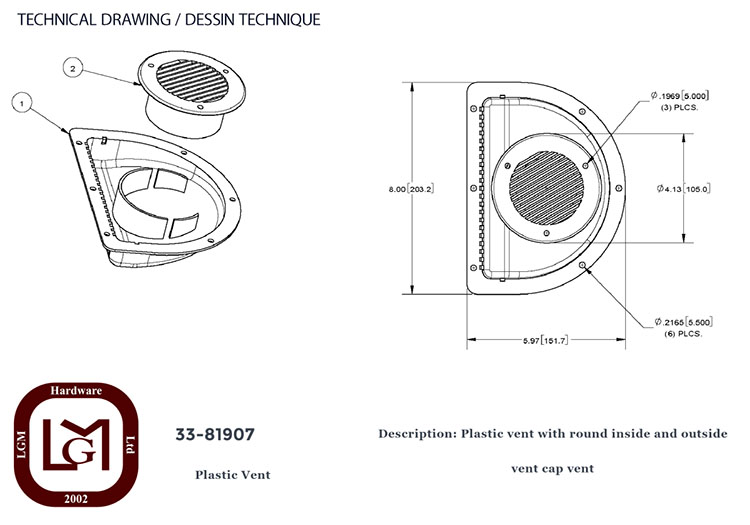

33 81907 Technical Drawing
Click photo to make larger
33-82107 WhitePlastic Vent with Round Inside and Outside Vent Cap
33 81907 Technical Drawing
Click photo to make larger





Additional information

Item #

33-81208, 33-81608, 33-81907
