| Product # | Type: | Dimensions: | Flash Patterns: | Technical Drawings: |
|---|---|---|---|---|

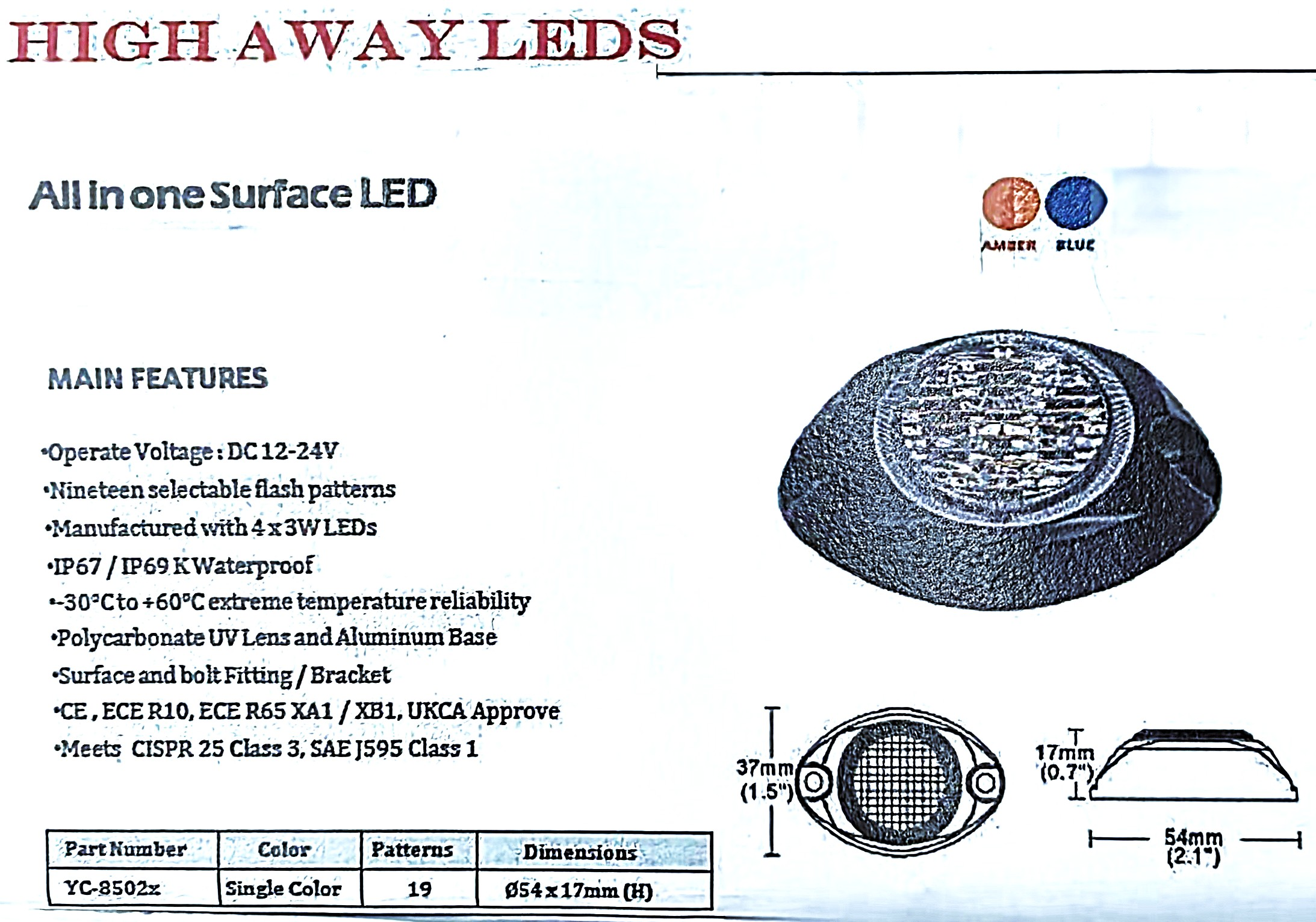

| 53-85028 | All in One Surface LED | 54 x 17mm ( 2.1" x 0.7" ) | 19 |  |

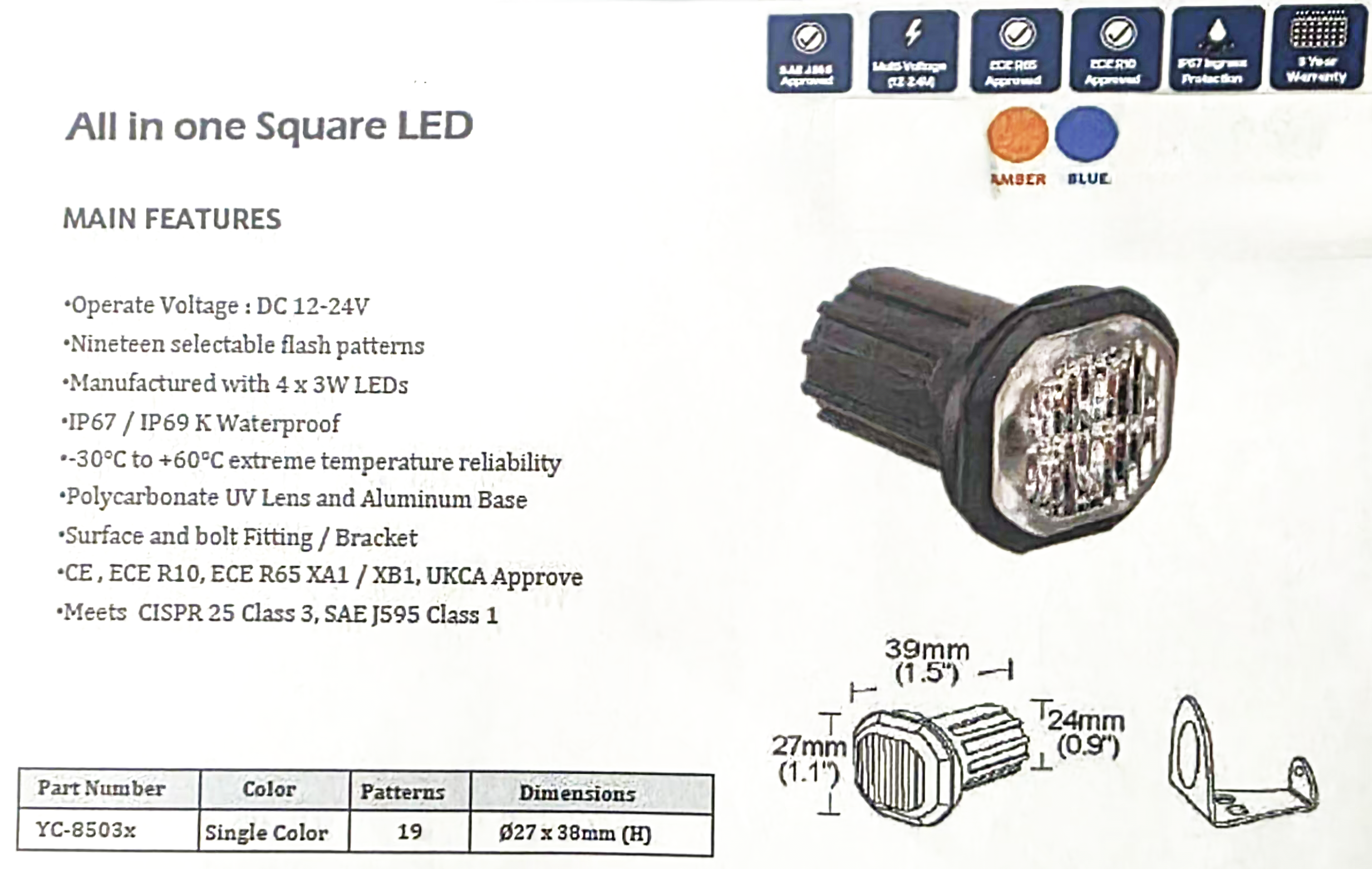

| 53-85438 | All in One Square LED | 27 x 38mm ( 1.1" x 1.5" ) | 19 |  |

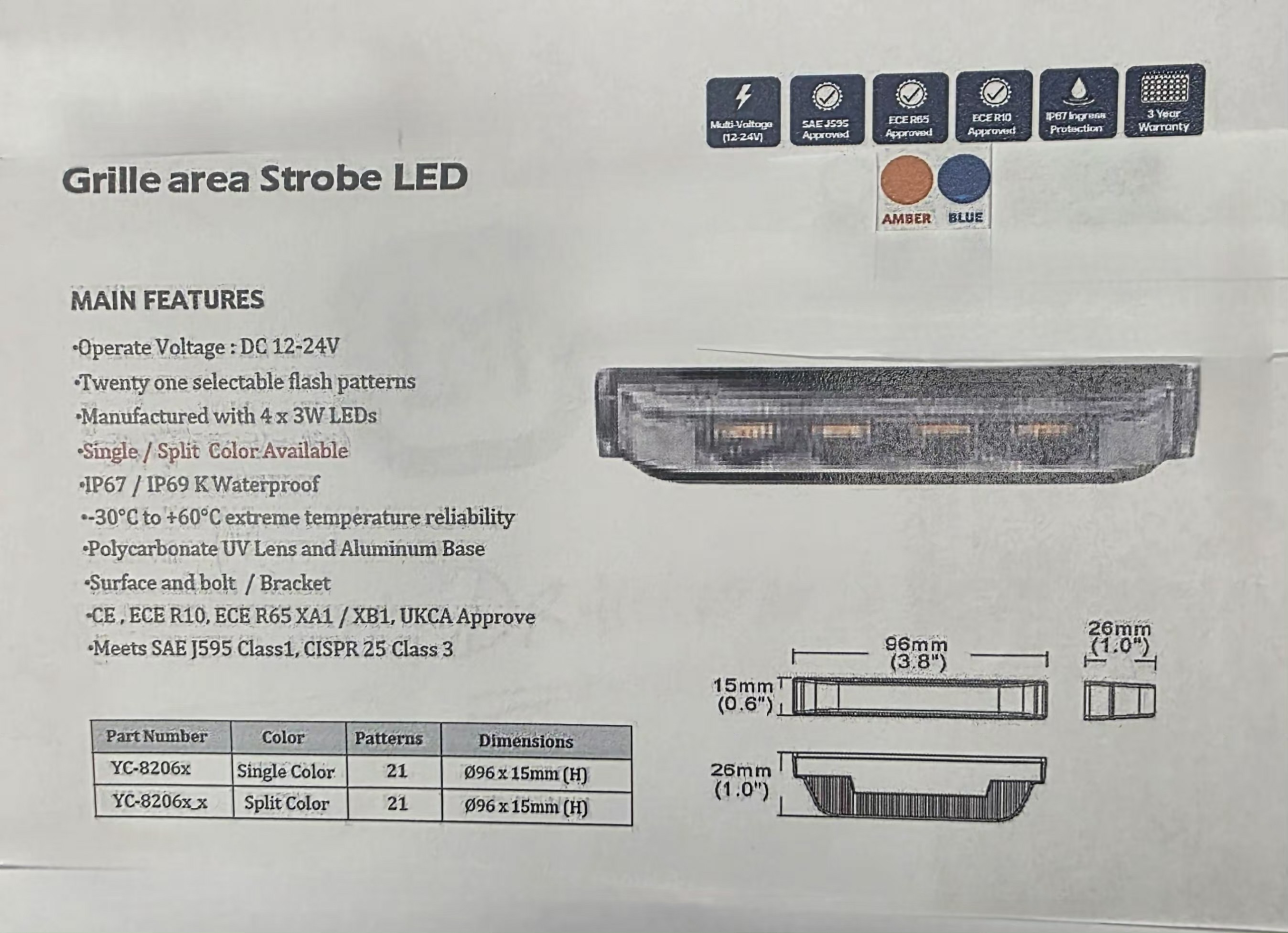

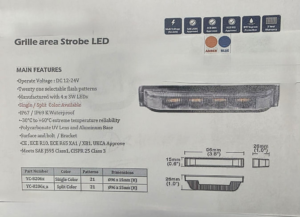

| 53-82068 | Grille Area Strobe LED | 96 x 15mm ( 3.8" x 0.6" ) | 21 |  |

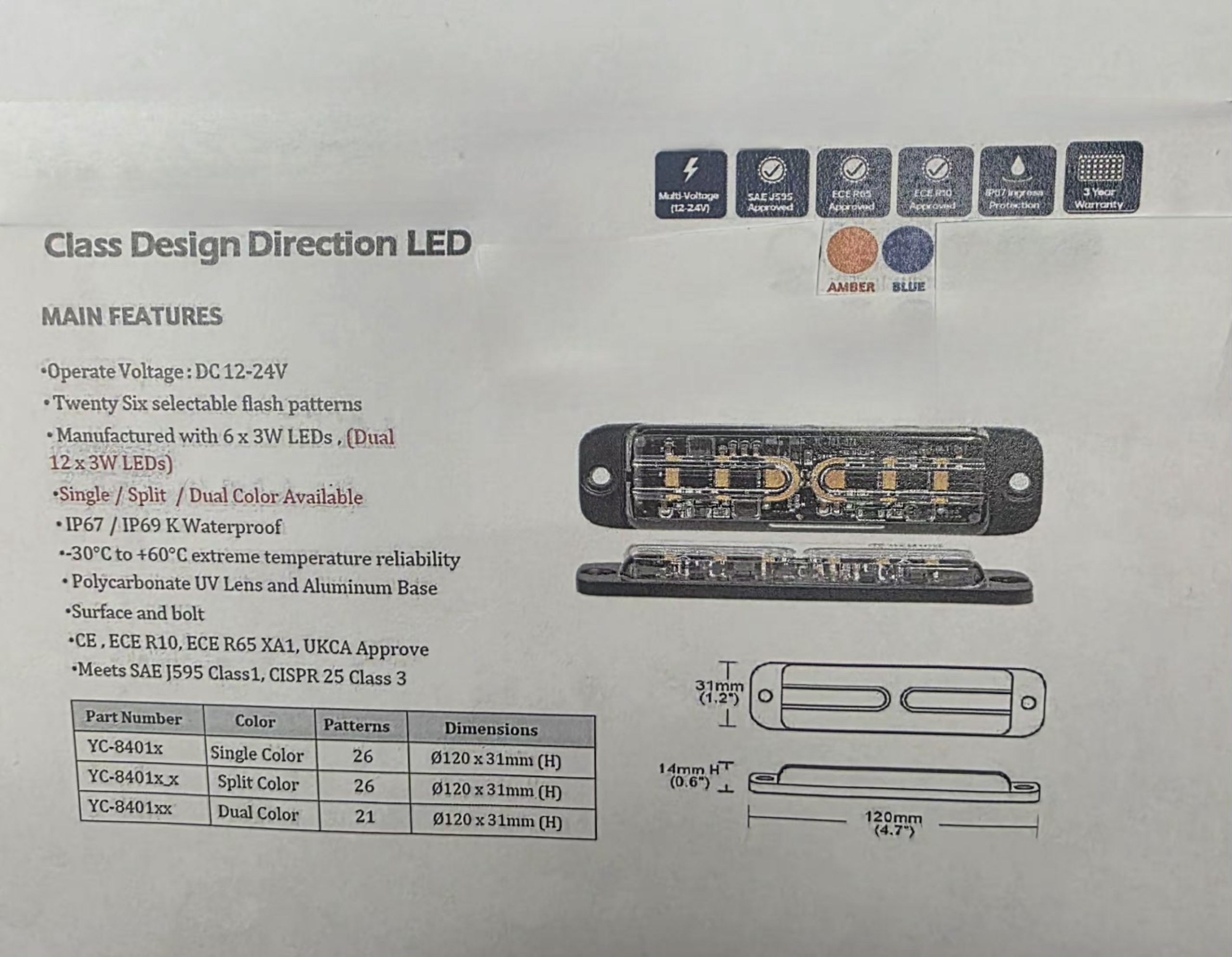

| 53-84018 | Class Design Direction LED | 120 x 31mm ( 4.7" x 1.2" ) | 26 |  |
| 53-86828 | 8" Micro Light Bar - Magnetic Mount | 200 x 180 x 50mm ( 7.9" x 7.1" x 1.9" ) | 26 |  |
| 53-86568 | 8" Micro Light Bar - Single Bolt Mount | 200 x 180 x 56mm ( 7.9" x 7.1" x 2.2" ) | 26 | |
Blue & Amber LED Lights – 53-85028, 53-85438, 53-82068, 53-84018
DC 12-24V. IP67 / IP69K waterproof, rated -30 degrees Celsius to +60 degrees Celsius. Polycarbonate UV lens with aluminum base. Surface and bolt fitting with bracket. CE ECE R65 XB1, UKCA approved. Meets SAE J595 Class 1 and CISPR 25 Class 3. Manufactured with 4 x 3W LEDs (53-84018: 6x 3W)

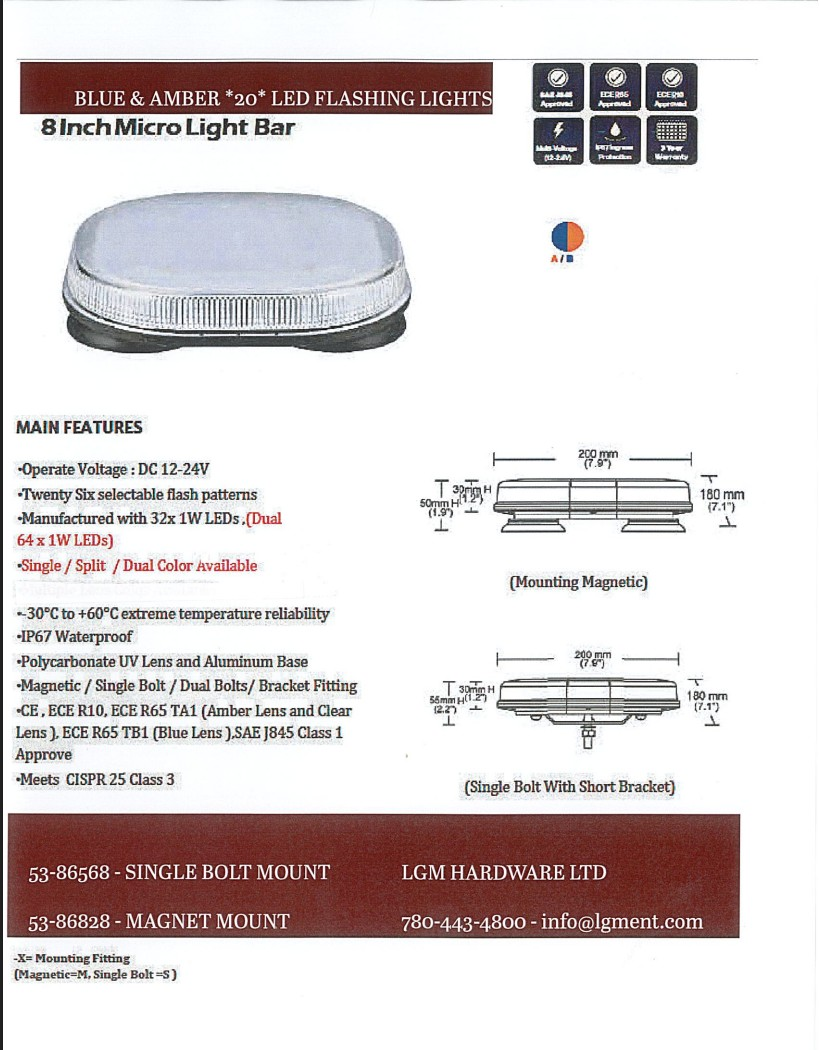

Blue & Amber 8″ Micro Light Bar – 53-86828, 53-86568
DC 12-24V. IP67 waterproof. Rated -30 degrees Celsius to +60 degrees Celsius. Polycarbonate UV lens with aluminum base. Magnetic or single bolt mount. 32 x 1w LEDs. CE, ECE R10, ECE R65, UKCA approved. SAE J845 Class 1, CISPR 25 Class 3.
