Die Cast Hinge – 4 Hole Mount (Black)

See below table for details.

Item # 11-55705 Categories: , , ,

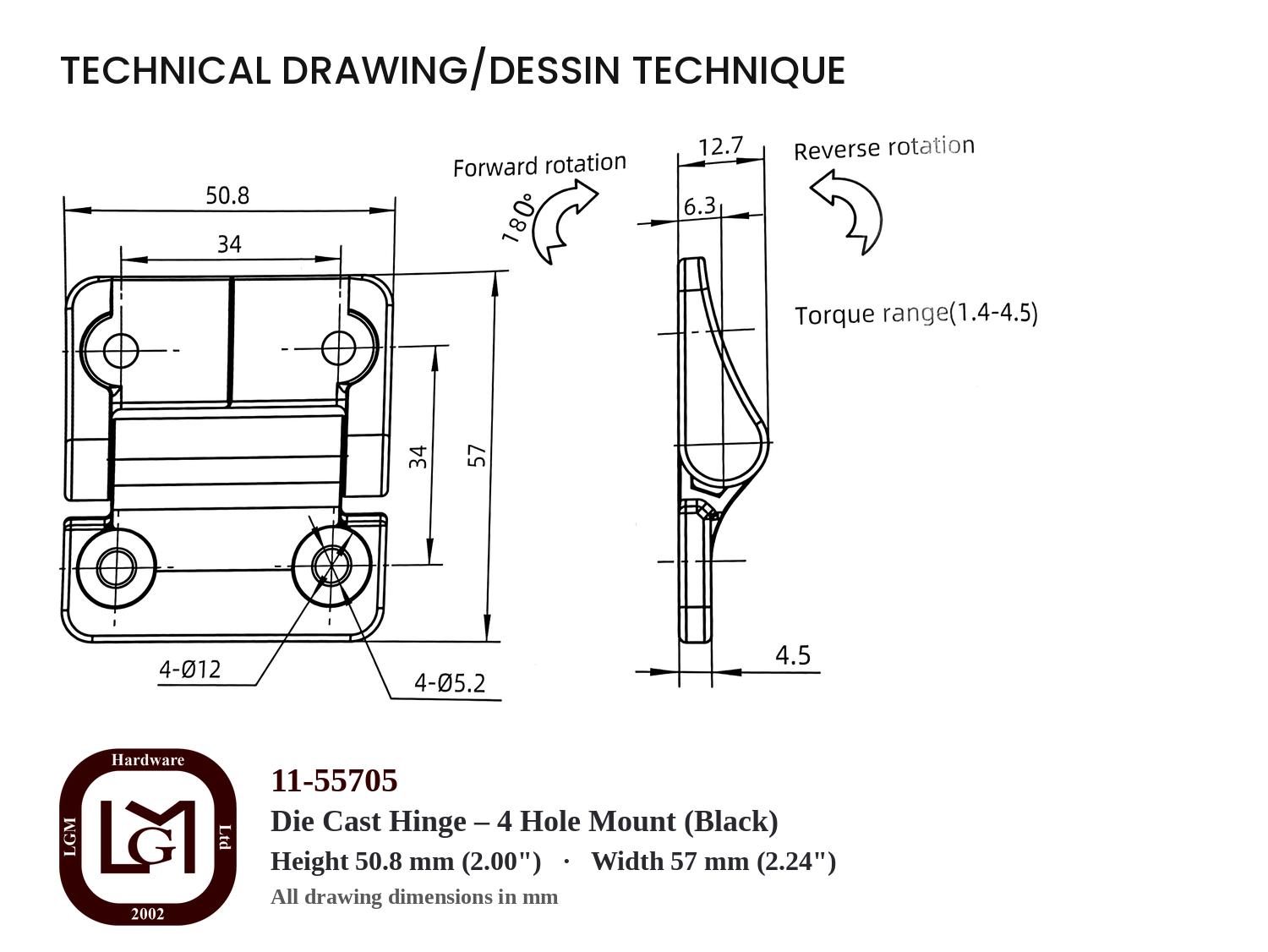

11-55705 Die Cast Hinge Technical Drawing
Click drawing to make larger

Product #Measurement:
11-55705Die Cast – Black
4 Hole Mount
Height: 50.8 mm (2.00")
Width: 57 mm (2.24")
