Heavy Duty Over Center Latch

44 20602 Product Over Center Latch
44 22104 Product Swivel Hasp – Stainless Steel

See below table for details.

Item # 44-09902, 44-09802, 44-16102, 44-00001, 44-00002, 44-09002, 44-09402, 44-09602, 44-10604, 44-11202, 44-11304, 44-13102, 44-13604, 44-14102, 44-14604, 44-16604, 44-17604, 44-19604, 44-22302, 44-22604, 44-12604, 44-11102 Categories: ,

Description

Product #Measurement:Material:Lock:Technical Drawing:

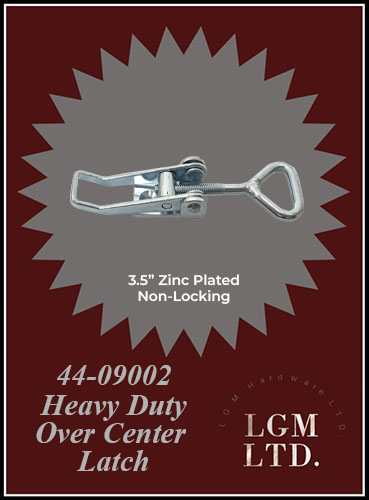

44-09002Length: 3.5"Zinc PlatedNon-locking

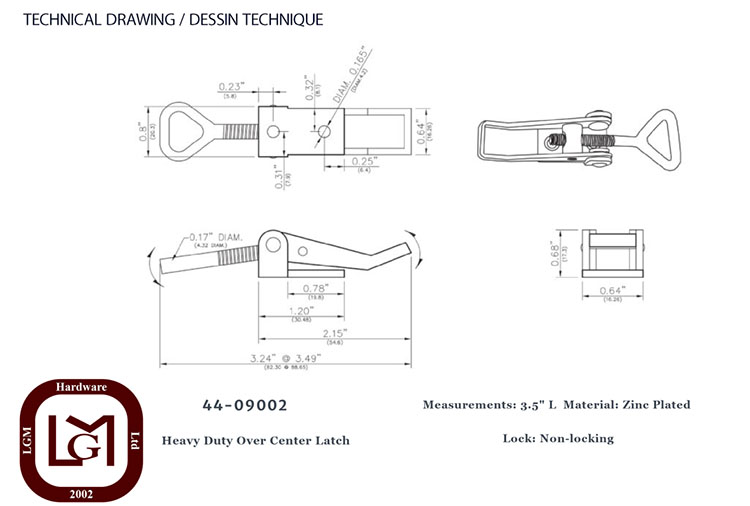

44 09002 Technical Drawing
Click photo to make larger

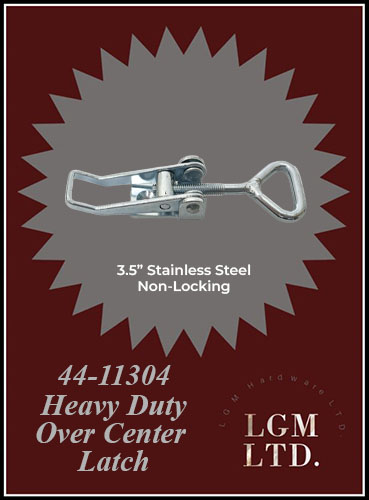

44-11304Length: 3.5"Stainless SteelNon-locking

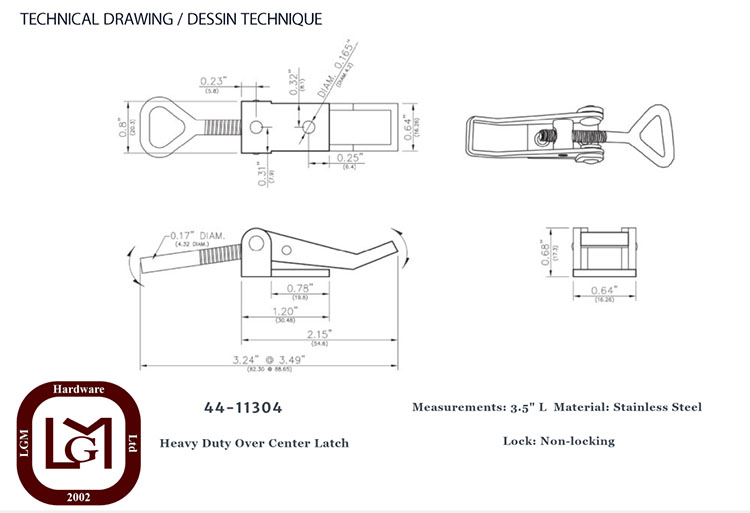

44 11304 Technical Drawing
Click photo to make larger

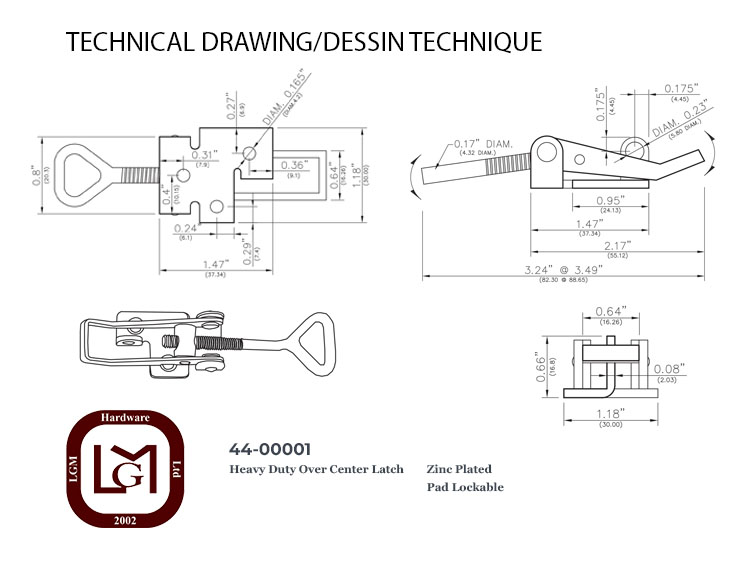

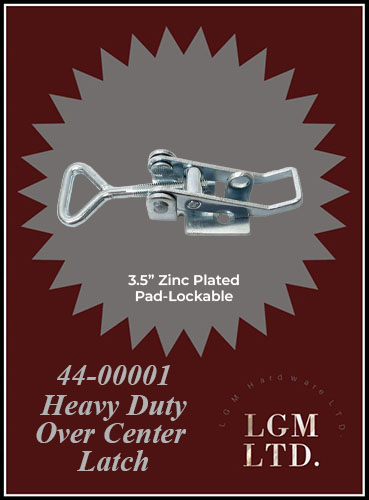

44-00001Length: 3.5"Zinc PlatedPad-lockable
44 00001 Technical Drawing
Click photo to make larger

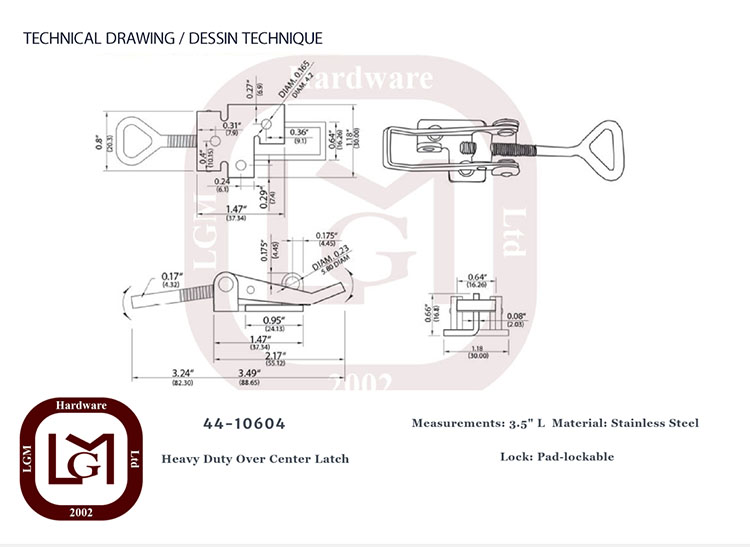

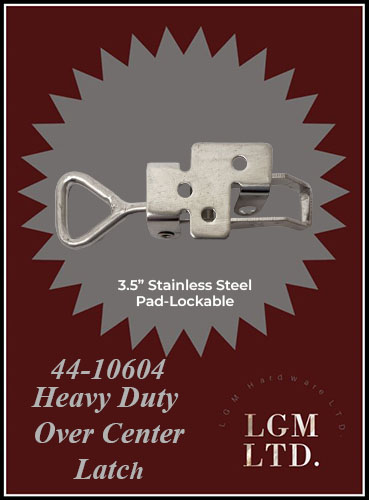

44-10604Length: 3.5"Stainless SteelPad-lockable
44 10604 Technical Drawing
Click photo to make larger

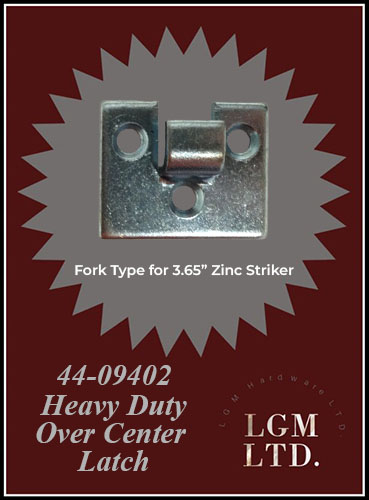

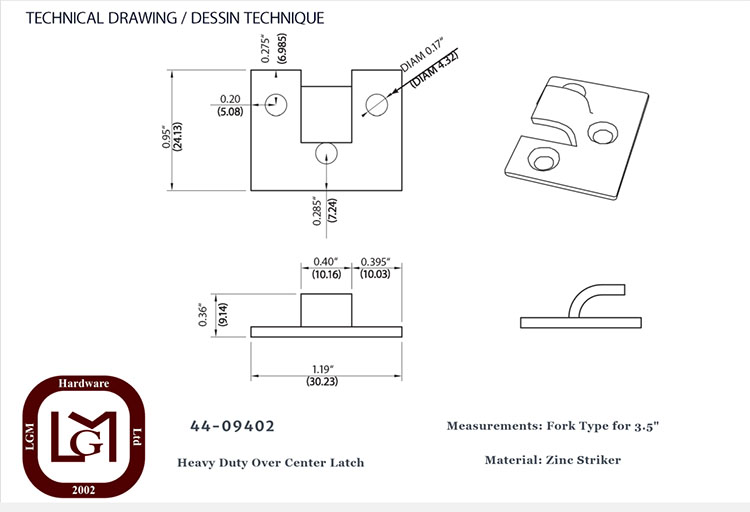

44-09402Fork Type for 3.5"Zinc Striker
44 09402 Technical Drawing
Click photo to make larger
44-12604Fork Type for 3.5"Stainless Steel Striker

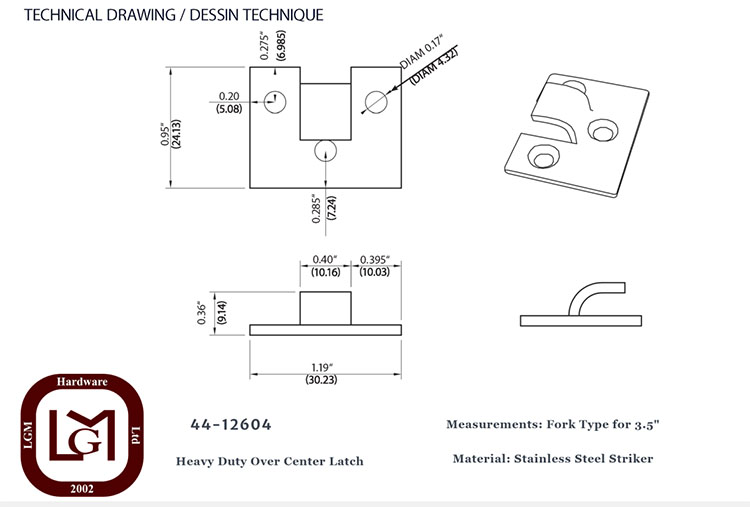

44 12604 Technical Drawing
Click photo to make larger.

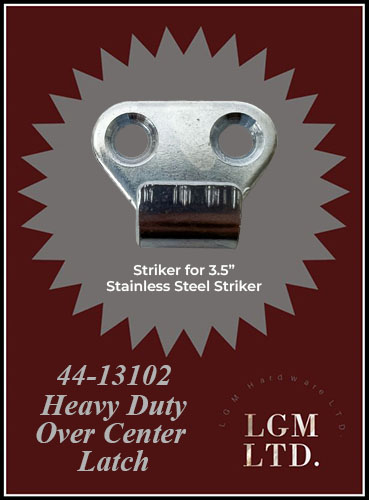

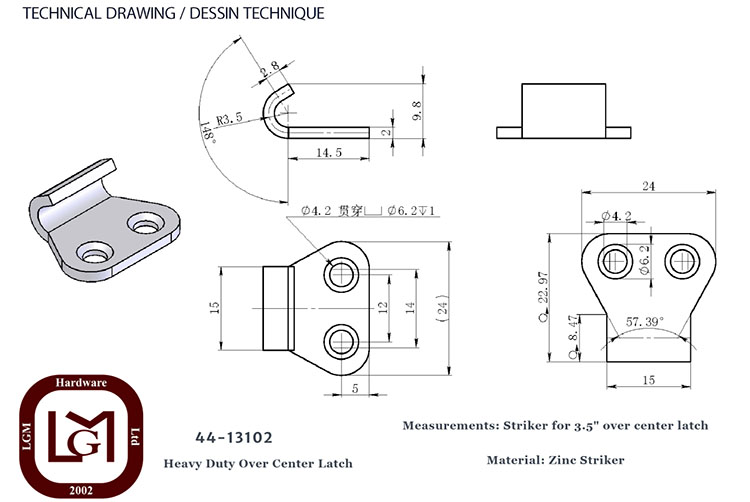

44-13102Striker for 3.5" Over Center LatchZinc Striker
44 13102 Technical Drawing
Click photo to make larger

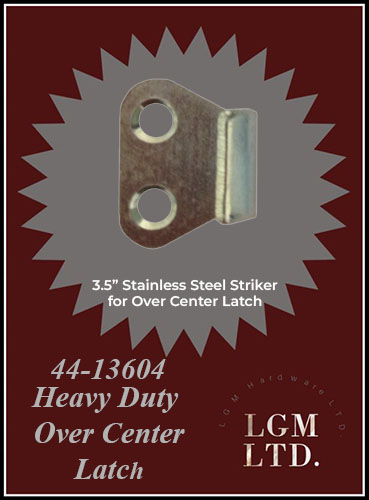

44-13604Striker for 3.5" Over Center LatchStainless Steel Striker

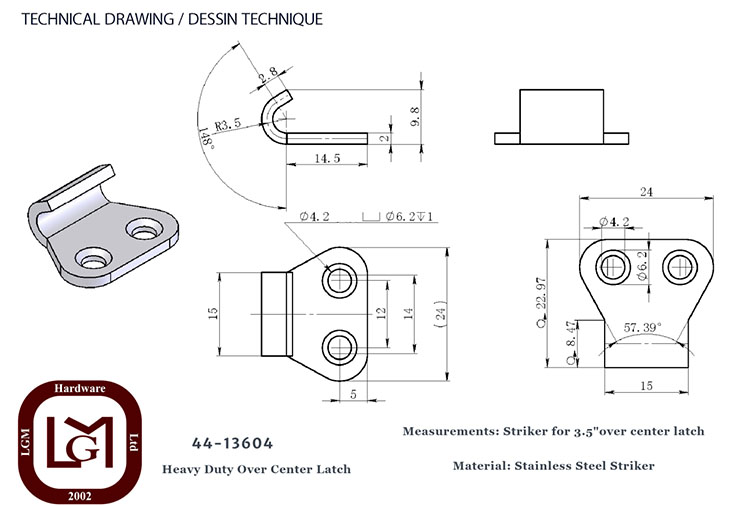

44 13604 Tehnical Drawing
Click photo to make larger

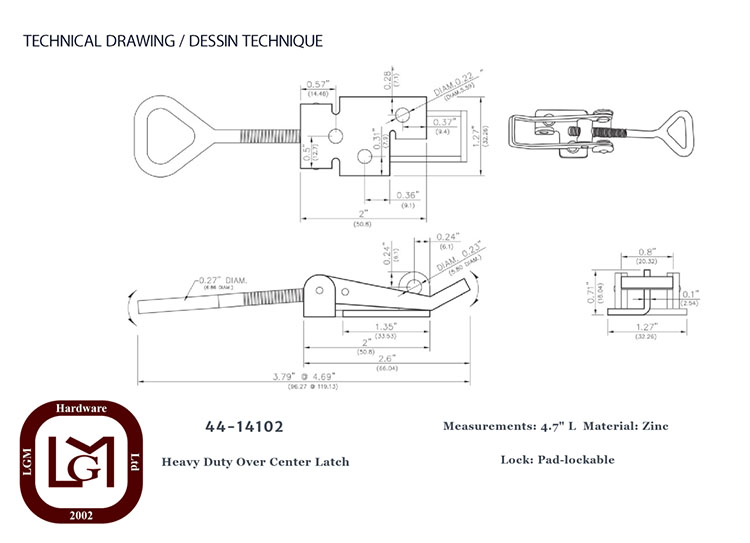

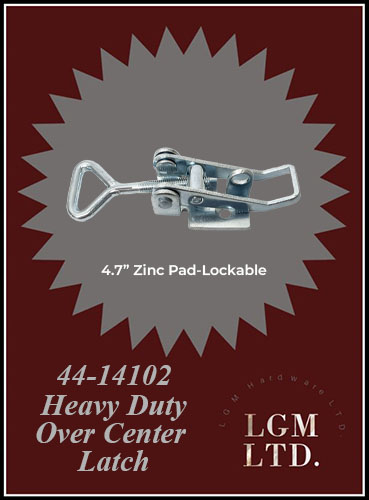

44-14102Length: 4.7"Zinc Pad-lockable
44 14102 Technical Drawing
Click photo to make larger

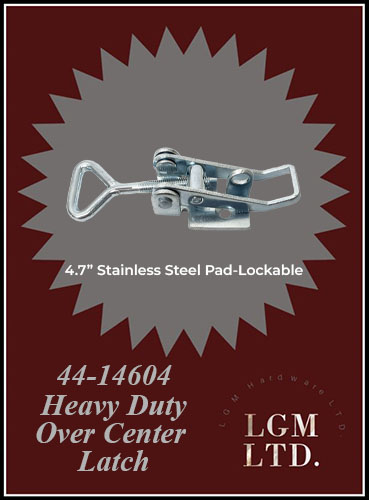

44-14604Length: 4.7"Stainless Steel Pad-lockable
44 10604 Technical Drawing
Click photo to make larger
44 14604 Technical Drawing Copy
Click photo to make larger

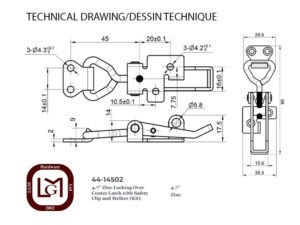

44-14502Length: 4.7"Zinc with Striker and Safety Latch

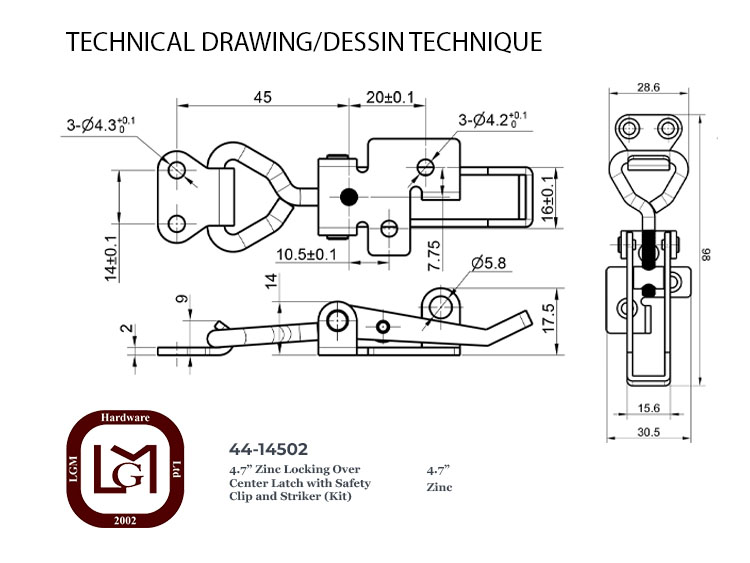

44 14502 Technical Drawing
Click to make image larger

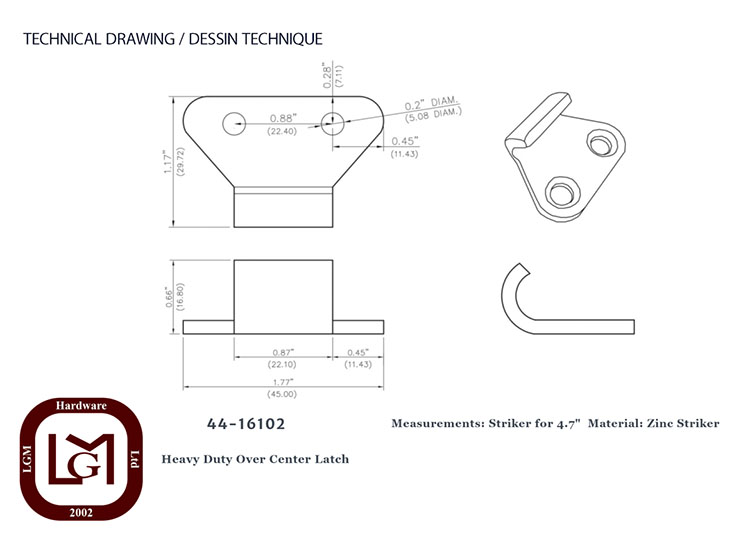

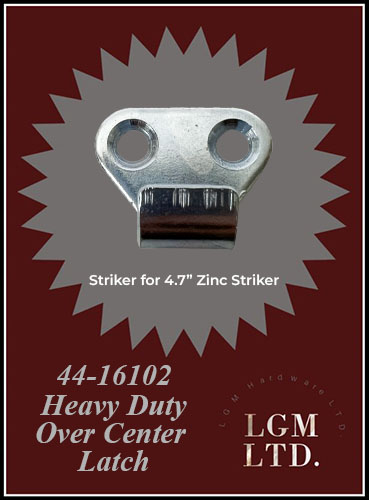

44-16102Striker for 4.7"Zinc Striker
44 16102 Technical Drawing
Click photo to make larger

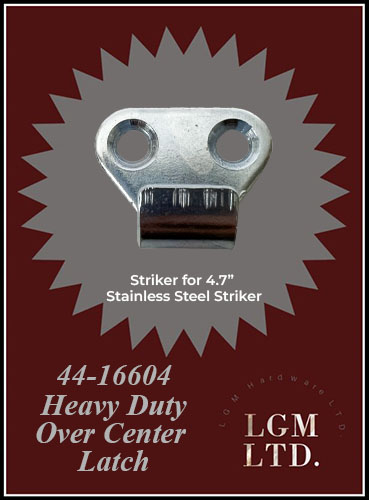

44-16604Striker for 4.7"Stainless Steel Striker

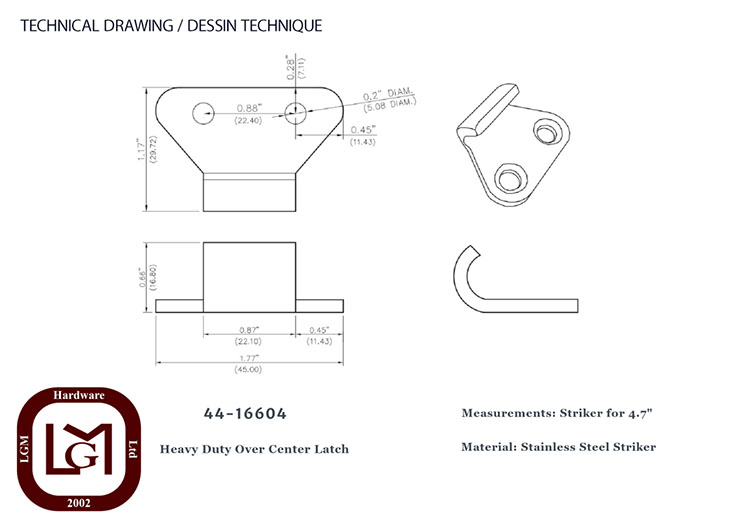

44 16604 Technical Drawing
Click photo to make larger

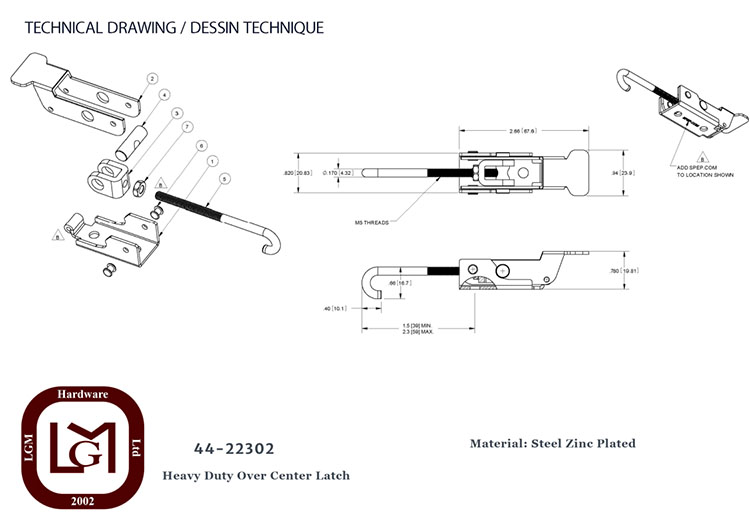

44-22302SteelZinc Plated
44 22302 Technical Drawing
Click photo to make larger

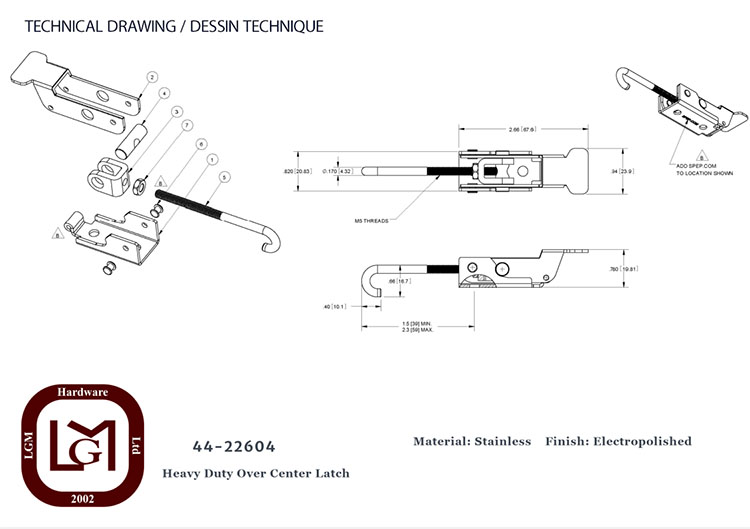

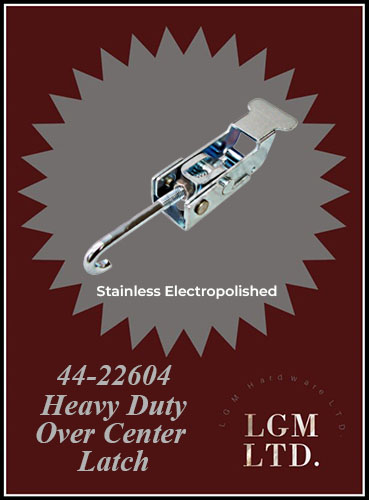

44-22604StainlessElectropolished
44 22604 Technical Drawing
Click photo to make larger

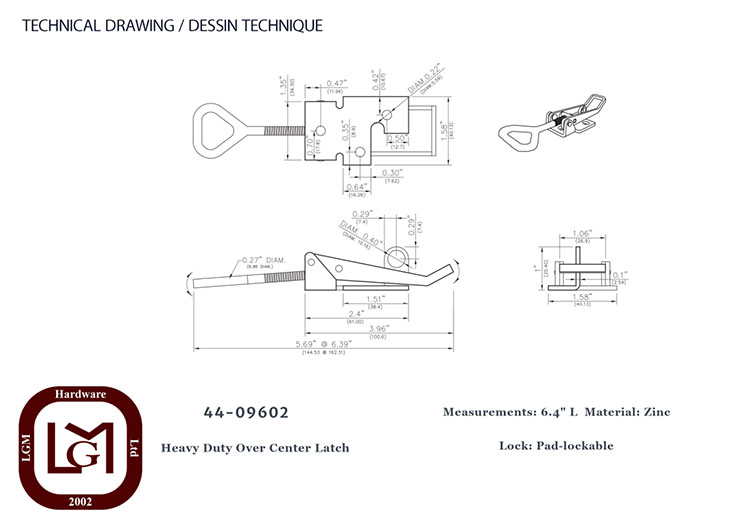

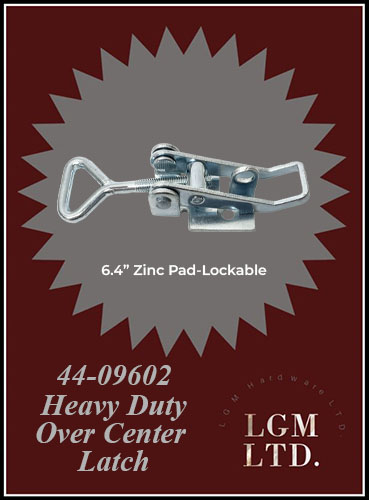

44-09602Length: 6.4"Zinc Pad-lockable
44 09602 Technical Drawing
Click photo to make larger

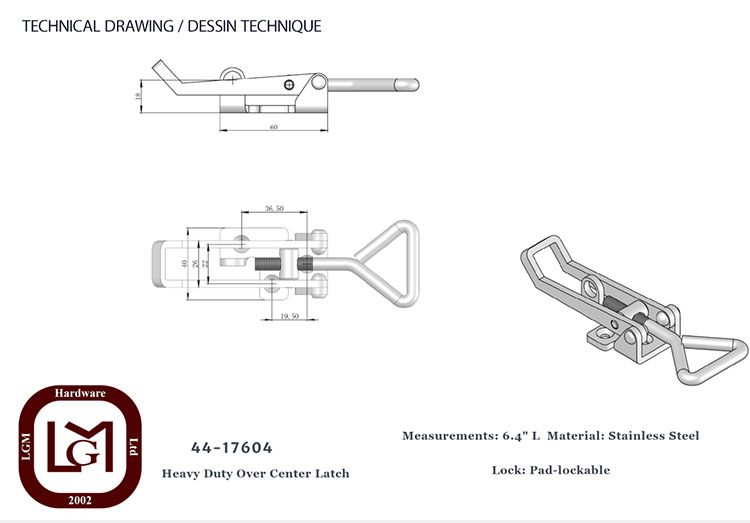

44-17604Length: 6.4"Stainless Steel Pad-lockable
44 17604 Technical Drawing
Click photo to make larger
44-09902Length: 6.4"Zinc Non-lockable

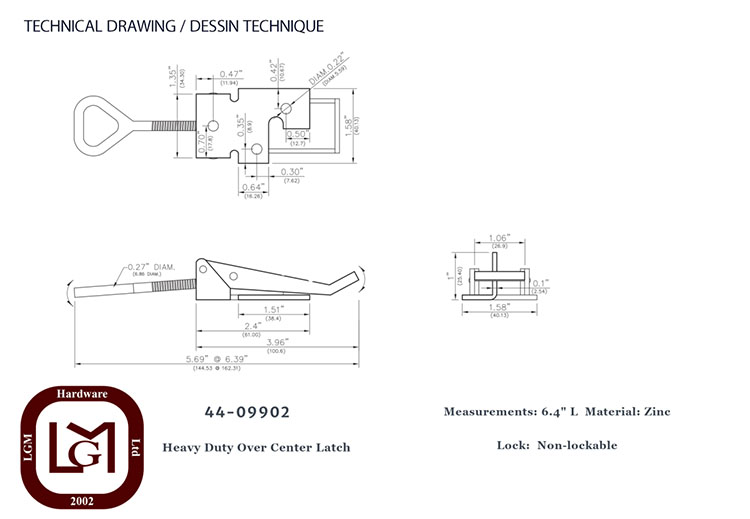

44 09902 Technical Drawing
Click photo to make larger

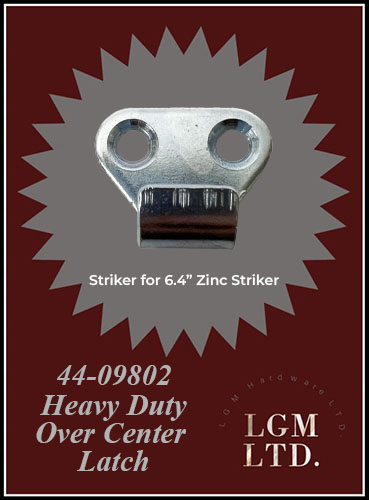

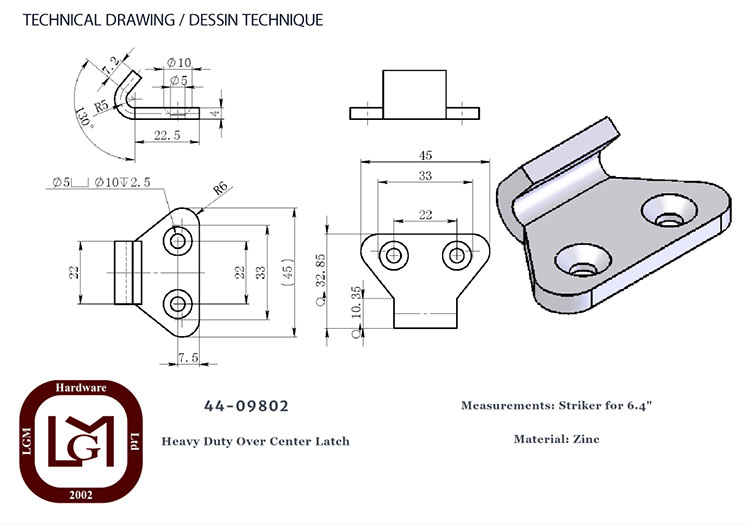

44-09802Striker for 6.4"Zinc
44 09802 Technical Drawing
Click photo to make larger

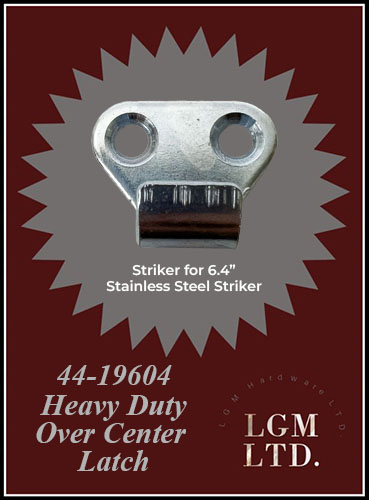

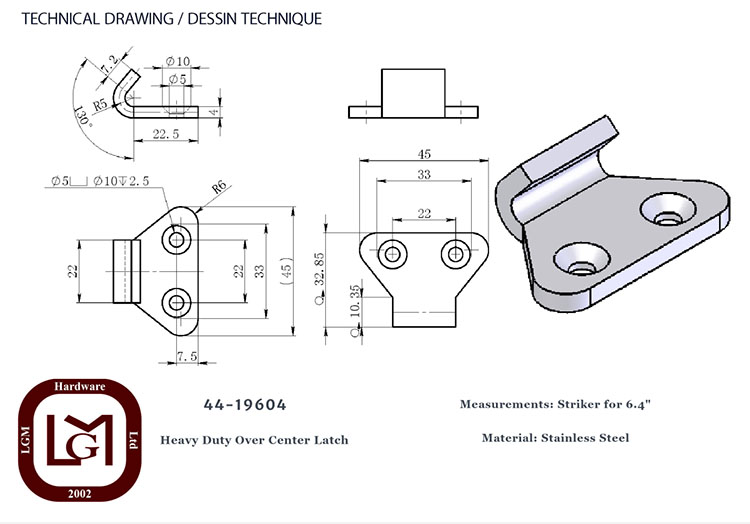

44-19604Striker for 6.4"Stainless Steel
44 19604 Technical Drawing
Click photo to make larger

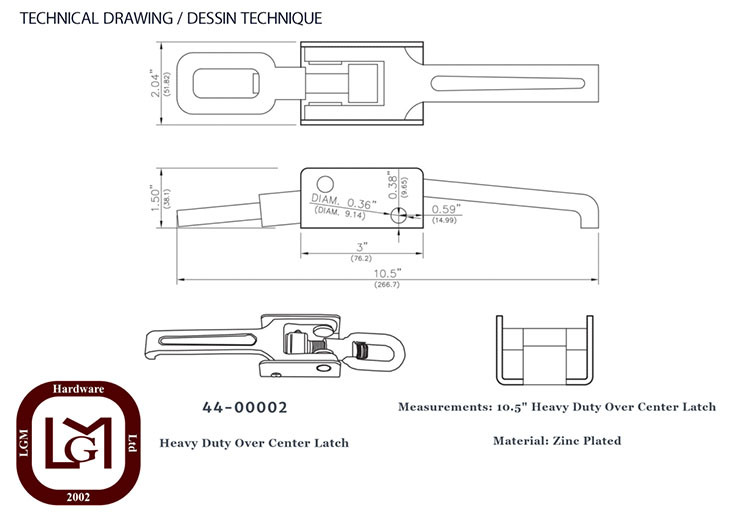

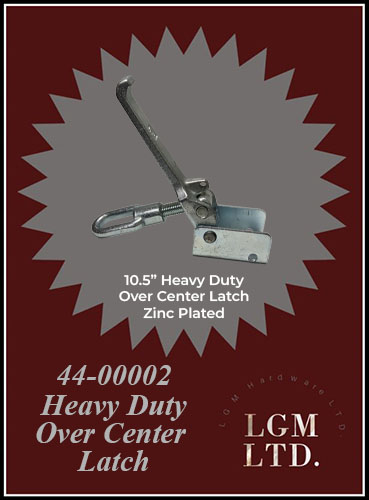

44-0000210.5" Heavy Duty Over Center Latch Zinc Plated
44 00002 Technical Drawing
Click photo to make larger

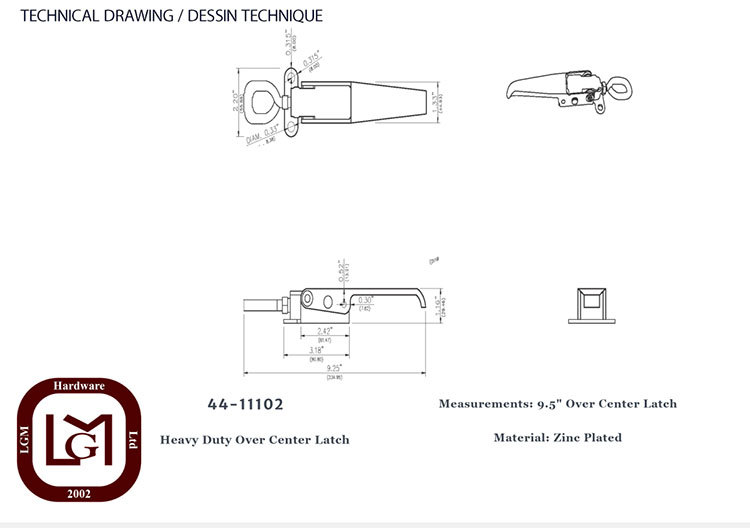

44-111029.5" Over Center Latch Zinc Plated
44 11102 Technical Drawing
Click photo to make larger

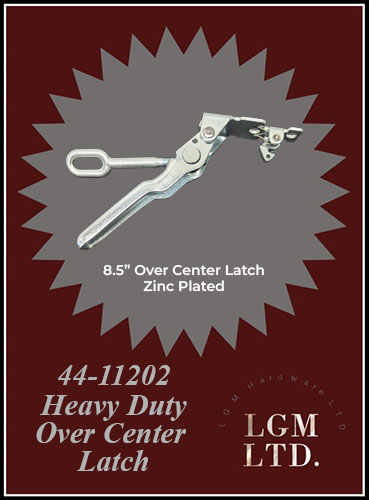

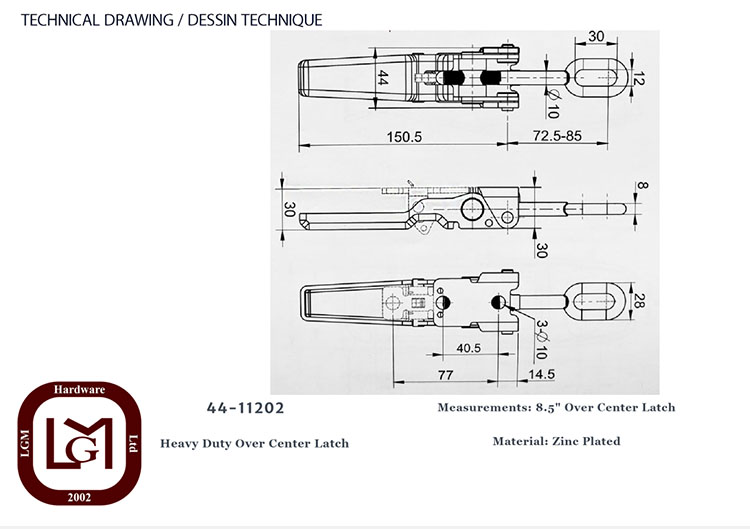

44-112028.5" Over Center LatchZinc Plated
44 11202 Technical Drawing
Click photo to make larger

Additional information

Item #

44-00002, 44-11102, 44-11202
