Hydraulic Cylinder – 3000PSI – Black

80 80902 80 81442 Product Telescopic Cylinders – Black
38 13900 Product Image Heavy Duty Hydraulic Jack – Black Painted – 15000lbs
Item # 80-90100, 80-90300 Categories: ,

Description

Product Number:Product Description:Specs:Technical Drawing:
80-90100Hydraulic Cylinder - 3000PSI - Black - 16" Stroke - 1.25" RodInner Diameter: 50.8mm
Rod Diameter: 31.75mm
Stroke: 406.4mm
Working Pressure: 3000PSI
Test Pressure: 3750PSI
80 90100 Technical Drawing
Click image to make larger
80-90300Hydraulic Cylinder - 3000PSI - Black - 18" Stroke - 1.5" RodRod Diameter: 1.5"
Stroke: 18"
Working Pressure: 3000PSI

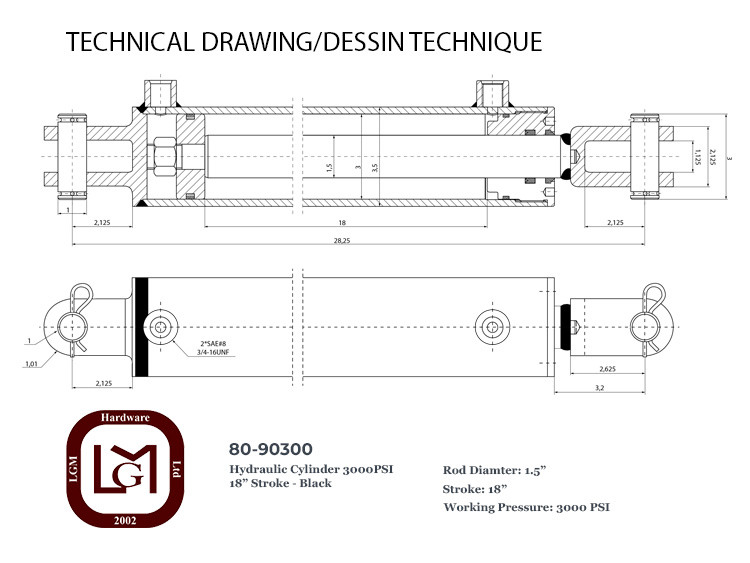

80 90300 Technical Drawing
Click to make image larger

Tool Boxes

Product NumberProduct Description
31-15406Aluminum Tool Box with Hydraulic Pump - 1/2" Hose - 7 Gallon Tank - 4.5 AMP Charger - 2 Button Joystick - Bluetooth Fob
31-15506Aluminum Tool Box with Hydraulic Pump - 1/2" Hose - 7 Gallon Tank - 4.5 AMP Charger - 4 Button Joystick - Bluetooth Fob
31-15606Aluminum Tool Box with Hydraulic Pump - 1/2" Hose - 3 Gallon Tank - 4.5 AMP Charger - 2 Button Joystick - Bluetooth Fob
31-15706Aluminum Tool Box with Hydraulic Pump - 1/2" Hose - 1 Gallon Tank - 4.5 AMP Charger - 2 Button Joystick - Bluetooth Fob
