4.75″ X 3.625″ Junior Paddle Handle

33 50604 33 50004 Picture 3.25″ X 3.25″ Mini Paddle Handles
44 21207 Picture Push Button Latches

See table below for details.

SKU: 33-53502, 33-52104, 33-57002, 33-55404, 33-69202, 33-69402, 33-69302, 33-69502, 33-69602, 33-69702, 33-69802, 33-69902, 33-69002, 33-66802, 33-66902 Categories: ,

Description

Product #Material:Lock:Mount:Technical Drawing:
33-53502Zinc Plated Key LockingWith 4 Mounting Holes

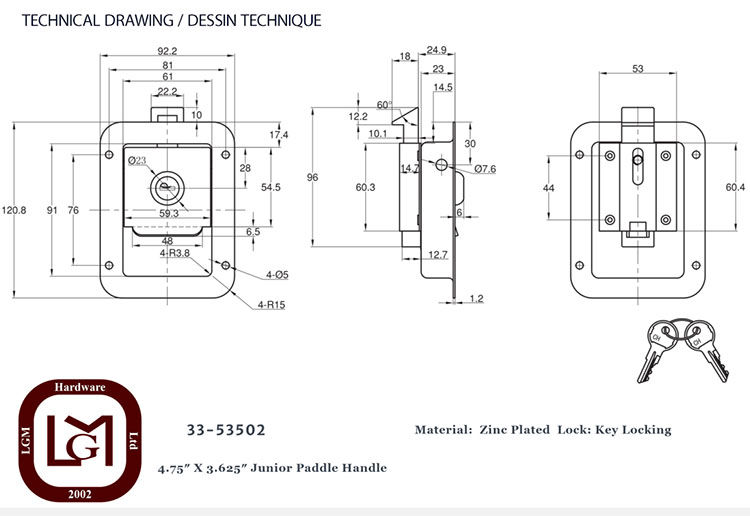

33 53502 Technical Drawing
Click photo to make larger
33-52104Stainless Steel Key LockingWith 4 Mounting Holes
33 52104 Technical Drawing
Click photo to make larger
33-57002Zinc Plated Non-LockingWith 4 Mounting Holes

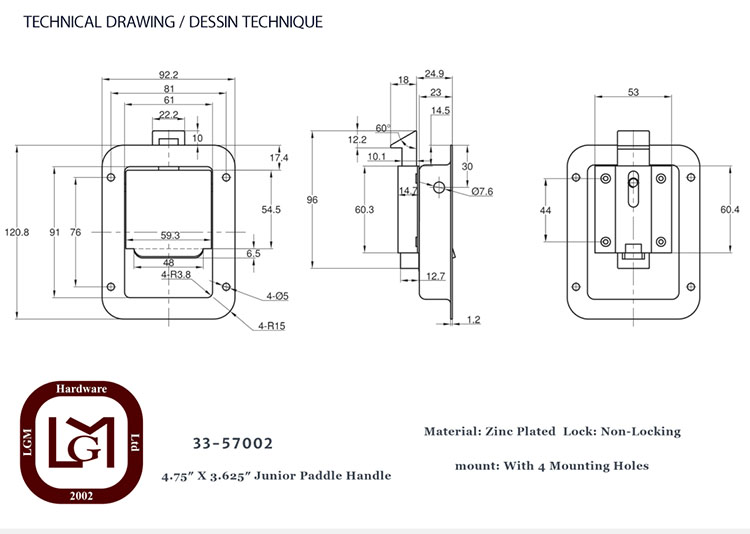

33 57002 Technical Drawing
Click photo to make larger
33-55404Stainless Steel Non-LockingWith 4 Mounting Holes

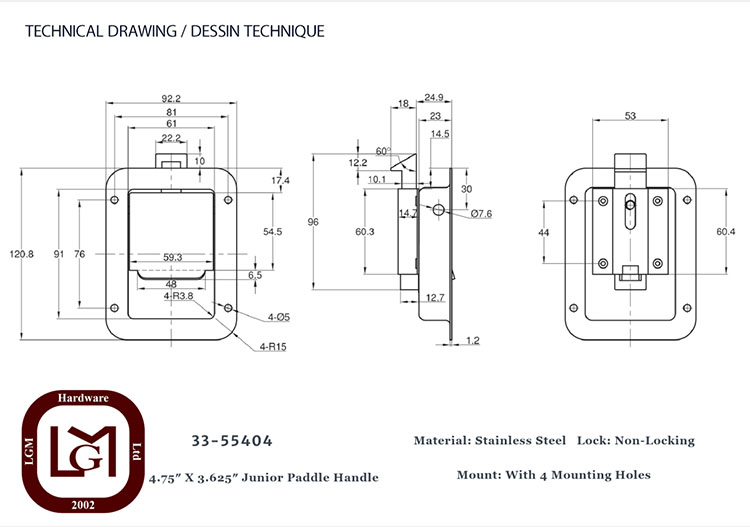

33 55404 Technical Drawing
Click photo to make larger



Product #Description:Extra:
33-69202CH501Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-69402CH502Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-69302CH503Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-69502CH504Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-69602CH505Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-69702CH506Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-69802CH507Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-69902CH508Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-69002CH509Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-66802CH510Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
33-66902CH545Replacement Cylinder for Junior Paddle
Handles and Tool Box Locks
7/8" High with 15/16" Cam

Additional information

Item #

33-52104, 33-53502, 33-55404, 33-57002, 33-66802, 33-66902, 33-69002, 33-69202, 33-69302, 33-69402, 33-69502, 33-69602, 33-69702, 33-69802, 33-69902
