5.5″ X 4.25″ Large Paddle Handle

33 27404 Picture SS Locking “D” Ring Handles
33 61506 33 61706 Picture 5.5″ X 4.25″ Pivoting Compartment Latch

See table below for details.

SKU: 33-32302, 33-29104, 33-22502, 33-20104, 66-96506, 33-21106, 44-61902, 33-63852, 33-63952, 33-64002, 33-64202, 33-64402 Categories: ,

Description

Product #DescriptionLock:Technical Drawing:
33-32302Zinc Plated Non-locking

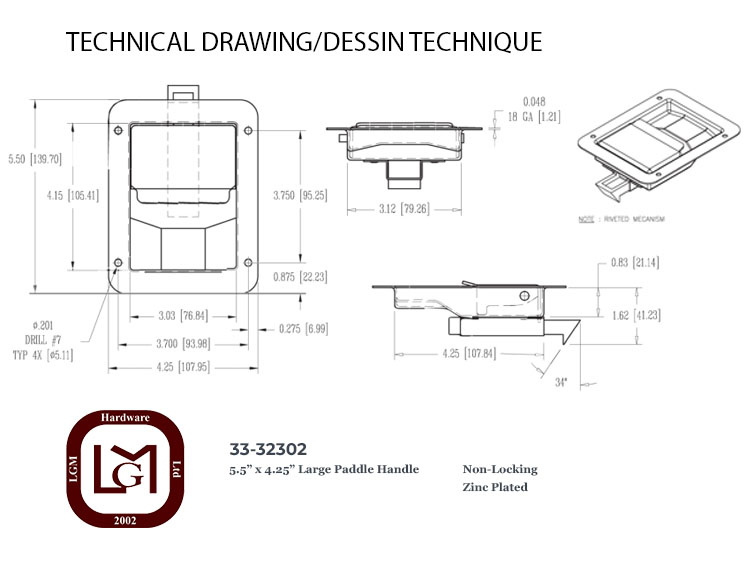

33 32302 Technical Drawing
Click photo to make Larger.
33-29104Stainless Steel Non-locking

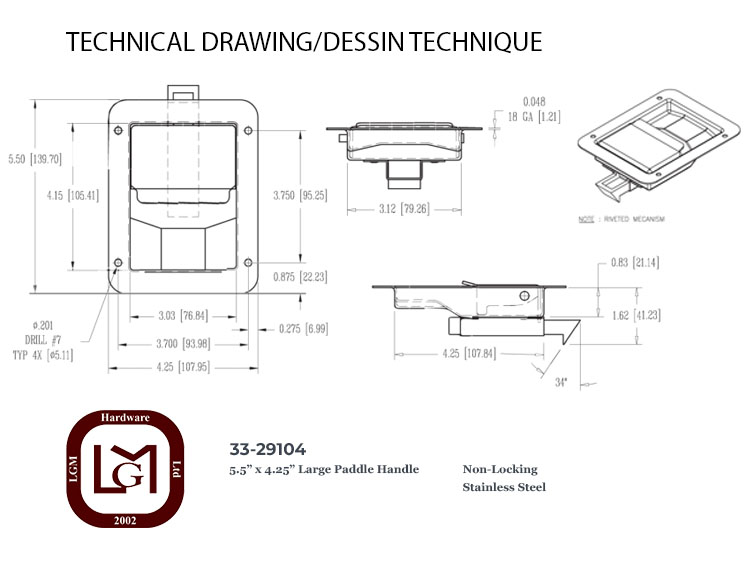

33 29104 Technical Drawing
Click photo to make Larger.
33-22502Zinc Plated Key Locking
33 22502 Technical Drawing
Click photo to make Larger.
33-20104Stainless Steel Key Locking

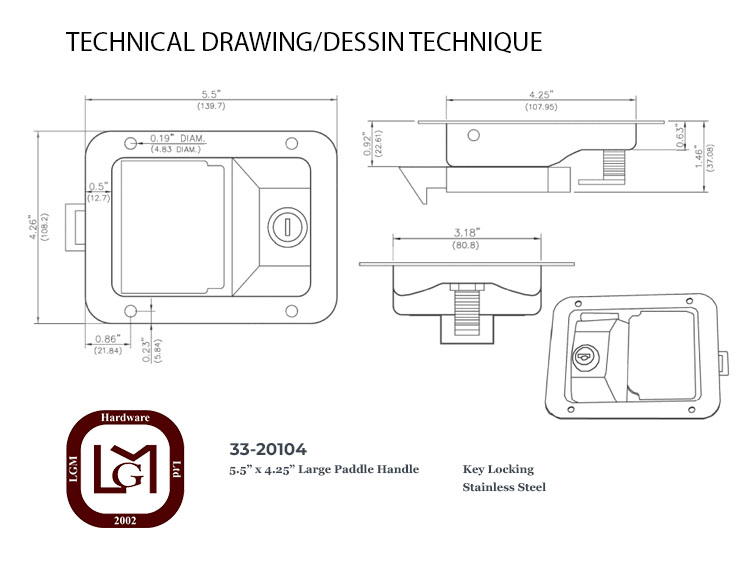

33 20104 Technical Drawing
Click photo to make Larger.

Replacement Parts:

Product #Description:
66-96506Rubber Gasket
33-21106Inside Release Knob
44-61902Zinc Striker



Replacement Cylinder for Large Paddle Handle
Item#		Description
33-63852CH501
33-63952CH502
33-64002CH503
33-64202CH504
33-64402CH505
* 1” High with 1.25” Cam

Additional information

Item #

33-20104, 33-21106, 33-22502, 33-29104, 33-32302, 33-63852, 33-63952, 33-64002, 33-64202, 33-64402, 44-61902, 66-96506
