5.5″ X 4.25″ Large Rotary Paddle Handle

33 48902 33 48504 Picture 2.63″ W X 2″ H Mini Paddle Handle
33 50604 33 50004 Picture 3.25″ X 3.25″ Mini Paddle Handles

See table below for details.

SKU: 33-41004, 33-41204, 33-49902 Categories: ,

Description

Product #Material:Lock:Description:Technical Drawing:
33-41004Stainless Steel Key-lockingWith Mounting Holes

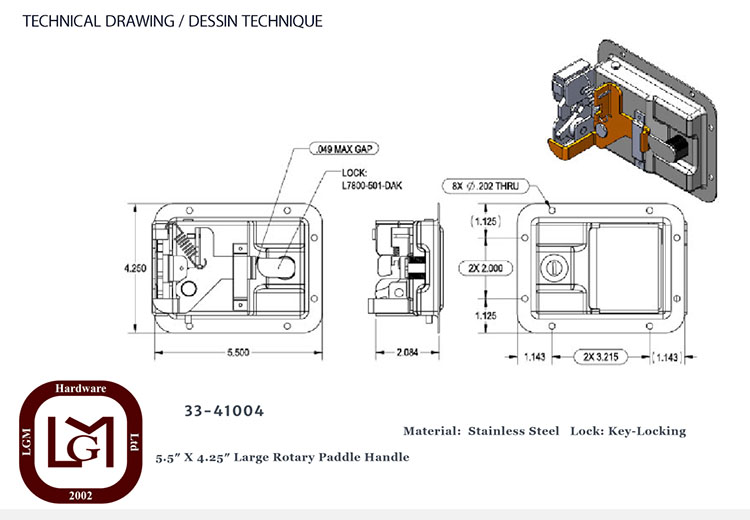

33 41004 Technical Drawing
Click photo to make larger
33-41204Stainless Steel Key-lockingWith Mounting Studs

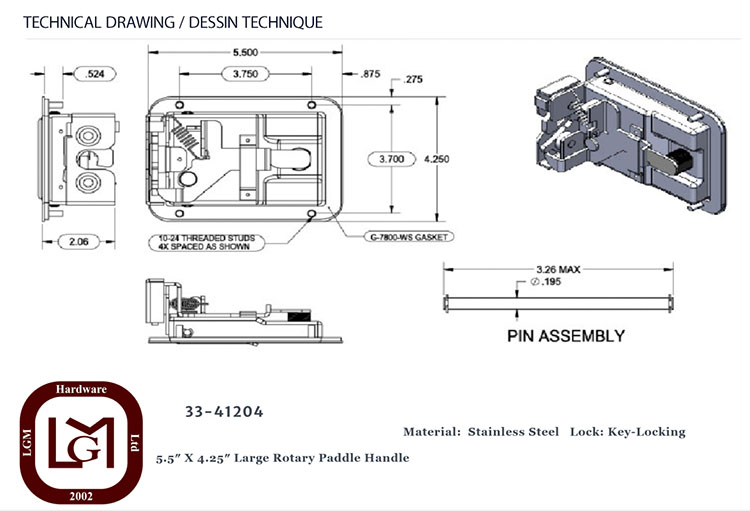

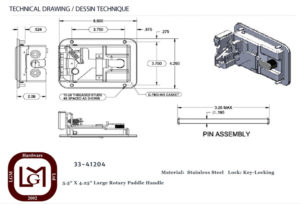

33 41204 Technical Drawing
Click photo to make larger

Replacement Parts:

Product #Material:Description:Technical Drawing:
33-49902Zinc PlatedStriker for Rotary Paddle

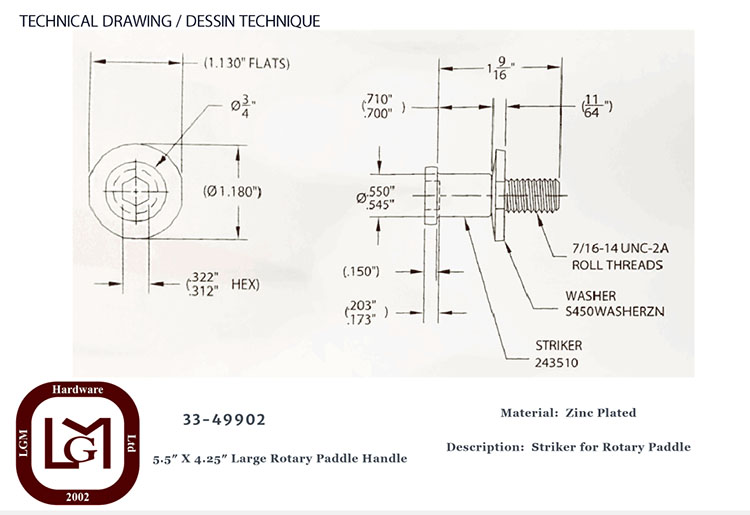

33 49902 Technical Drawing
Click photo to make larger





Additional information

Item #

33-41004, 33-41204, 33-49902
