Medium Duty Bar Lock for 3/4″ Pipe – Less Pipe

33 32402 Product Eberhard 1969 Bar Lock
33 75002 33 75302 Product Eberhard 7502 Bar Lock

See table below for details.

Item # 33-00615, 33-86302,33-86702, 33-86502, 33-31802, 66-36606, 33-25402, 33-86902, 33-87002, 33-80002, 33-00515 Categories: ,

Description

Product #Description:
33-44402Complete Lock - Less Pipe

REPLACEMENT PARTS:

Product #Description:Technical Drawing:

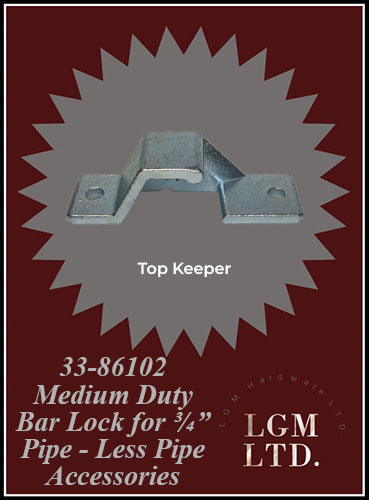

33-86102Top Keeper
33 86102 Technical Drawing
Click photo to make larger

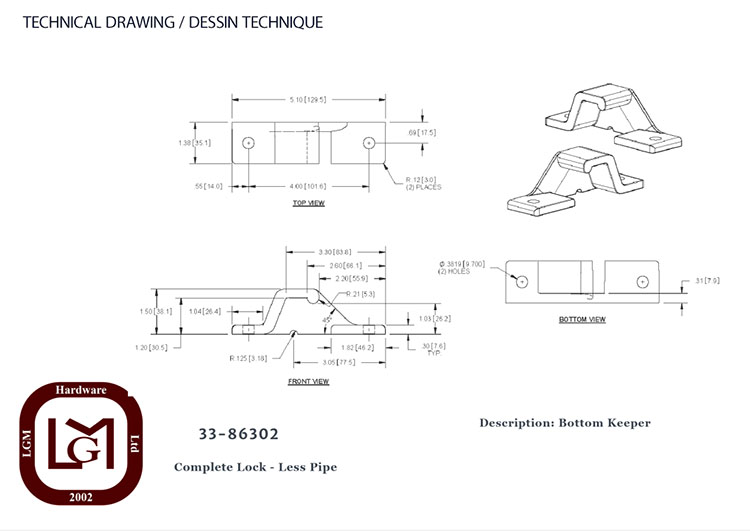

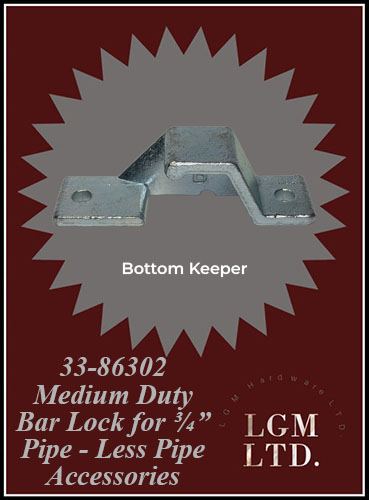

33-86302Bottom Keeper
33 86302 Technical Drawing
Click photo to make larger

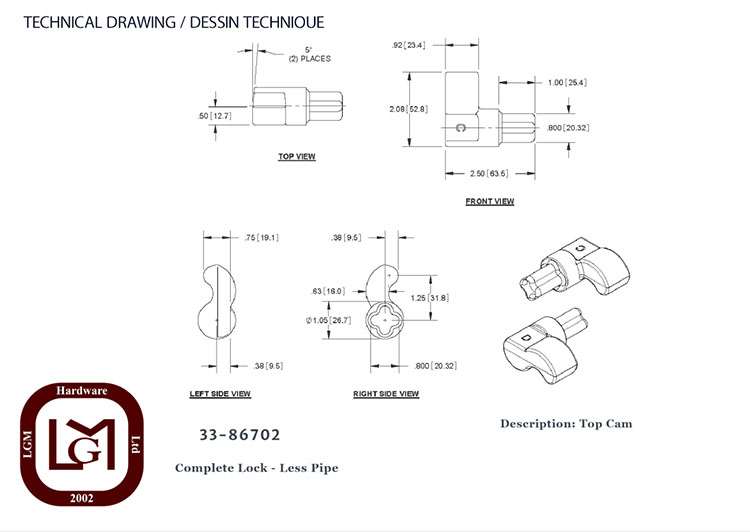

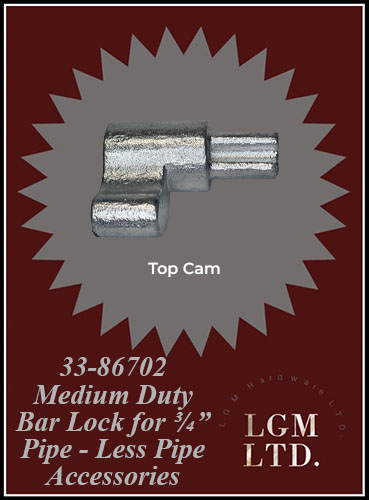

33-86702Top Cam
33 86702 Technical Drawing
Click photo to make larger

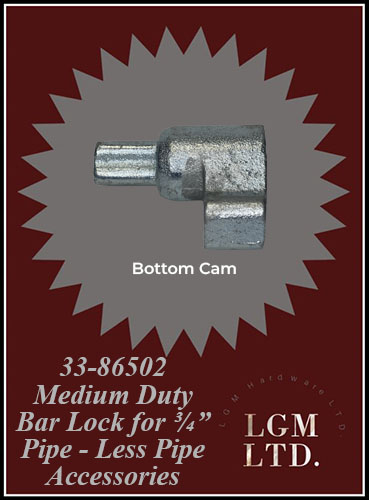

33-86502Bottom Cam
33 86502 Technical Drawing
Click photo to make larger

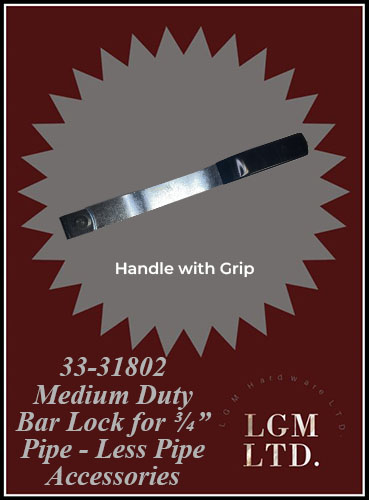

33-31802Handle With Grip
33 31802 Technical Drawing
Click photo to make larger

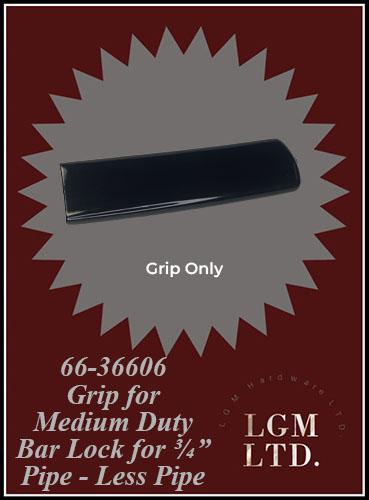

66-36606Grip Only
66 36606 Technical Drawing
Click photo to make larger

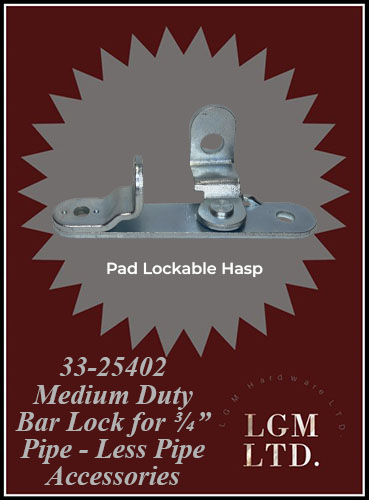

33-25402Pad Lockable Hasp
33 25402 Technical Drawing
Click photo to make larger

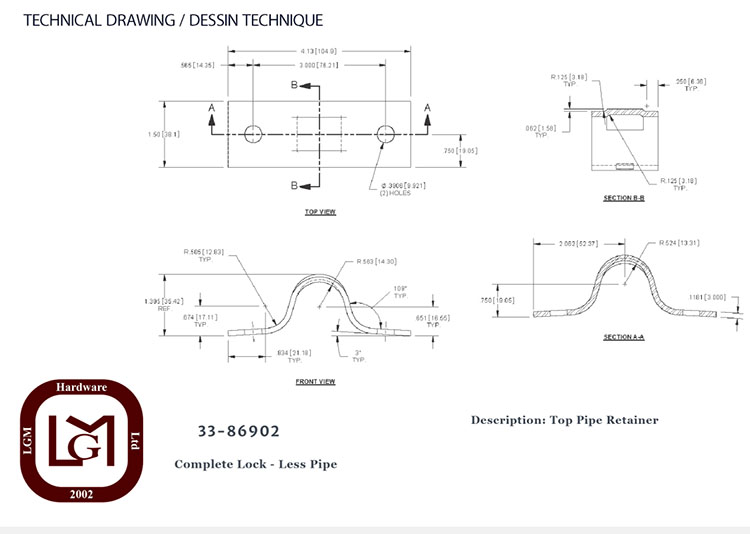

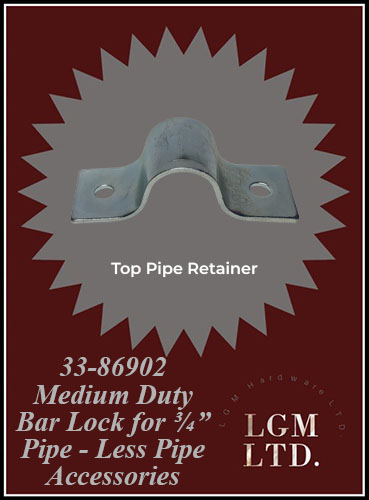

33-86902Top Pipe Retainer
33 86902 Technical Drawing
Click photo to make larger

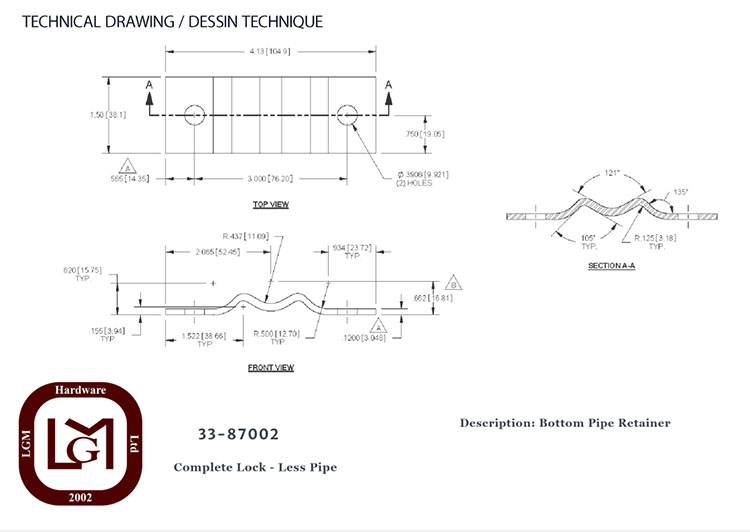

33-87002Bottom Pipe Retainer
33 87002 Technical Drawing
Click photo to make larger
33-80002Key Locking Pad Lockable Hasp

Key Locking Hasp:

Product #Color:Product Image:
33-00515Grey Cargo Vise Door Lock
33 00515 Picture
Click photo to make larger
33-00615Black Cargo Vise Door Lock
33 00615 Picture
Click photo to make larger





Additional information

Item #

33-00515, 33-00615, 33-25402, 33-31802, 33-44402, 33-80002, 33-86102, 33-86302, 33-86502, 33-86702, 33-86902, 33-87002, 66-36606
