57 22100 57 22300 Picture
57 22100 57 22300 Picture

Nylon Butt Connector

57 75100 57 75300 Picture Closed End Connector
57 20100 57 20300 Picture Vinyl Butt Connector

See table below for details.

Item # 57-22100, 57-22200, 57-22300 Categories: ,

Description

Product #Length (mm):Overall Diameter (mm):AWG:Color:Pack:Material:Max, electrical rating: Insulated material:
57-2210015mm4.2mm22-18Red100Copper1050C, 600 VoltsPolyamide (Nylon)
57-2220015mm4.8mm16-14Blue100Copper1050C, 600 VoltsPolyamide (Nylon)
57-2230015mm6.5mm12-10Yellow100Copper1050C, 600 VoltsPolyamide (Nylon)

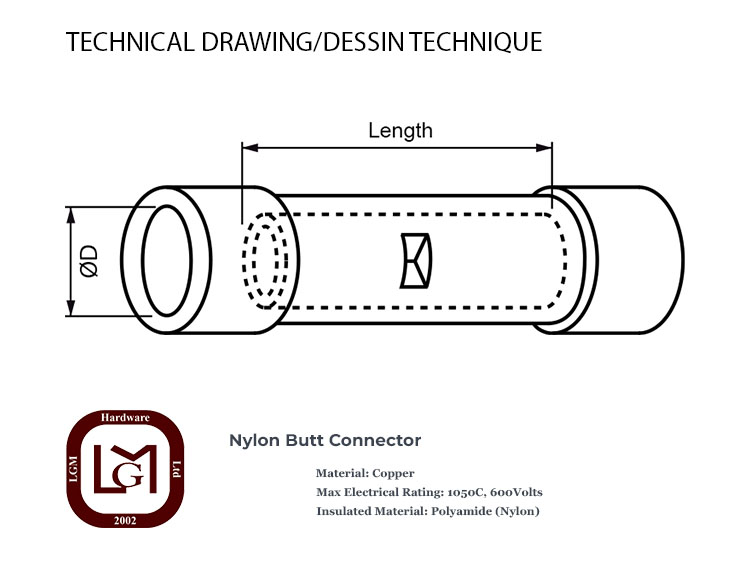

57 22100 57 22300 Technical Drawing

Additional information

Item #

57-22100, 57-22200, 57-22300
