Rectangle Lights

55 71708 55 71908 Picture Reflector with Adhesive Back – (Various Sizes and Models)
56 20508 Picture Polypropylene Split Loom
SKU: 54-62508, 54-62608, 54-62708, 54-62808, 54-62908, 54-63008, 54-63108, 54-53208 Categories: ,

Description

LED Working Lights

Product #Beam Optional:Size:EMC
Standard:		Certificates:Wattage:Specifications:Technical Drawing:
54-62508
Spot3.3"CISPR25
CLASS 4		ECE R10
CE
RoHs		20WPower: 2x10W OSRAM LED
Lumens: 1,600LM
Voltage: 9 - 32V
Waterproof & Dustproof:IP68
50,000 hours lifespan Die-cast aluminum housing
Durable polycarbonate lens Stainless steel hardware

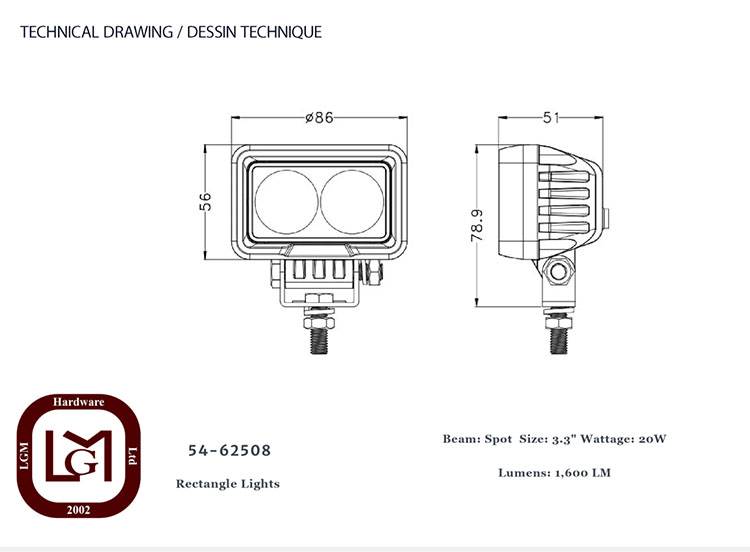

54 62508 Technical Drawing
Click photo to make Larger.
54-62608Flood3.3"CISPR25
CLASS 4		ECE R10
CE
RoHs		20WPower: 2x10W OSRAM LED
Lumens: 1,600LM
Voltage: 9 - 32V
Waterproof & Dustproof:IP68
50,000 hours lifespan Die-cast aluminum housing
Durable polycarbonate lens Stainless steel hardware

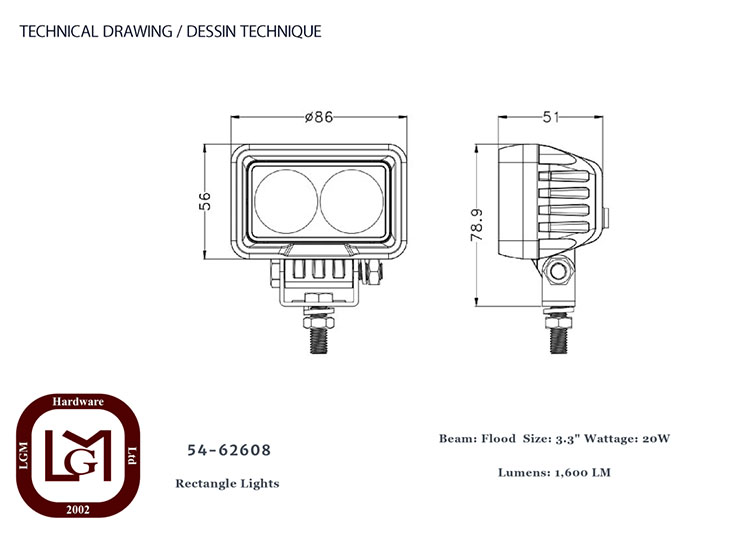

54 62608 Technical Drawing
Click photo to make Larger.

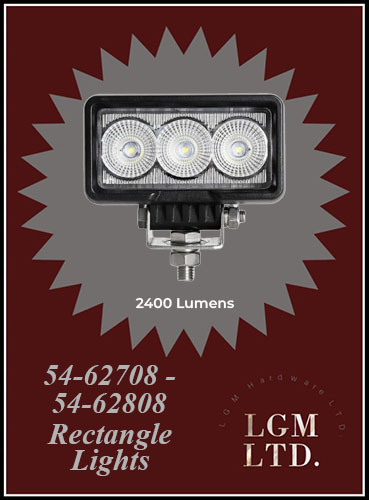

54-62708
Spot4.3"CISPR25
CLASS 4		ECE R10
CE
RoHs		30WPower: 3x10W OSRAM LED
Lumens: 2,400LM
Voltage: 9 - 32V
Waterproof & Dustproof:IP68
50,000 hours lifespan Die-cast aluminum housing
Durable polycarbonate lens Stainless steel hardware

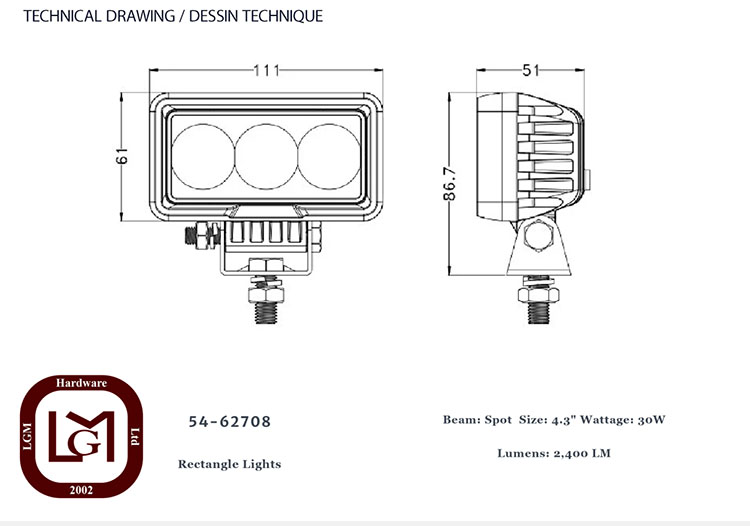

54 62708 Technical Drawing
Click photo to make Larger.
54-62808Flood4.3"CISPR25
CLASS 4		ECE R10
CE
RoHs		30WPower: 3x10W OSRAM LED
Lumens: 2,400LM
Voltage: 9 - 32V
Waterproof & Dustproof:IP68
50,000 hours lifespan Die-cast aluminum housing
Durable polycarbonate lens Stainless steel hardware

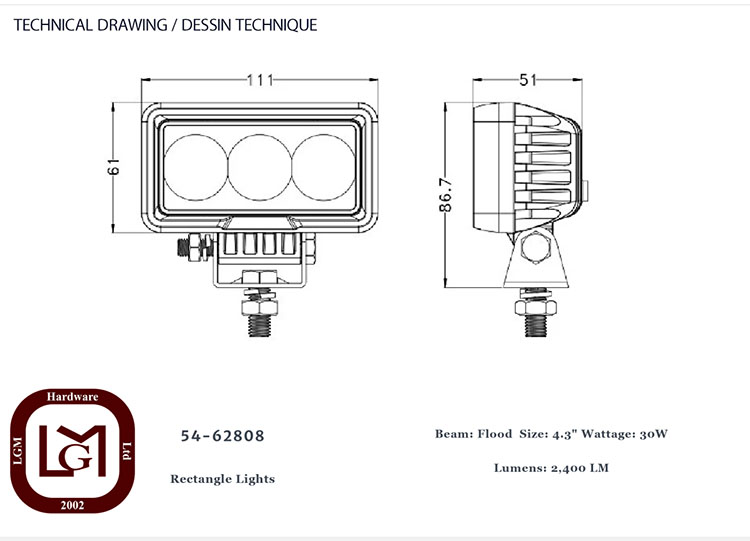

54 62808 Technical Drawing
Click photo to make Larger.

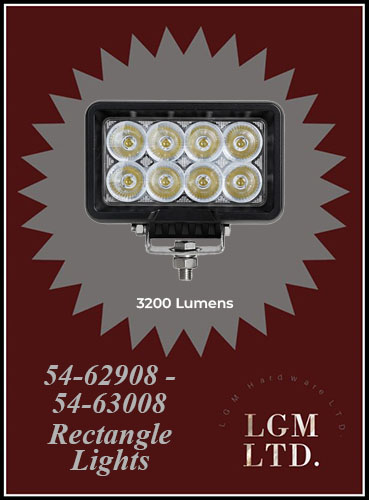

54-62908
Spot6"CISPR25
CLASS 4		ECE R10
CE
RoHs		40WPower: 8x5W OSRAM LED
Lumens: 3,200LM
Voltage: 9 - 32V
Waterproof & Dustproof:IP68
50,000 hours lifespan Die-cast aluminum housing
Durable polycarbonate lens Stainless steel hardware

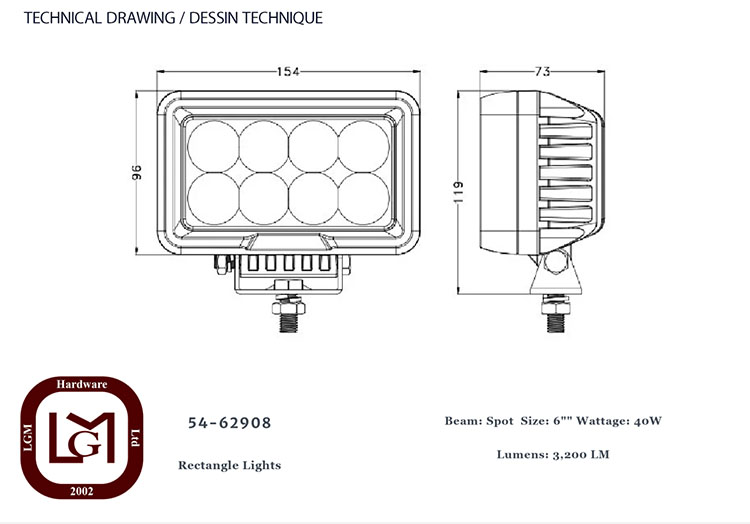

54 62908 Technical Drawing
Click photo to make Larger.
54-63008Flood6"CISPR25
CLASS 4		ECE R10
CE
RoHs		40WPower: 8x5W OSRAM LED
Lumens: 3,200LM
Voltage: 9 - 32V
Waterproof & Dustproof:IP68
50,000 hours lifespan Die-cast aluminum housing
Durable polycarbonate lens Stainless steel hardware
54 63008 Technical Drawing
Click photo to make Larger.
54-63108
Spot6"CISPR25
CLASS 4		ECE R10
CE
RoHs		80WPower: 8x10W OSRAM LED
Lumens: 6,000LM
Voltage: 9 - 32V
Waterproof & Dustproof:IP68
50,000 hours lifespan Die-cast aluminum housing
Durable polycarbonate lens Stainless steel hardware

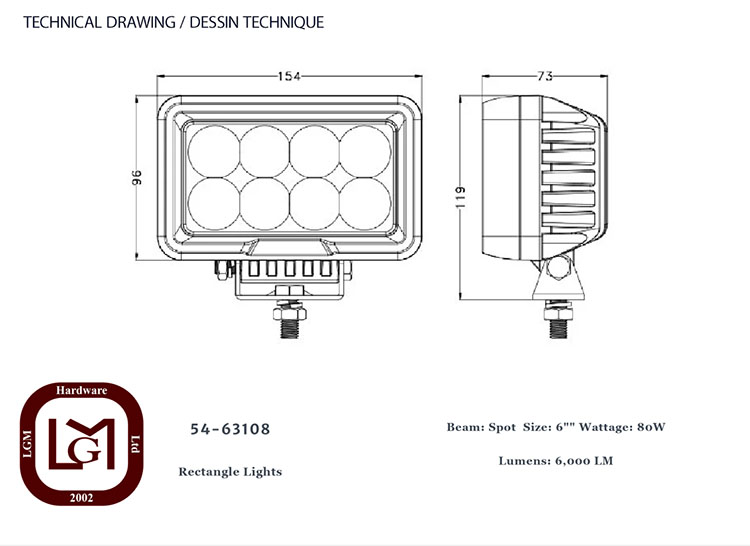

54 63108 Technical Drawing
Click photo to make Larger.
54-63208Flood6"CISPR25
CLASS 4		ECE R10
CE
RoHs		80WPower: 8x10W OSRAM LED
Lumens: 6,000LM
Voltage: 9 - 32V
Waterproof & Dustproof:IP68
50,000 hours lifespan Die-cast aluminum housing
Durable polycarbonate lens Stainless steel hardware

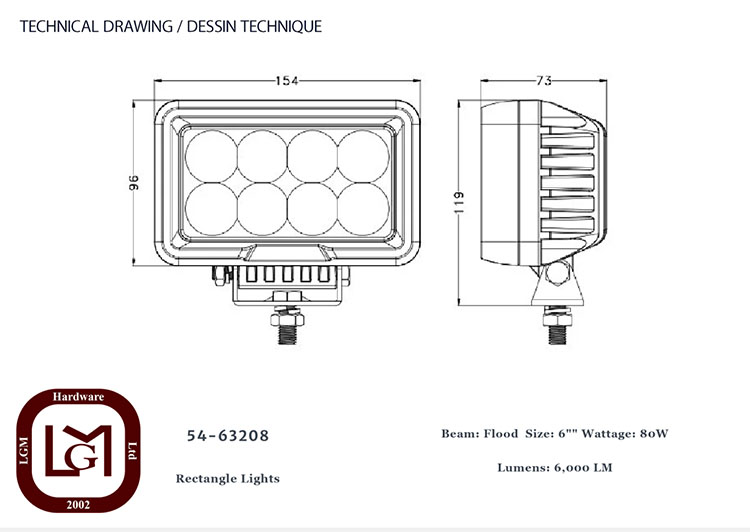

54 63208 Technical Drawing
Click photo to make Larger.

Additional information

Item #

54-62608, 54-63208
