Plated Tie Down

38 32013 Product Stud Fitting with Nut
38 32702 Product Round L-Track Tie Down

See below table for details

Item # 33-56702, 33-58104, 33-60202, 33-85902, 33-88505 Categories: ,

Description



Product #Description:Measurements:Material:Holding Strength:Breaking Load capacity:Technical Drawing:
33-567022PCZinc Plated Tie Down2000lbs

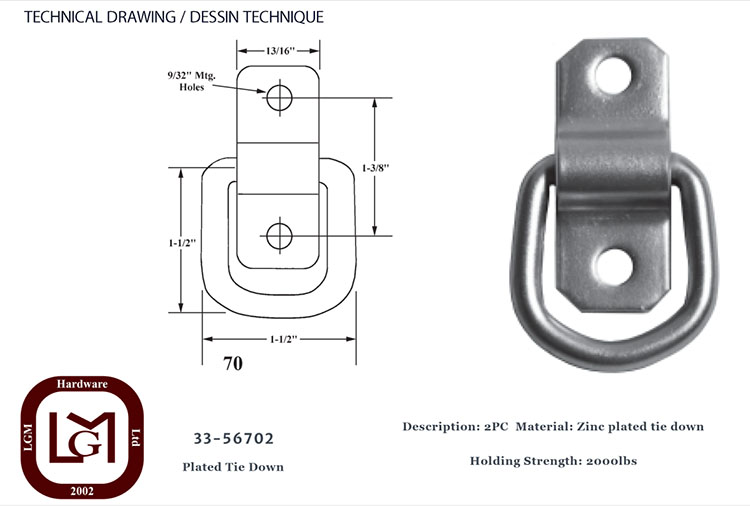

33 56702 Techical Drawing
Click photo to make larger
33-58104 2PCStainless Steel 2000lbs

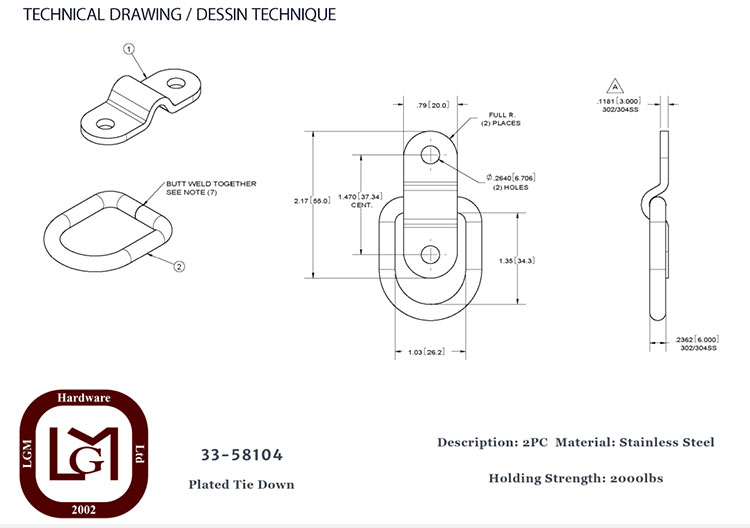

33 58104 Technical Drawing
Click photo to make larger

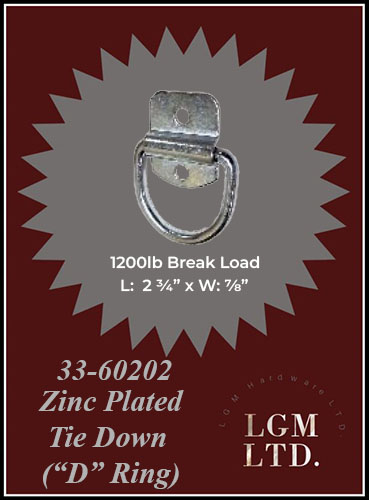

33-602022 3/4"L x 1 7/8"W
 Zinc Plated1,200 lbs

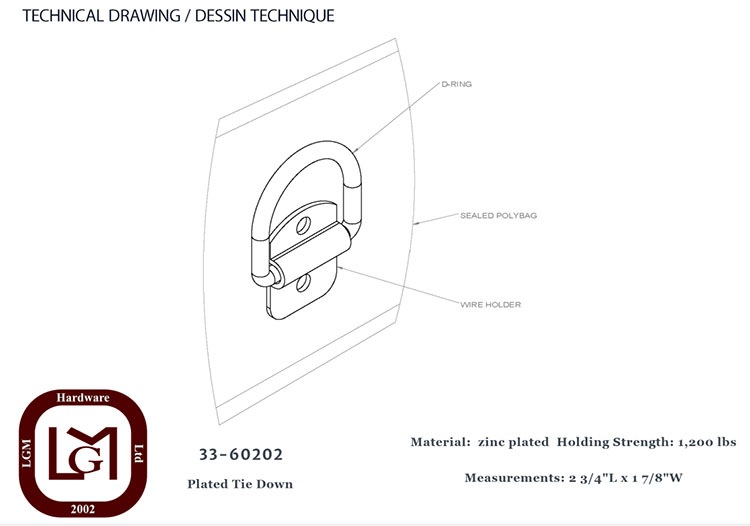

33 60202 Technical Drawing
Click photo to make larger

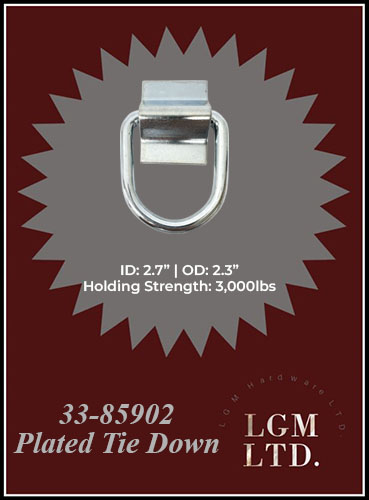

33-859022.7"ID X 2.3"OD
Zinc Plated Tie Down3,000lbs

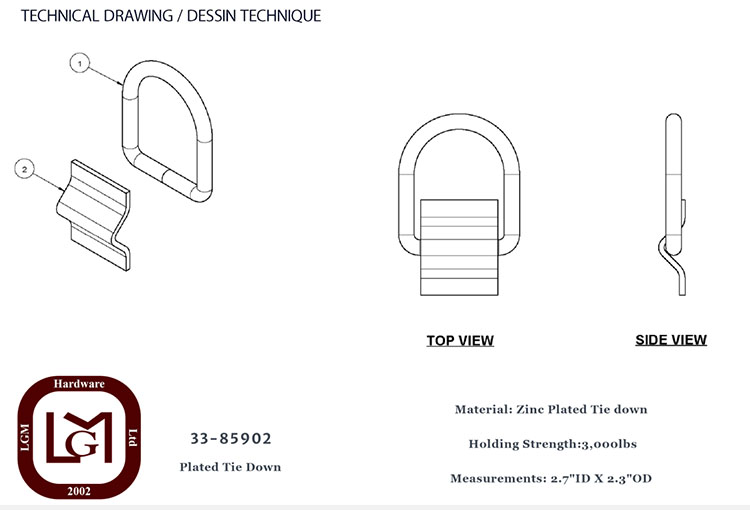

33 85902 Technical Drawing
Click photo to make larger

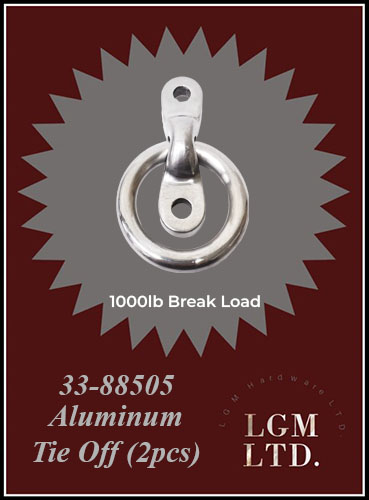

33-88505
Aluminum Tie Off (2pc)1,000 LB

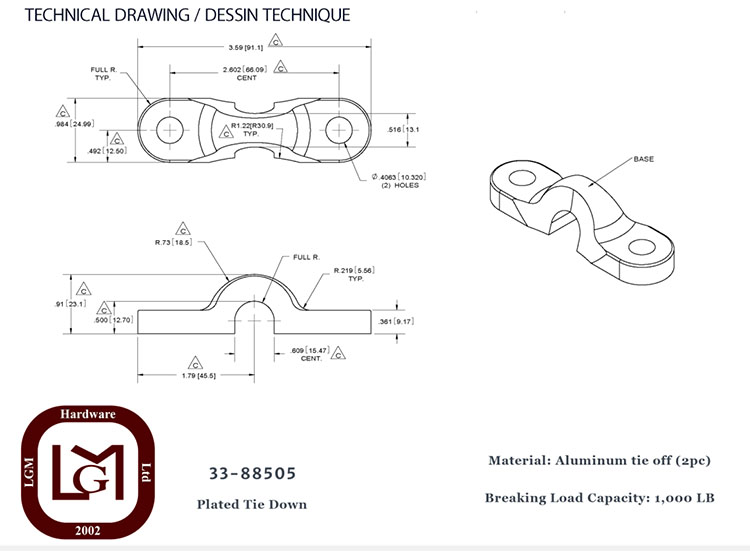

33 88505 Technical Drawing
Click photo to make larger

Additional information

Item #

33-56702, 33-58104, 33-85902, 33-88505, 38-60202
