Quick Disconnect – Female

57 64101 57 64123 Picture Quick Disconnect – Male
57 60201 57 60223 Picture Spade Terminals

See table below for details.

Item # 57-64001, 57-64002, 57-64011, 57-64012, 57-64021, 57-64022, 57-64023 Categories: ,

Description

Product #Length (mm):Ring Diameter (mm):AWG:Color:Pack:
57-6400120.5mm3.0mm22-16Red100
57-6400220.5mm3.0mm16-14Blue100
57-6401121.0mm5.0mm22-16Red100
57-6401221.0mm5.0mm16-14Blue100
57-6402122.5mm6.5mm22-16Red100
57-6402222.5mm6.5mm16-14Blue100
57-6402322.5mm6.5mm12-10Yellow100

Material: Copper
Max, Electrical Rating: 75C, 300 Volts
Insulated Material: Vinyl (PVC)

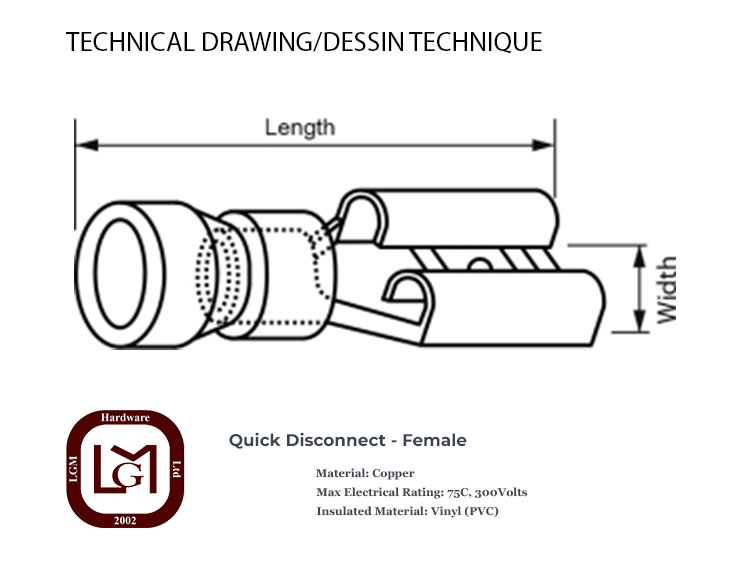

57 64001 57 64023 Technical Drawing



Additional information

Item #

57-64001, 57-64002, 57-64011, 57-64012, 57-64021, 57-64022, 57-64023
