| Product # | Outside Diameter: | Height: | Recessed Depth: | Recessed Width: | Hole Diameter: | Technical Drawing |
|---|---|---|---|---|---|---|
| 66-31306 | 1/2" | 1/4" | 3/16" | 1/4" | 1/8" | |
| 66-87006 | 1/2" | 7/16" | 7/32" | 1/4" | 1/8" | |
| 66-32006 | 1/2" | 11/32" | 3/16" | 1/4" | 1/8" | |
| 66-03006 | 5/8" | 7/16" | 5/32" | 5/16" | 5/32" | |
| 66-28006 | 5/8" | 5/16" | 13/16" | 15/64" | 11/64" | |
| 66-67006 | 3/4" | 3/8" | 5/32" | 3/8" | 1/8" | |
| 66-30306 | 3/4" | 7/16" | 5/32" | 9/32" | 3/32" | |
| 66-59006 | 3/4" | 1/2" | 3/8" | 3/16" | 3/16" | |
| 66-14006 | 15/16" | 3/8" | 7/32" | 3/8" | 3/16" | |
| 66-07006 | 1" | 9/16" | 5/16" | 17/32" | 9/32" | |
| 66-17006 | 1" | 1" | 5/8" | 5/16" | 5/32" | |
| 66-78006 | 13/16" | 1" | 7/16" | 1/4" | 1/8" | |
| 66-94006 | 1" | 1/2" | 1/4" | 1/2" | 7/32" | |
| 66-21306 | 1" | 7/16" | 3/16" | 3/8" | 3/16" | |
| 66-00006 | 1 3/32" | 5/8" | 13/32" | 7/16" | 3/16" | |
| 66-13006 | 1 3/16" | 1/2" | 1/4" | 3/8" | 1/4" | |
| 66-53006 | 1 1/4" | 2" | 1" | 1/2" | 1/4" | |
| 66-16006 | 1 1/2" | 5/8" | 11/32" | 1/2" | 3/16" | |
| 66-31406 | 2" | 1 3/4" | 27/32" | 25/32" | 3/8" | |
| 66-21006 | 2 1/2" | 1" | 1/2" | 1 1/8" | 3/8" | |

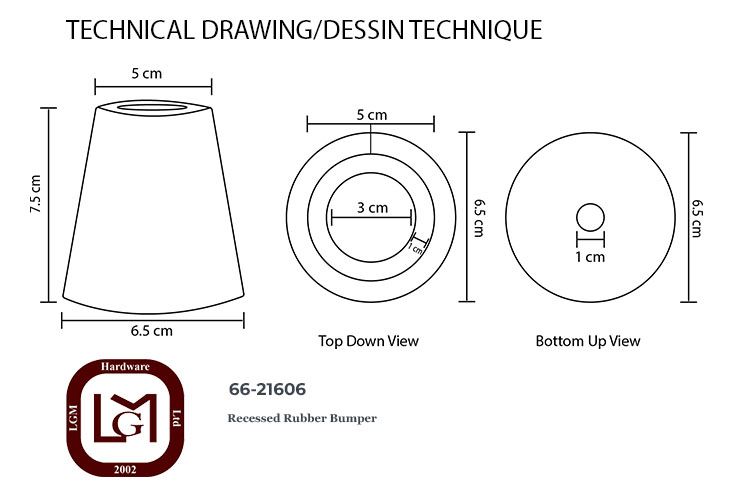

| 66-21606 | 2 9/16" | 2 15/16" | 1 31/32" | 1 3/16" | 3/8" |  |
