Rotary Latches

33 46602 Hd Lock Zinc Product Heavy Duty Bar Lock – Less Pipe – Zinc
33 28802 Product Rotary Cab Lock and Handles

See table below for details.

Item # 33-90202, 33-90402, 33-90502, 33-40000, 33-40700, 33-18372, 33-442, 33-28202, 33-45002, 33-45202, 33-49902 Categories: ,
Clear

Description

Product #Orientation:Description:Material:Measurements:Technical Drawing:

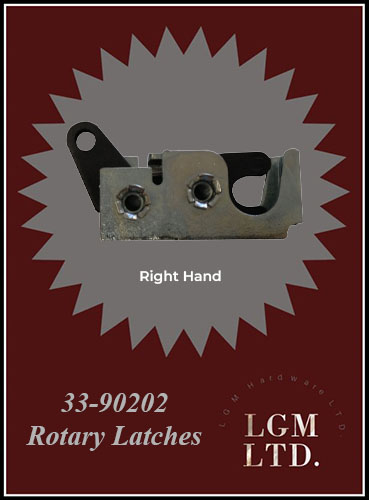

33-90202Right Hand

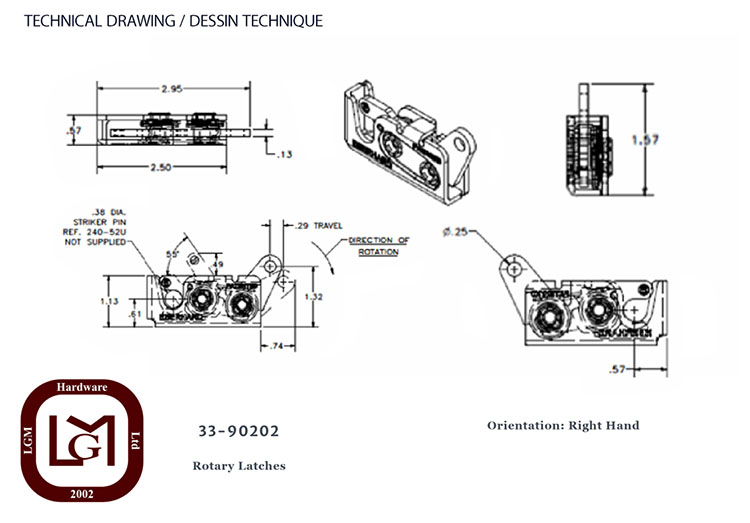

33 90202 Technical Drawing
Click photo to make larger

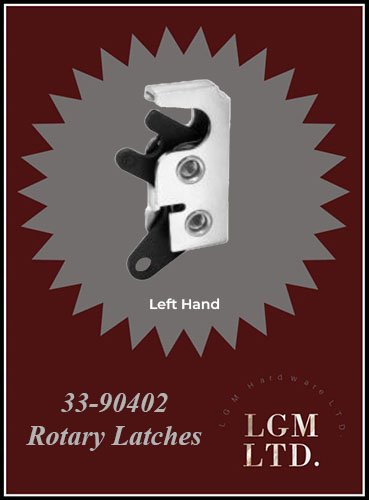

33-90402Left Hand
33-90502Striker for Mini Rotary LatchZinc
33-40000Left Hand Dove Tail Rotary Latches
33-40700Right Hand Dove Tail Rotary Latches

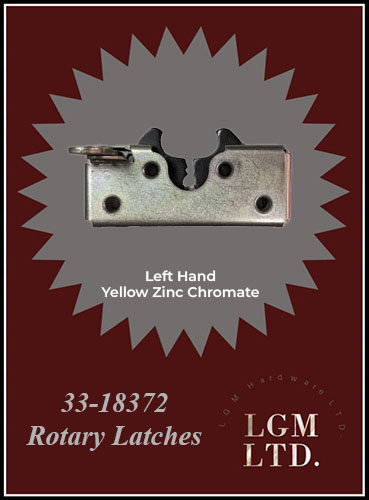

33-18372Left Hand Yellow Zinc Chromate

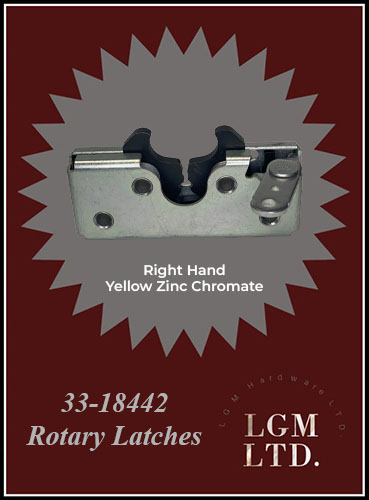

33-18442Right Hand Yellow Zinc Chromate

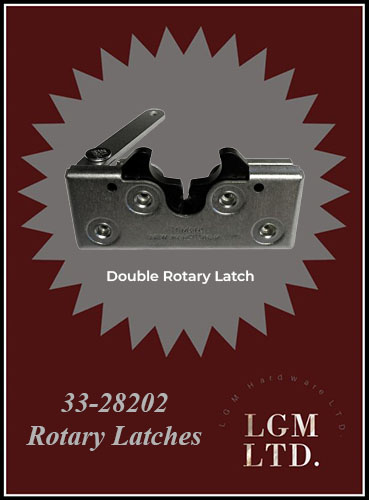

33-28202Double Rotary Latch

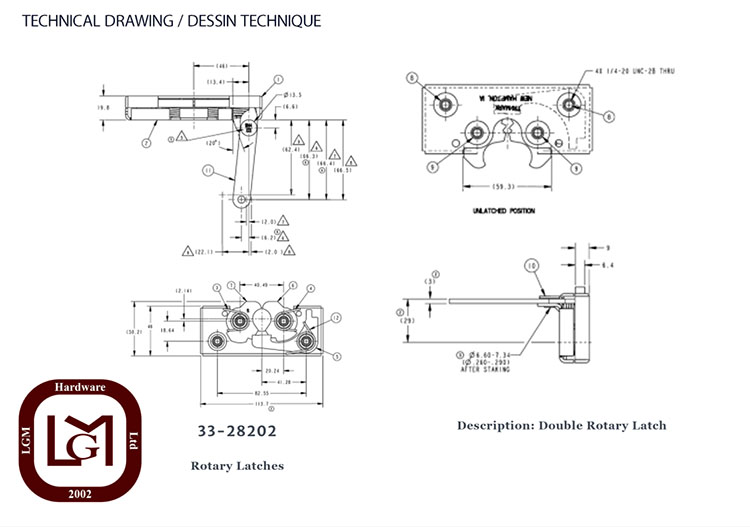

33 28202 Technical Drawing
Click photo to make larger

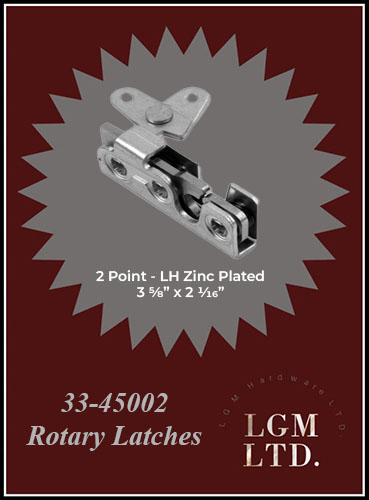

33-45002Left Hand2 Point Zinc PlatedWidth: 3 5/8"
Height: 2 1/16"

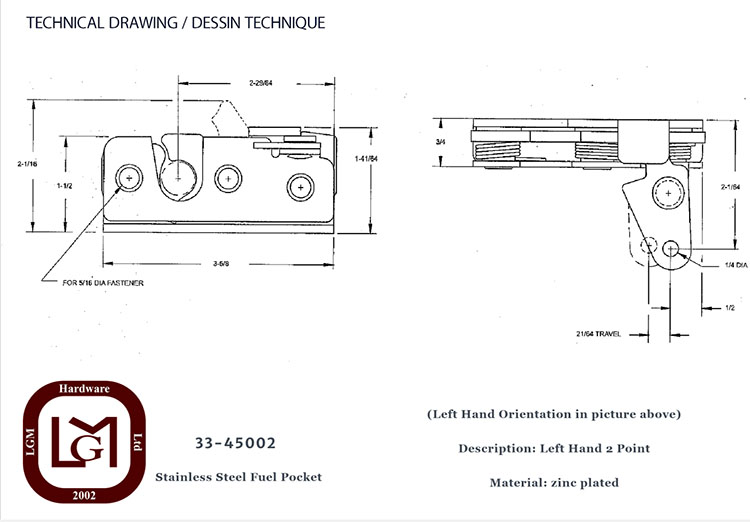

33 45002 Technical Drawing
Click photo to make larger

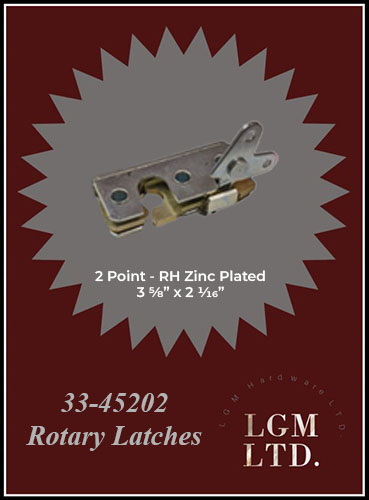

33-45202Right Hand2 Point Zinc PlatedWidth: 3 5/8"
Height: 2 1/16"

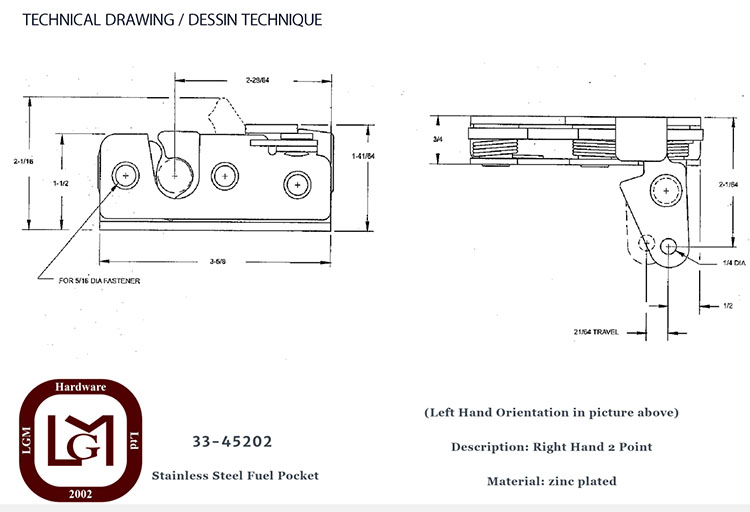

33 45202 Technical Drawing
Click photo to make larger

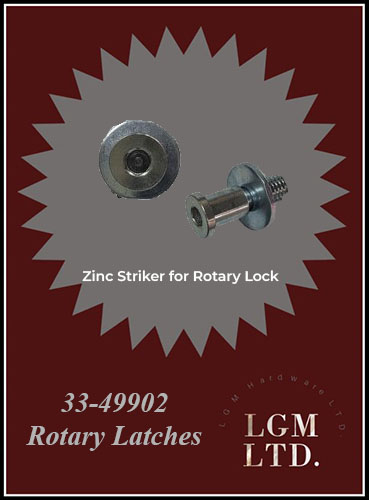

33-49902Striker for Rotary LockZinc
33 49902 Technical Drawing
Click photo to make larger
