RV Door Locks (Key and Keyless)

33 72608 Product Flettner Slimline – Low Profile Ventilator
50 16000 50 16700 Product 16 Gauge Automotive Wire – 100′ Rolls
Item # 33-43405, 33-43003, ,33-43507, 33-43607,33-43707 Categories: ,

Description

Product #Color:Lock:Technical Drawing:

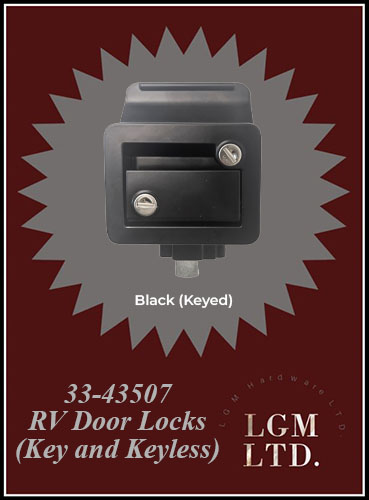

33-43507Black Zinc AlloyKeyed
33-43707WhiteKeyed
33-43003Chrome Zinc
Alloy Painted		Keyed

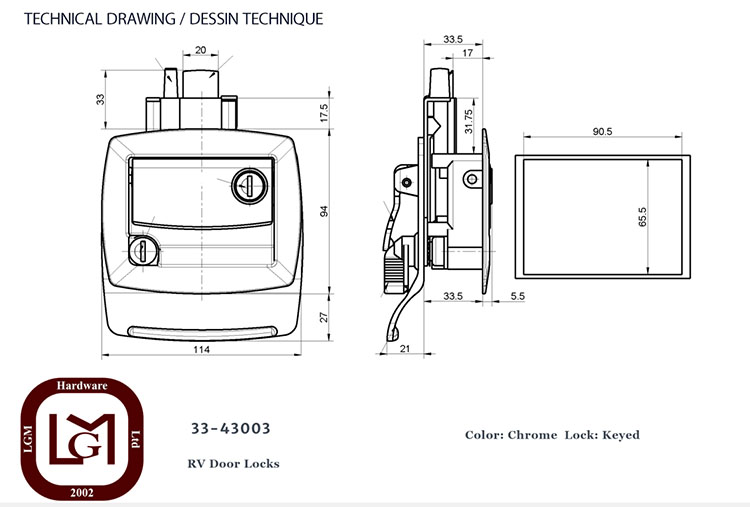

33 43003 Technical Drawing
Click photo to make larger
33-43405Black Aluminum
Alloy Painted		Keyless
33 43405 Technical Drawing
Click photo to make larger

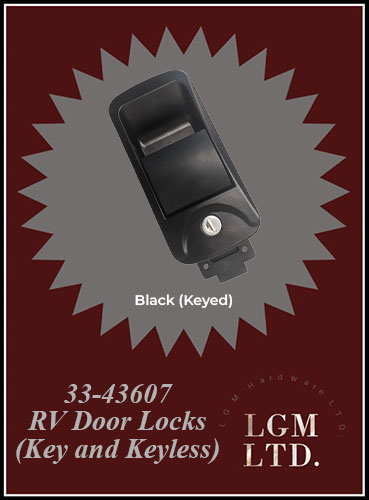

33-43607BlackKeyed

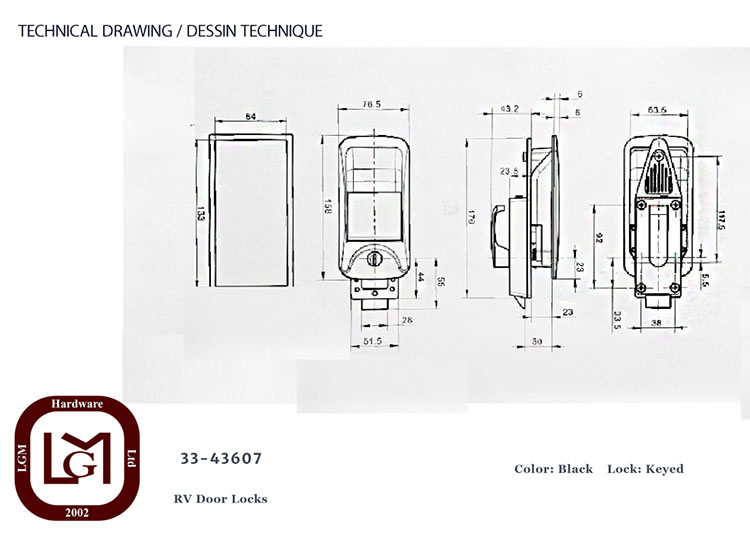

33 43607 Technical Drawing
Click photo to make larger











Additional information

Item #

33-43003, 33-43405, 33-43507, 33-43607, 33-43707
Color

Black
Description

Door Thickness 32-38mm(1.25”- 1.49”)
Door Opening Size:Width:85-87mm(3.35”- 3.42” )
Height:91-93mm(3.58” – 3.66”)

33 43405 Old Tech Page 1

33 43405 Instruction Booklet Page 2

33 43405 Instruction Booklet Page 3

33 43405 Instruction Booklet Page 4

33-43405 Additional Product Information

Specification :

Material : Plastic + Metal

Power : 4 X AA Batteries (Not Included)

Door Fitting Thickness : 32 – 38mm

Lock Size : 4.25″ x 5.5″

Hole Dimension : 3.75″ x 2.75″ x 1.5″



Contain :

1 x RV Lock (Batteries Not Included)

1 x Remote Controller (Batteries Not Included)

2 x Keys

1 x Set Hardware

1 x Manual
