Service Body Hinge

11 20104 11 20004 Picture Hinge with Counter Sunk Holes – Stainless Steel
11 22602 Picture Adjustable Spring Loaded Hinge

See below tables for details.

SKU: 11-00704, 11-09004, 11-99904, 11-22904, 66-27908, 66-97306, 66-97006 Categories: ,

Description

Product #Description:Overall Length :Measurement:Material: Technical Drawing:
11-090044" overall lengthStainless Steel

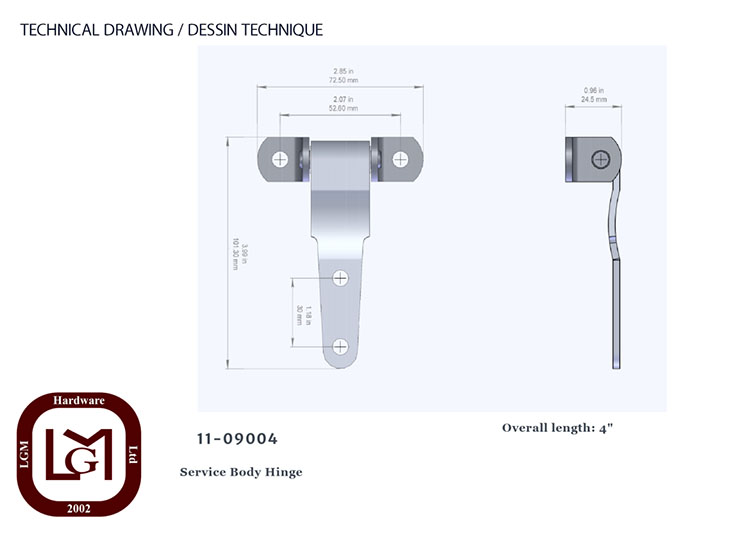

11 09004 Technical Drawing
Click photo to make Larger.
11-007043.94" overall lengthStainless Steel
11-99904NEW Style 4" overall lengthStainless Steel

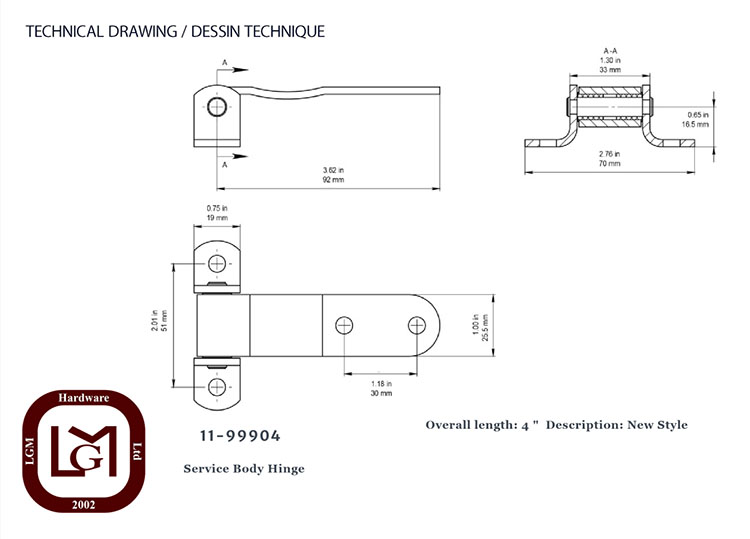

11 99904 Technical Drawing
Click photo to make Larger.

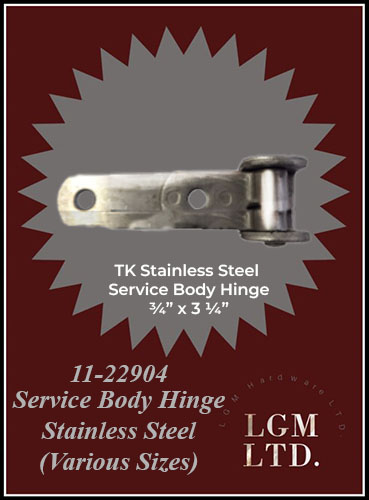

11-22904TK Stainless Steel Service Body Hinge
3/4" Wide x 3 1/4" LongStainless Steel

Accessories:

Product #Description:

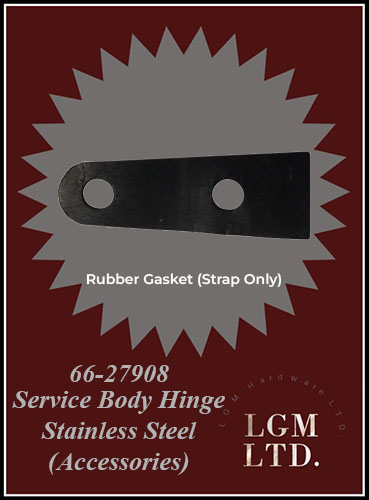

66-27908Rubber Gasket (strap only)

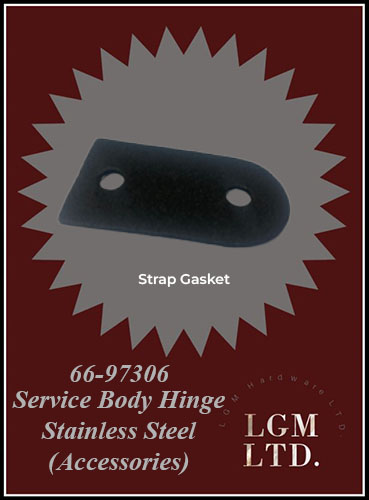

66-97306Strap Gasket

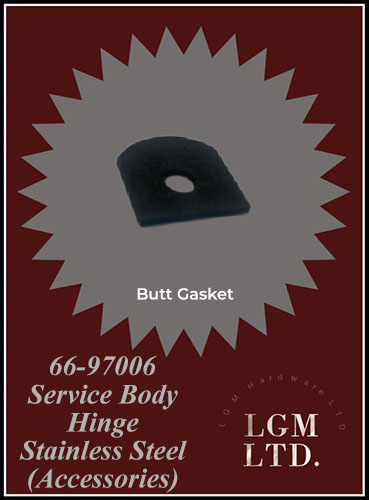

66-97006Butt Gasket



Additional information

Item #

11-00704, 11-09004, 11-22904, 11-99904, 66-27908, 66-97006, 66-97306
