316 Stainless Steel Hinge

09 73004 Picture Stainless Steel Continuous Hinge
11 22206 Picture 5″ Polyamide Hinge with Stainless Steel Pin
SKU: 10-50704, 10-50604, 10-50404, 11-22304, 11-22804 Categories: , , ,

Description

Product #Overall Length:Material:Width:Technical Drawing:
10-504044"

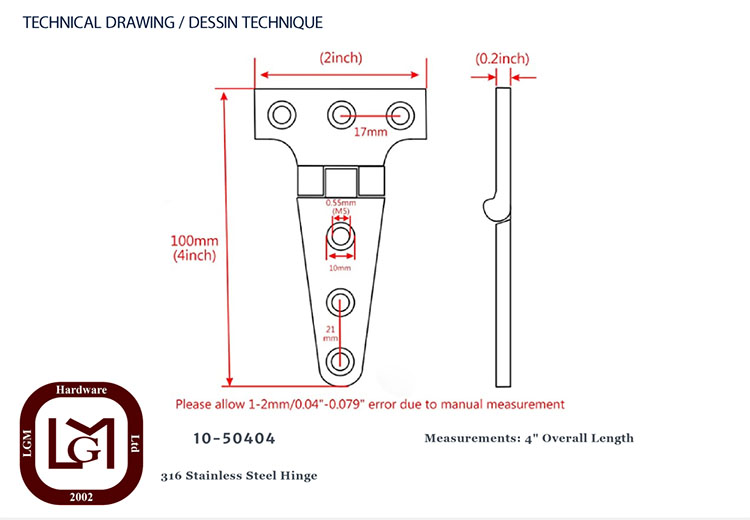

10 50404 Technical Drawing
Click to make photo Larger.

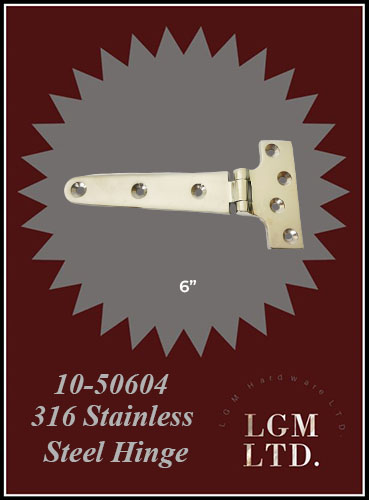

10-506046"

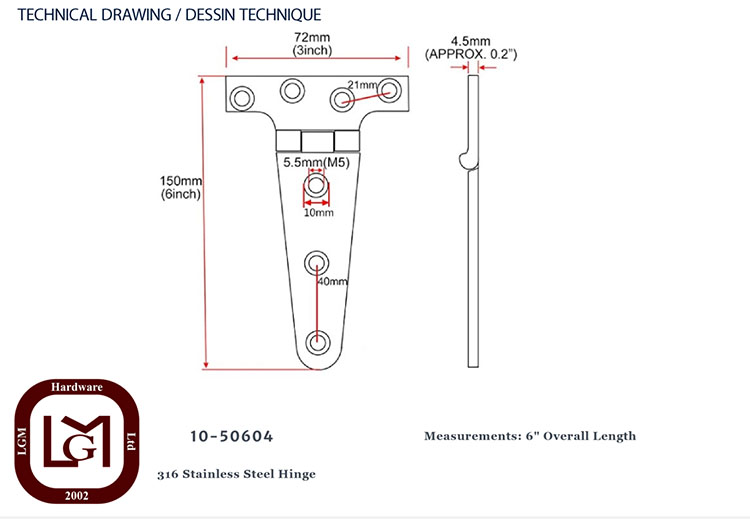

10 50604 Technical Drawing
Click to make photo Larger.

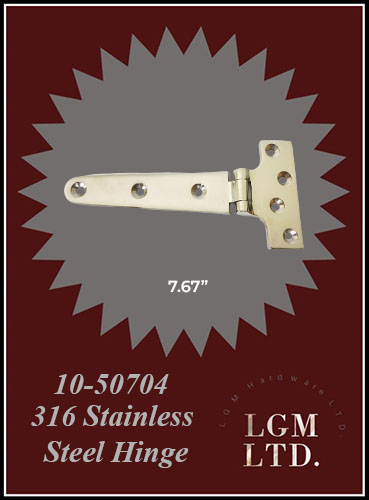

10-507047.67"

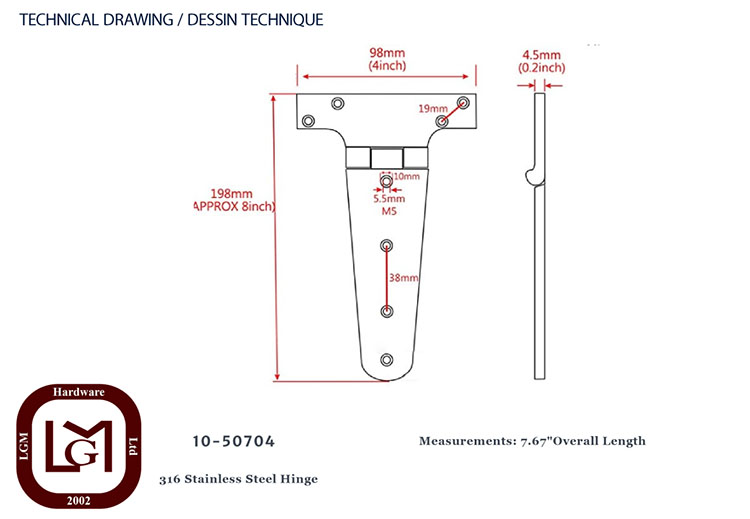

10 50704 Technical Drawing
Click to make photo Larger.
11-223045.5” 304 HD Stainless steel hinge4” wide

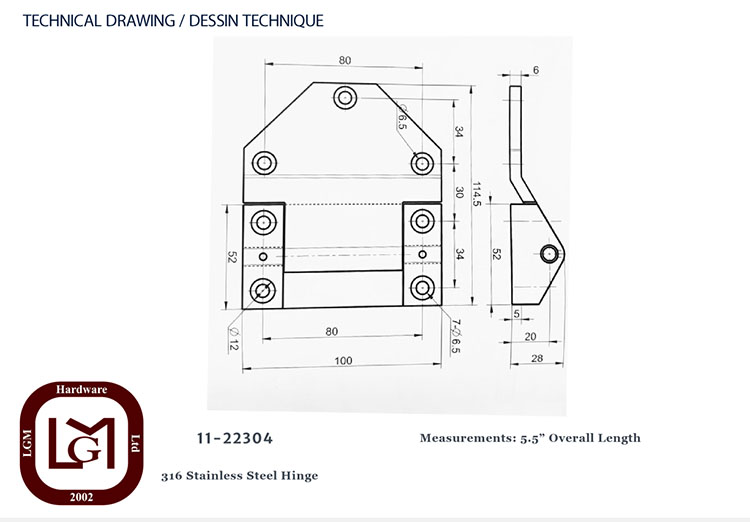

11 22304 Technical Drawing
Click to make photo Larger.

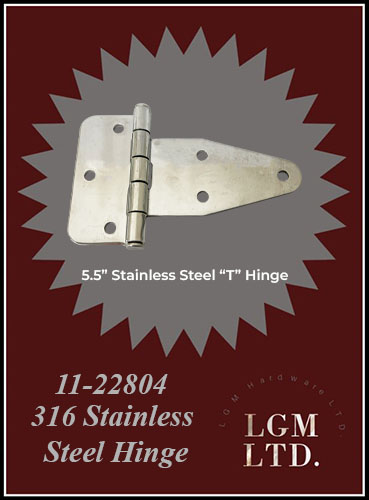

11-228045.5" Stainless Steel

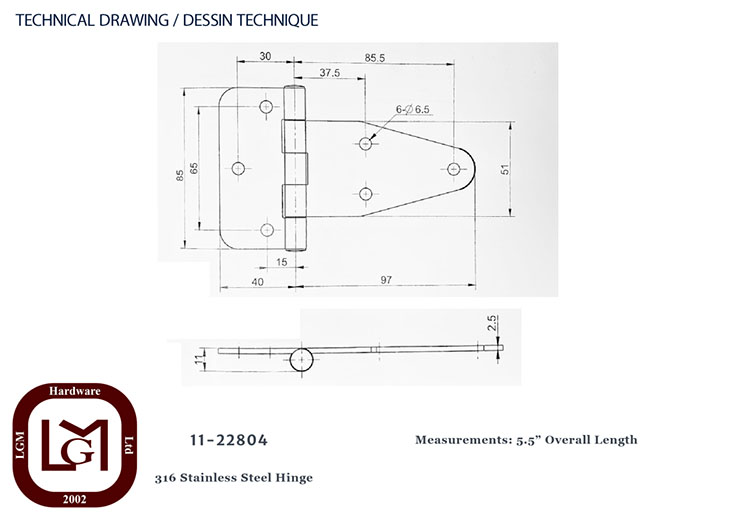

11 22804 Technical Drawing
Click to make photo Larger.

Additional information

Item #

10-50404, 10-50604, 10-50704, 11-22304, 11-22804
