Stamped Stainless Steel “Whale Tail” T-Handle Lock

33 82804 33 89204 Product Stealth Compression Locks
33 18431 33 17501 Picture “Whale Tail” Compression Lock – 3 Point Latch

See table below for details.

Item # 33-65504, 33-19506, 33-65102, 33-28400, 33-65002, 33-67704, 33-67503, 33-67101 Categories: ,

Description

Product #Description:Orientation:Material / Color:
33-67704With Chrome "T" Handle Right HandStainless Steel
33-67503With Chrome "T" HandleRight HandBlack
33-67101All BlackRight HandAll Black

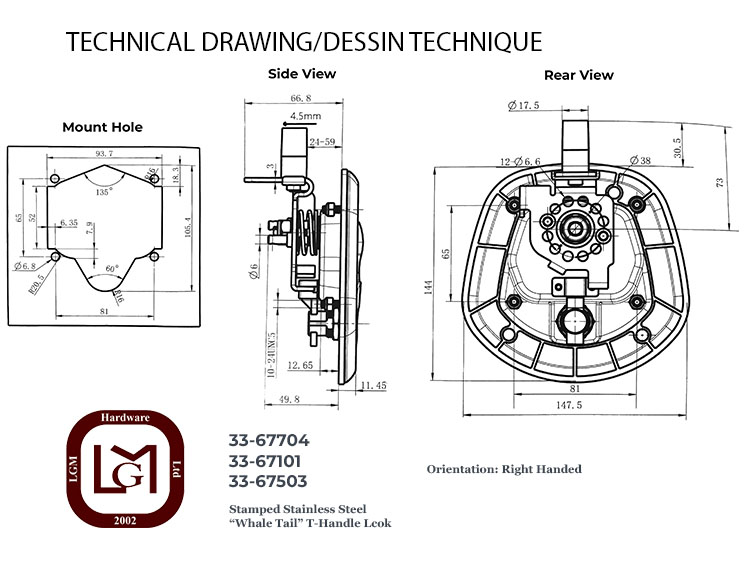

33 67704 33 67102 33 67503 Technical Drawing Updated

Features Include:
– Polished Stainless Steel Receptacle with Chrome “T” Handle
– Ergonomic Design
– Standard Molded Rubber Gasket
– Standard Double-Bitted Key Cylinder in Locking Versions
– 12 Hole Cam Design on Back of Latch Available in Single or Multipoint Versions
– Adjustable Roller Cam for Easy Opening and Closing
– Four Standard Mounting Studs – Cutout is the same as the 18400 “Whale Tail” TM Series
– Compression Feature that Provides a Tight Seal Around Your Door Frame and Gasket
– Water Resistant
– Oversized Handle Also Acts as Key Cylinder Cover

Additional information

Item #

33-19506, 33-28400, 33-65002, 33-65102, 33-65504
