| Product # | Length (mm): | Inch: | Pin Size (mm): | Technical Drawing: |
|---|---|---|---|---|
| 13-30102 | 40mm | 1 9/16" | 5mm | |
| 13-30302 | 50mm | 2" | 5mm | |
| 13-30502 | 60mm | 2 3/8" | 6mm | |
| 13-30702 | 70mm | 2 3/4" | 7mm | |

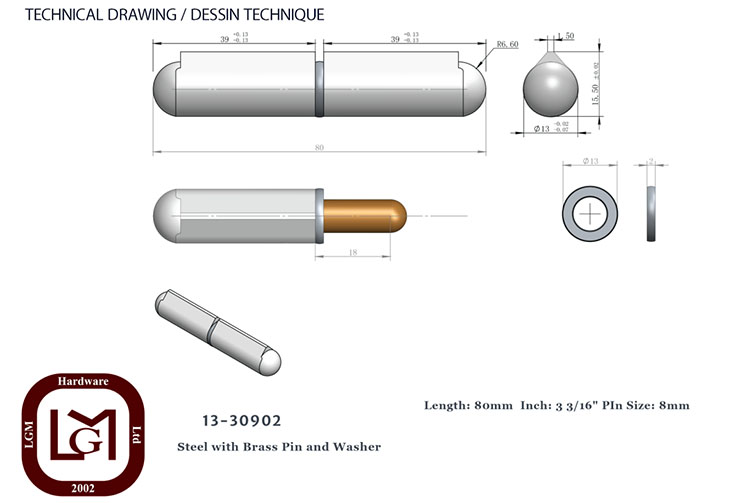

| 13-30902 | 80mm | 3 3/16" | 8mm |  |

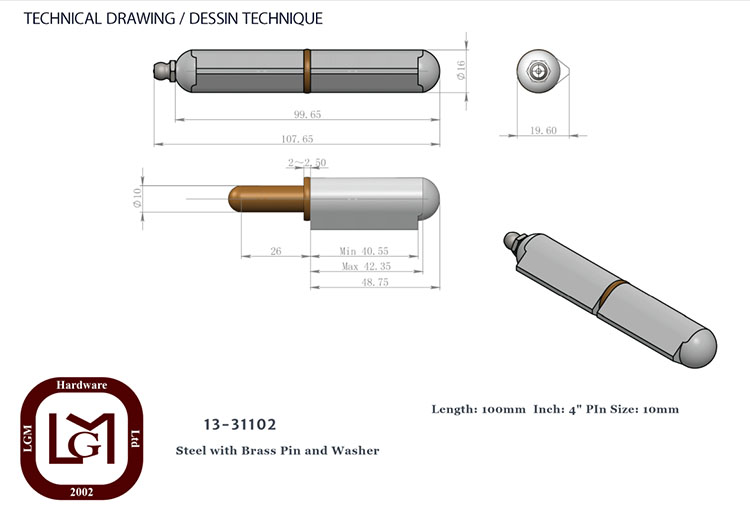

| 13-31102 | 100mm | 4" | 10mm |  |

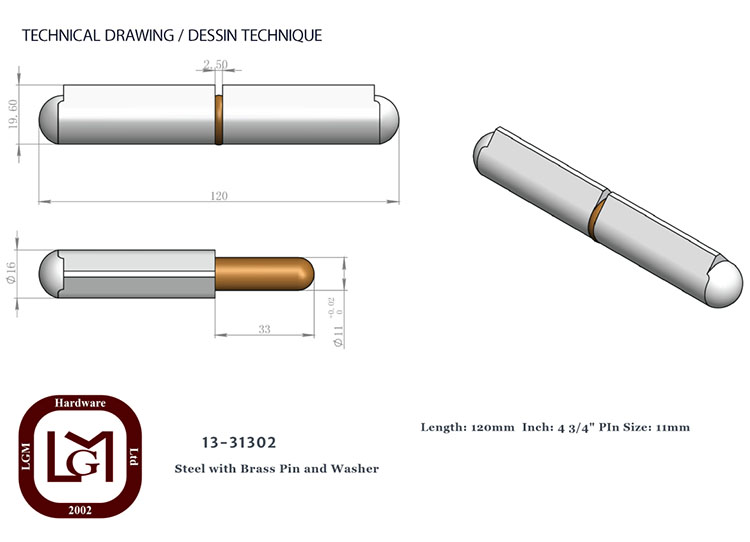

| 13-31302 | 120mm | 4 3/4" | 11mm |  |
| 13-31502 | 135mm | 5 3/8" | 13mm | |

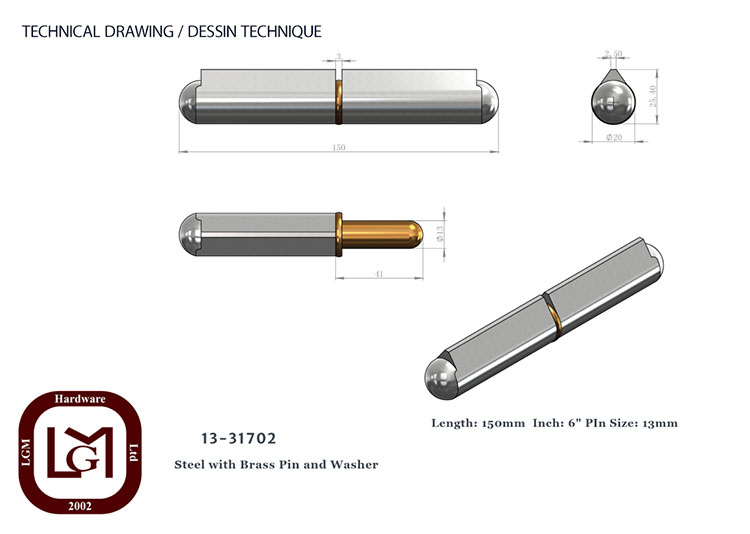

| 13-31702 | 150mm | 6" | 13mm |  |
| 13-31902 | 180mm | 7" | 14mm | |
| 13-32102 | 200mm | 8" | 16mm |
| Item # | 13-30102, 13-30302, 13-30502, 13-30702, 13-30902, 13-31102, 13-31302, 13-31502, 13-31702, 13-31902, 13-32102 |
|---|
