Telescopic Cylinders – Black

15 66606 Product Reversible Banner – Wide Load/Oversize Load with Rope Ties
80 90100 80 90300 Product Image Hydraulic Cylinder – 3000PSI – Black
Item # 80-80902, 80-81442, 80-81202, 80-81082 Categories: ,

Description

Product NumberProduct DescriptionTechnical DetailsTechnical Drawing
80-80902Telescopic Cylinder 7 Ton - 90" Stroke Black7 Ton
90" Stroke
Working Pressure: 17 Mpa
Test Pressure: 24 Mpa
Bore: 85mm/70mm/55mm
Rod: 80mm/65mm/50mm
80 80902 Technical Drawing
Click image to make larger
80-81082Telescopic Cylinder 7 Ton - 108" Stroke Black7 Ton
108" Stroke
Working Pressure: 17 Mpa
Test Pressure: 24 Mpa
Bore: 85mm/70mm/55mm
Rod: 80mm/65mm/50mm

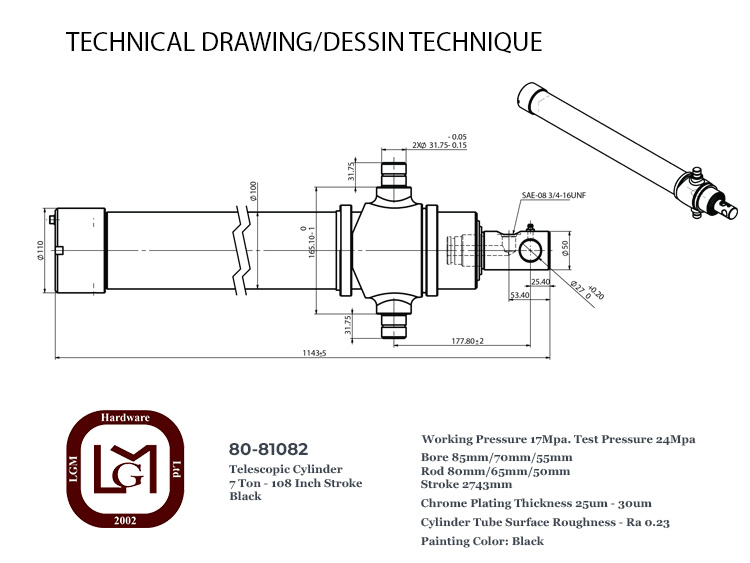

80 81082 Technical Drawing
Click image to make larger
80-81202Telescopic Cylinder 12 Ton - 120" Stroke Black12 Ton
120" Stroke
Working Pressure: 17 Mpa
Test Pressure: 24 Mpa
Bore: 97mm/80mm/65mm
Rod: 92mm/75mm/60mm

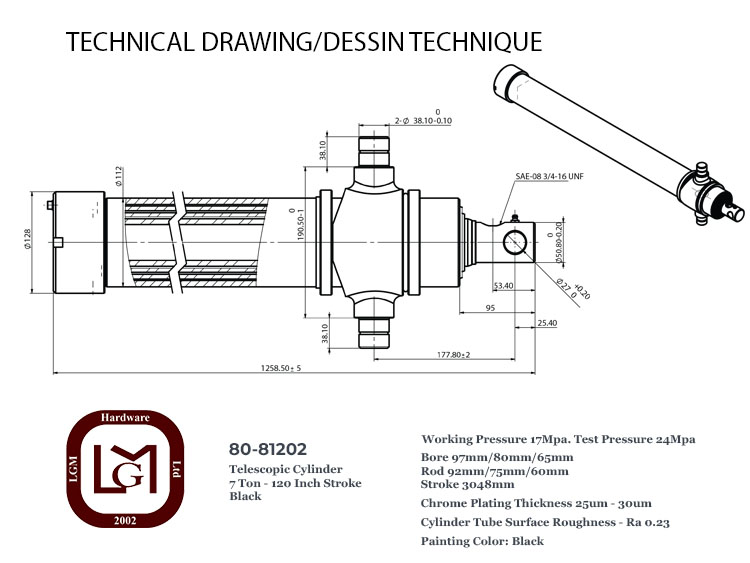

80 81202 Techincal Drawing
Click image to make larger
80-81442Telescopic Cylinder 12 Ton - 144" Stroke Black12 Ton
144" Stroke
Working Pressure: 17 Mpa
Test Pressure: 24 Mpa
Bore: 97mm/80mm/65mm
Rod: 92mm/75mm/60mm

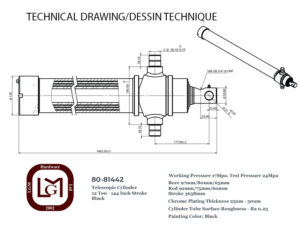

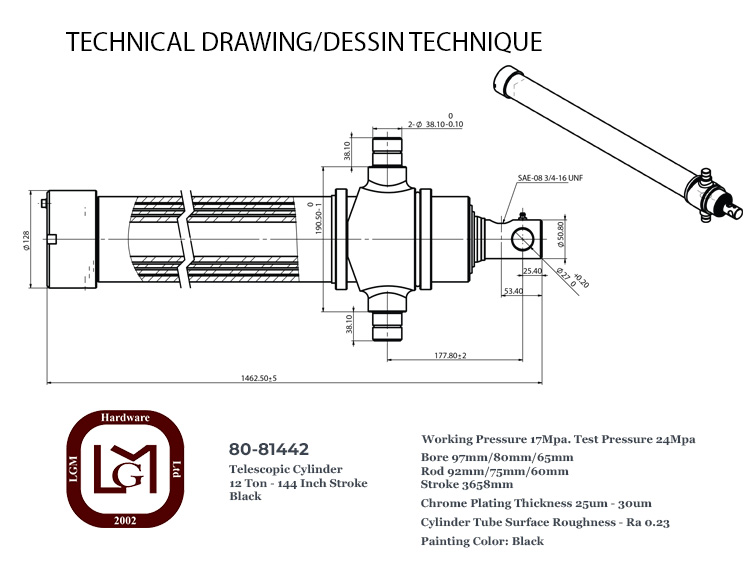

80 81442 Technical Drawing
Click to make image larger

Toolboxes

Product NumberProduct Description
31-15406Aluminum Tool Box with Hydraulic Pump - 1/2" Hose - 7 Gallon Tank - 4.5 AMP Charger - 2 Button Joystick - Bluetooth Fob
31-15506Aluminum Tool Box with Hydraulic Pump - 1/2" Hose - 7 Gallon Tank - 4.5 AMP Charger - 4 Button Joystick - Bluetooth Fob
31-15606Aluminum Tool Box with Hydraulic Pump - 1/2" Hose - 3 Gallon Tank - 4.5 AMP Charger - 2 Button Joystick - Bluetooth Fob
31-15706Aluminum Tool Box with Hydraulic Pump - 1/2" Hose - 1 Gallon Tank - 4.5 AMP Charger - 2 Button Joystick - Bluetooth Fob
