Description

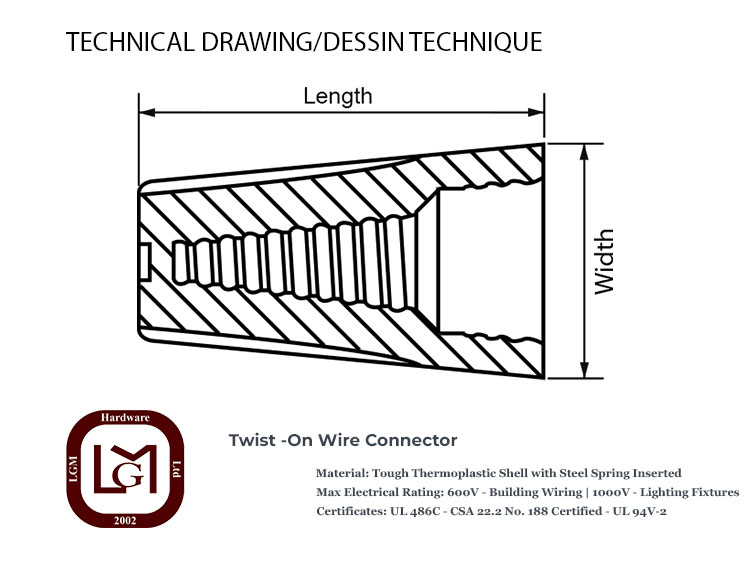

| Product # | Length (mm): | Width (mm): | AWG: | Max V. Rated: | Temp. Rated: | Color: | Pack: |
|---|---|---|---|---|---|---|---|
| 57-76100 | 17.0mm | 9.9mm | 22-14 | 300V | 105°C | Blue | 100 |
| 57-77100 | 21.9mm | 12.2mm | 12-14 | 600V | 105°C | Orange | 100 |
| 57-78100 | 23.8mm | 14.0mm | 22-10 | 600V | 105°C | Yellow | 100 |
| 57-79100 | 26.6mm | 16.0mm | 22-8 | 600V | 105°C | Red | 100 |
Material: Tough Thermoplastic Shell with Steel Spring Inserted
Other: Rated at 600V Max. for Building Wiring and 1000V Max. for Lighting Fixtures/Luminaries and Signs
Certificates: UL 486C – CSA 22.2 No. 188 Certified – UL 94V-2
Additional information
| Item # | 57-76100, 57-77100, 57-78100, 57-79100 |
|---|
