“Whale Tail” Compression Lock – 3 Point Latch

33 67704 33 67503 Product Stamped Stainless Steel “Whale Tail” T-Handle Lock
44 40004 44 40403 Product Zinc Die Cast Cam Locks

See tables below for details.

Item # 33-18431, 33-18903, 33-19206, 33-19606, 33-17501, 33-00201, 33-00202, 33-00203, 33-00205, 33-00206, 33-00207, 33-00208, 33-00210, 33-00223, 33-18002, 33-18400, 33-18202, 66-18406 Categories: ,

Description

Product #Measurements:Color:Orientation:Technical Drawing:
33-18431Width: 5.52"
Height: 5.55"		All Chrome Right Hand

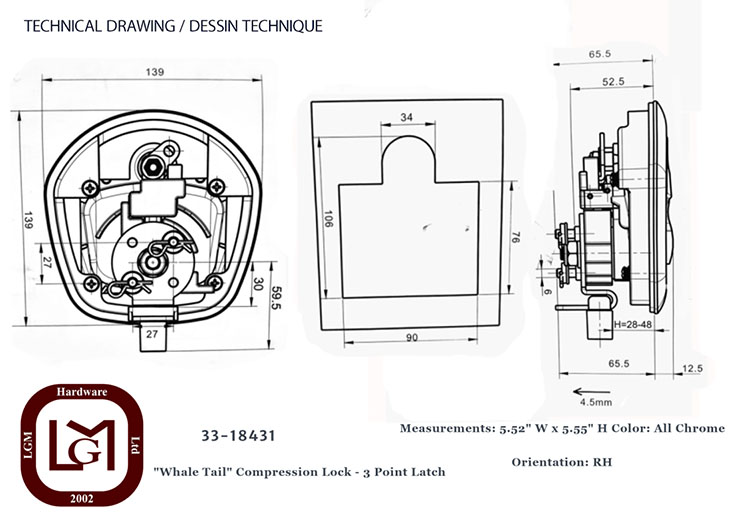

33 18431 Technical Drawing
Click photo to make larger
33-18903Width: 5.52"
Height: 5.55"		All Chrome Left Hand

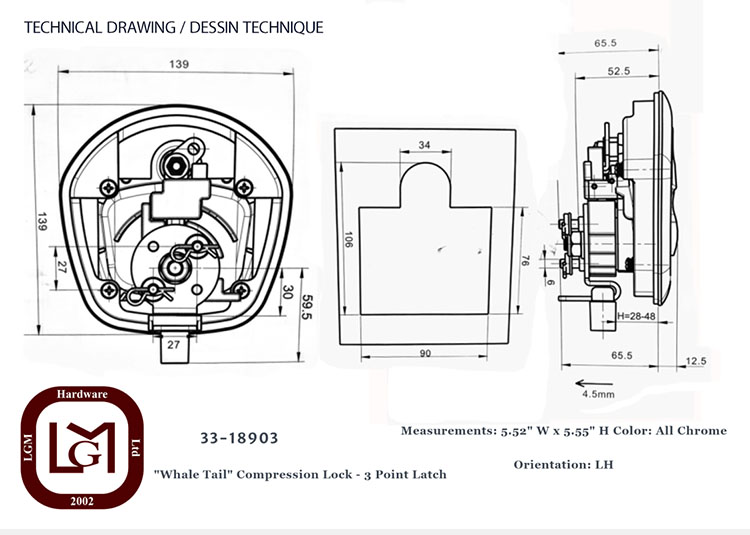

33 18903 Technical Drawing
Click photo to make larger
33-19206Width: 5.52"
Height: 5.55"		Chrome/Black Right Hand

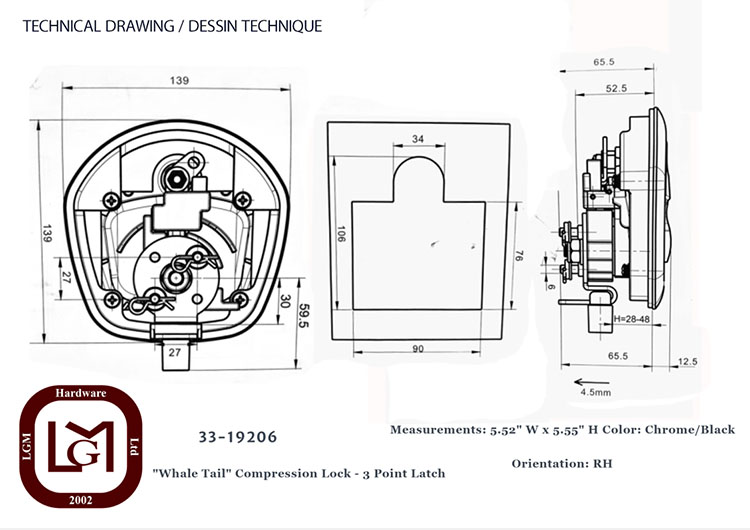

33 19206 Technical Drawing
Click photo to make larger
33-19606Width: 5.52"
Height: 5.55"		Chrome/ BlackLeft Hand

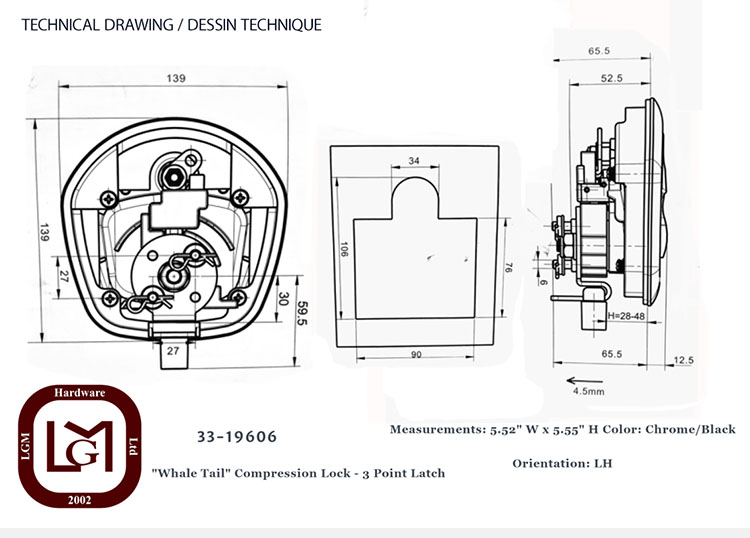

33 19606 Technical Drawing
Click photo to make larger
33-17501Width: 5.52"
Height: 5.55"		All Black Right Hand

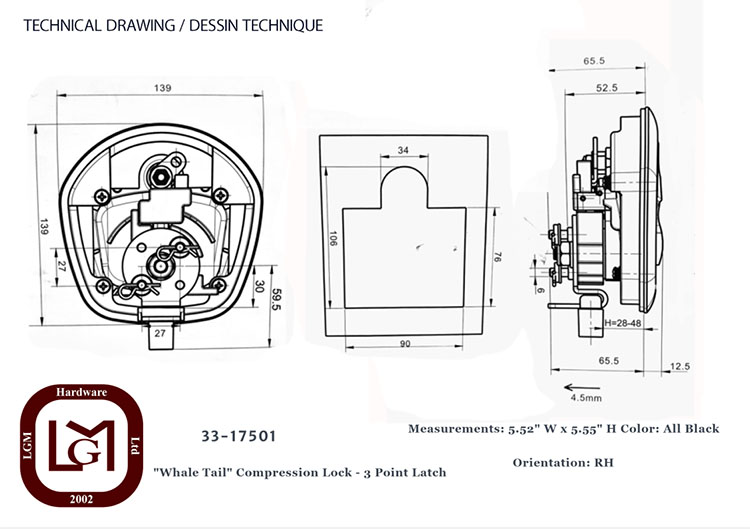

33 17501 Technical Drawing
Click photo to make larger

Accessories:

Replacement Parts:
Product #Description:Technical Drawings
33-00201J201 Replacement Cylinder
33-00202J202 Replacement Cylinder
33-00203J203 Replacement Cylinder
33-00205J205 Replacement Cylinder
33-00206J206 Replacement Cylinder
33-00207J207 Replacement Cylinder
33-00208J208 Replacement Cylinder
33-00210J210 Replacement Cylinder
33-00223J223 Replacement Cylinder
33-18002Zinc Backing Plate for Nylon Roller
33-18400Replacement Nylon Roller Cam

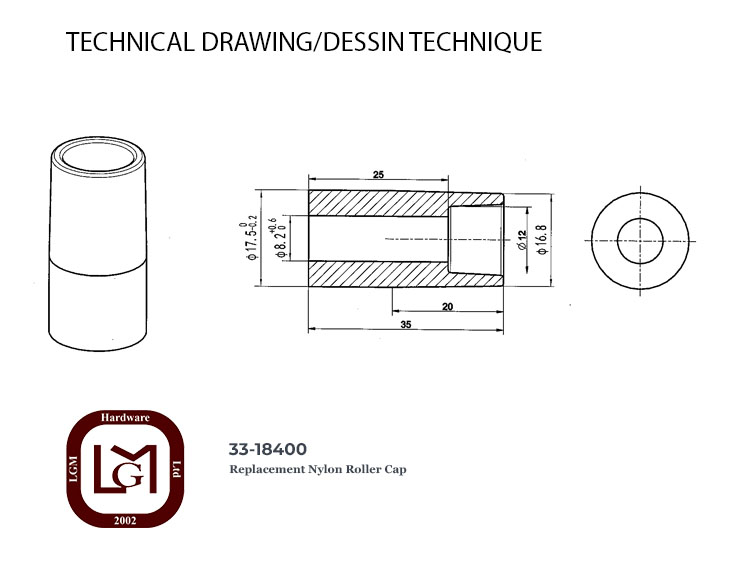

33 18400 Technical Drawing
Click image to make larger
33-18202Zinc Screw for Nylon Roller Cam
66-18406Rubber Seat Gasket for Whale Tail

Additional information

Item #

33-00201, 33-00202, 33-00203, 33-00205, 33-00206, 33-00207, 33-00208, 33-00210, 33-00223, 33-17501, 33-18002, 33-18202, 33-18400, 33-18431, 33-18903, 33-19206, 33-19606, 66-18406
