Zinc Die Cast Cam Locks

33 18431 33 17501 Picture “Whale Tail” Compression Lock – 3 Point Latch
44 23704 Product Slotted Or Screw Driver Type Cam Lock

Stainless Steel Face
Hex Nut – Screw-On
90 Degree Rotation

See table below for more details.

Item # 44-40004 44-40203 44-41004 44-40403 Categories: ,

Description



Product #Length:Key Code:CAM:Material:Description:Technical Drawing:
44-391035/8"YesChrome FaceHex Nut
Screw-On
90 Degree Rotation

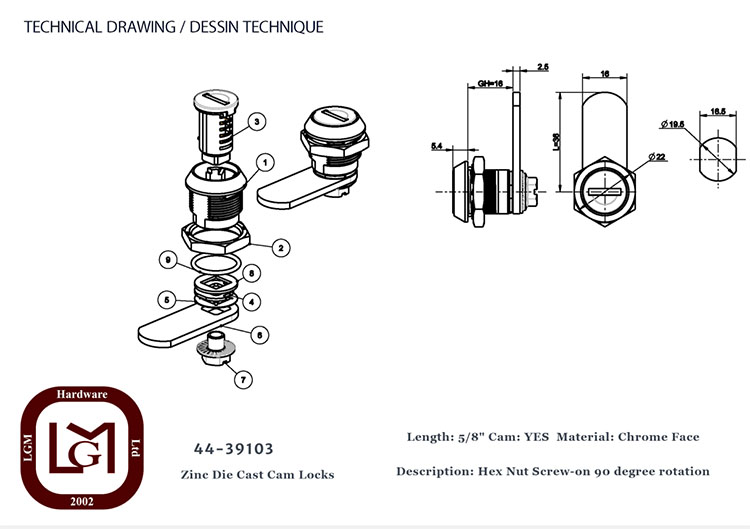

44 39103 Technical Drawing
Click photo to make larger
44-400045/8"CH751NoStainless Steel FaceHex Nut
Screw-On
90 Degree Rotation

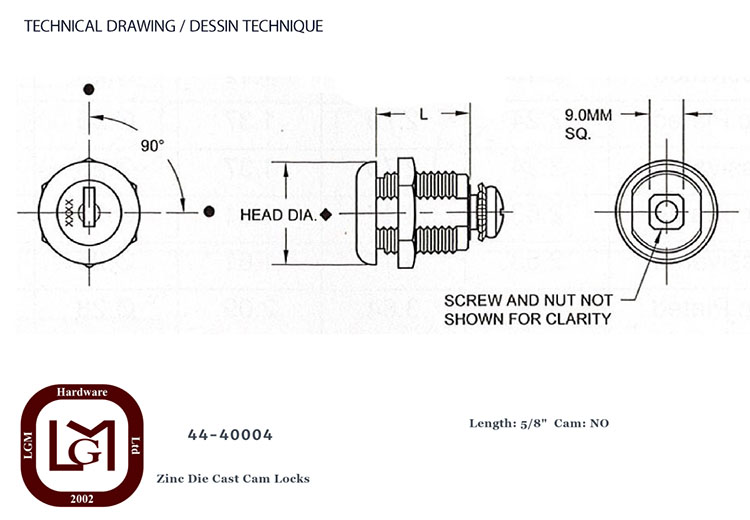

44 40004 Technical Drawing
Click photo to make larger
44-402037/8"YesStainless Steel FaceHex Nut
Screw-On
90 Degree Rotation

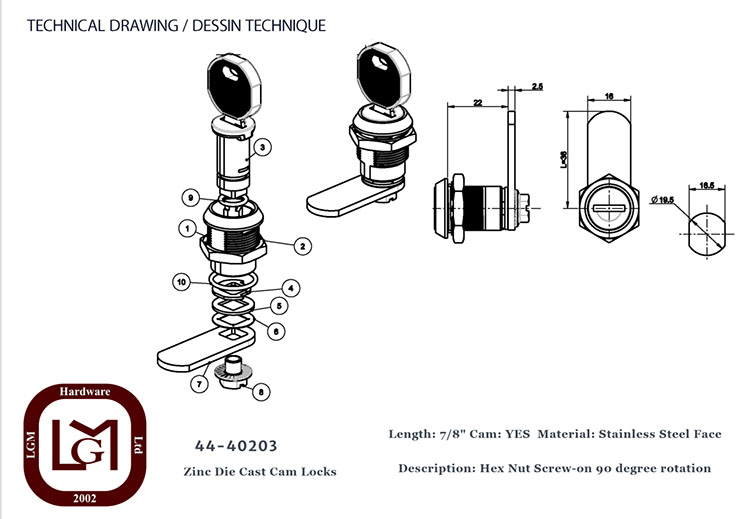

44 40203 Technical Drawing
Click photo to make larger
44-410041 1/8" CH751NoStainless Steel FaceHex Nut
Screw-On
90 Degree Rotation
44-404031 1/8" YesStainless Steel FaceHex Nut
Screw-On
90 Degree Rotation

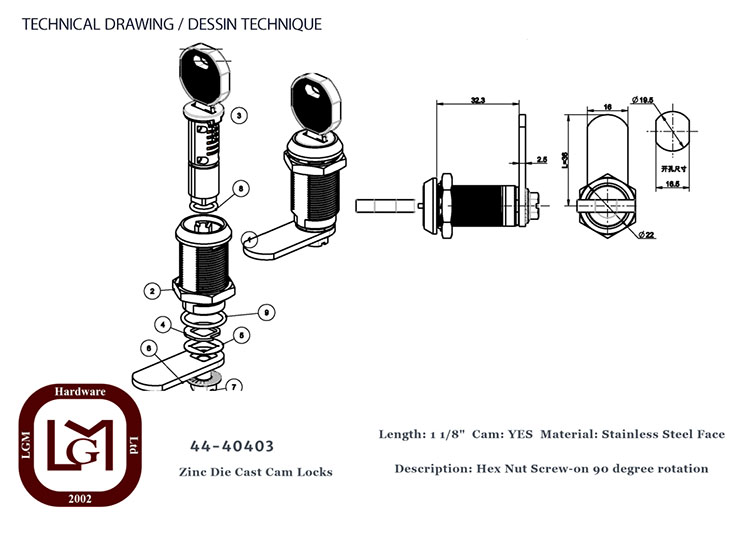

44 40403 Technical Drawing
Click photo to make larger
