Stainless Steel Strap Hinge

11 68105 Product Flush Aluminum Hinge
11 40005 Picture 4 NB Flush, Narrow Butt Hinge

See below table for details

Item # 11-84604, 11-10404, 11-95104, 11-20804 Categories: ,

Description

Product #Name:Description:Technical Drawing:
11-104045" Stainless Steel Hinge

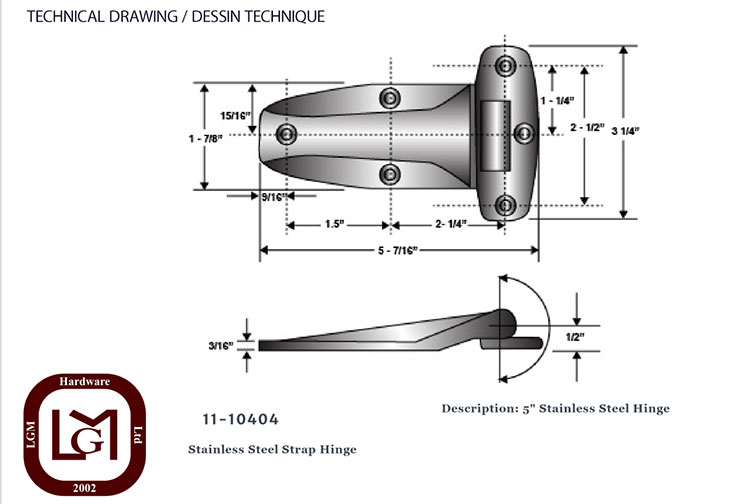

11 10404 Technical Drawing
Click photo to make larger
11-208045.4" Stainless Steel Hinge

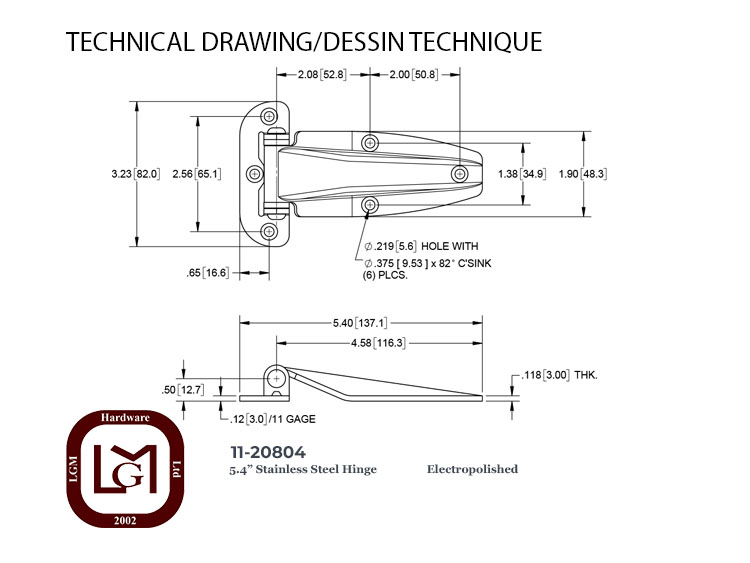

11 20804 Technical Drawing
Click photo to make larger

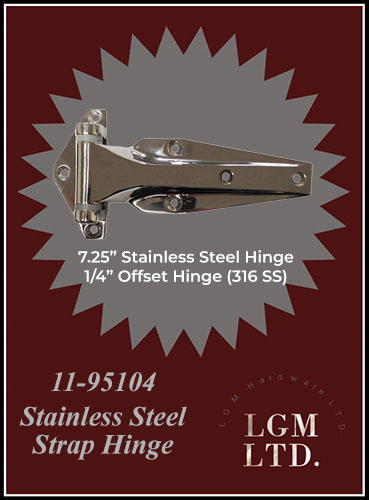

11-951047.25" Stainless Steel Hinge 1/4" Offset Hinge (316 SS)

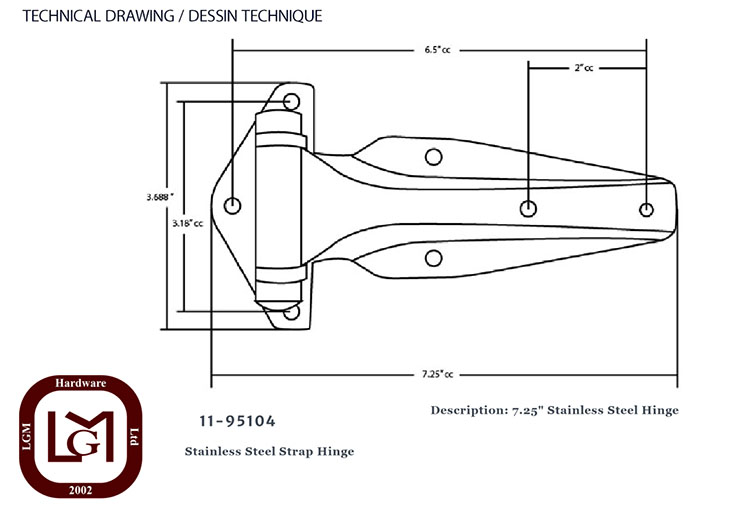

11 95104 Technical Drawing
Click photo to make larger
11-8460412.87" Stainless Steel Strap Hinge

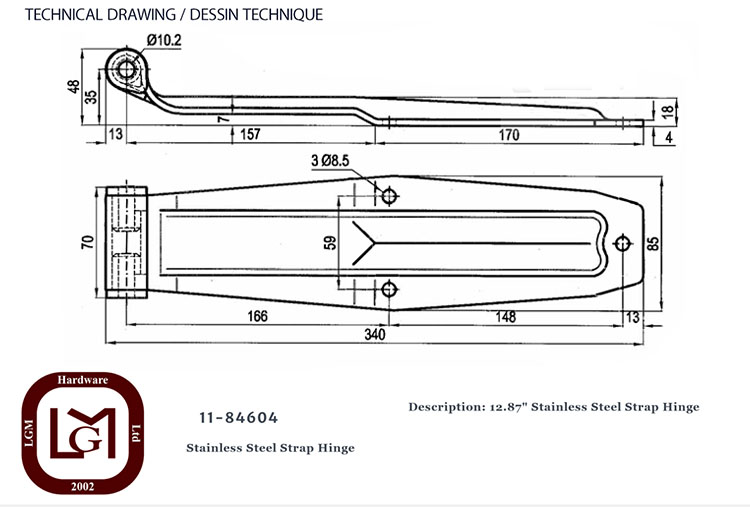

11 84604 Technical Drawing
Click photo to make larger

Additional information

Item #

11-10404, 11-84604, 11-95104
