Product # Name: Measurement: Technical Drawing:

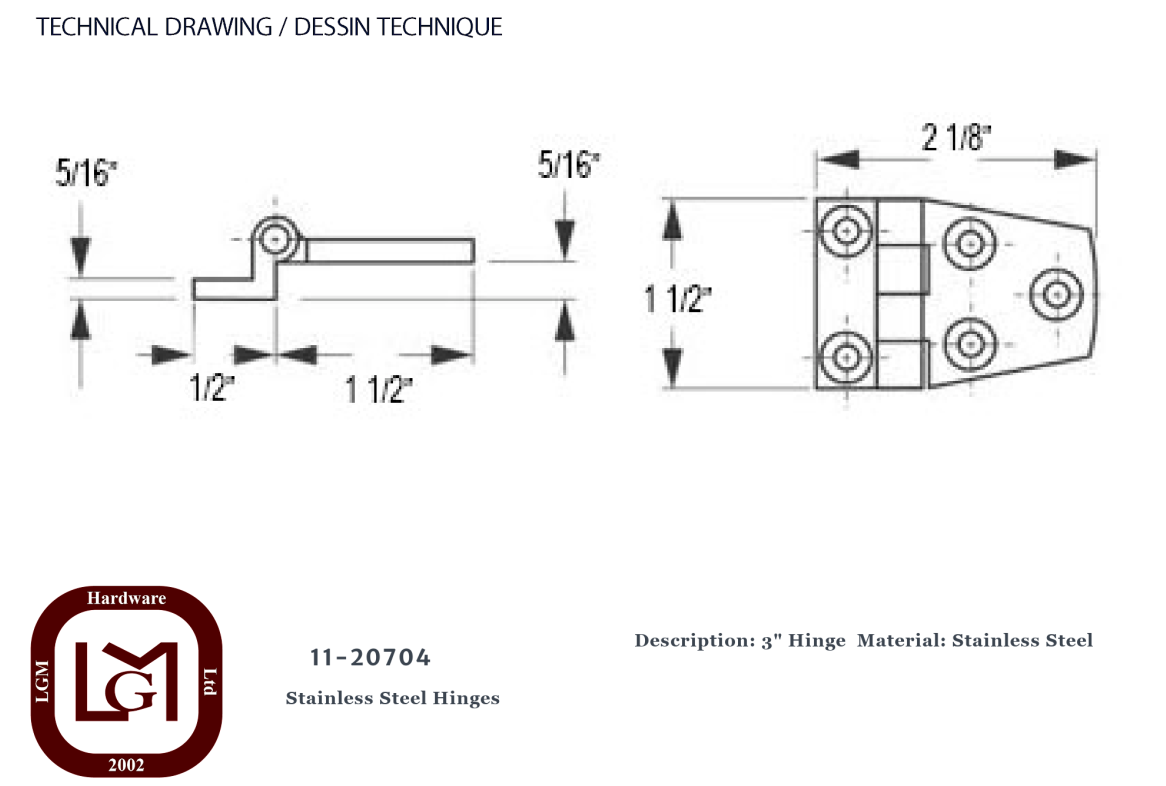

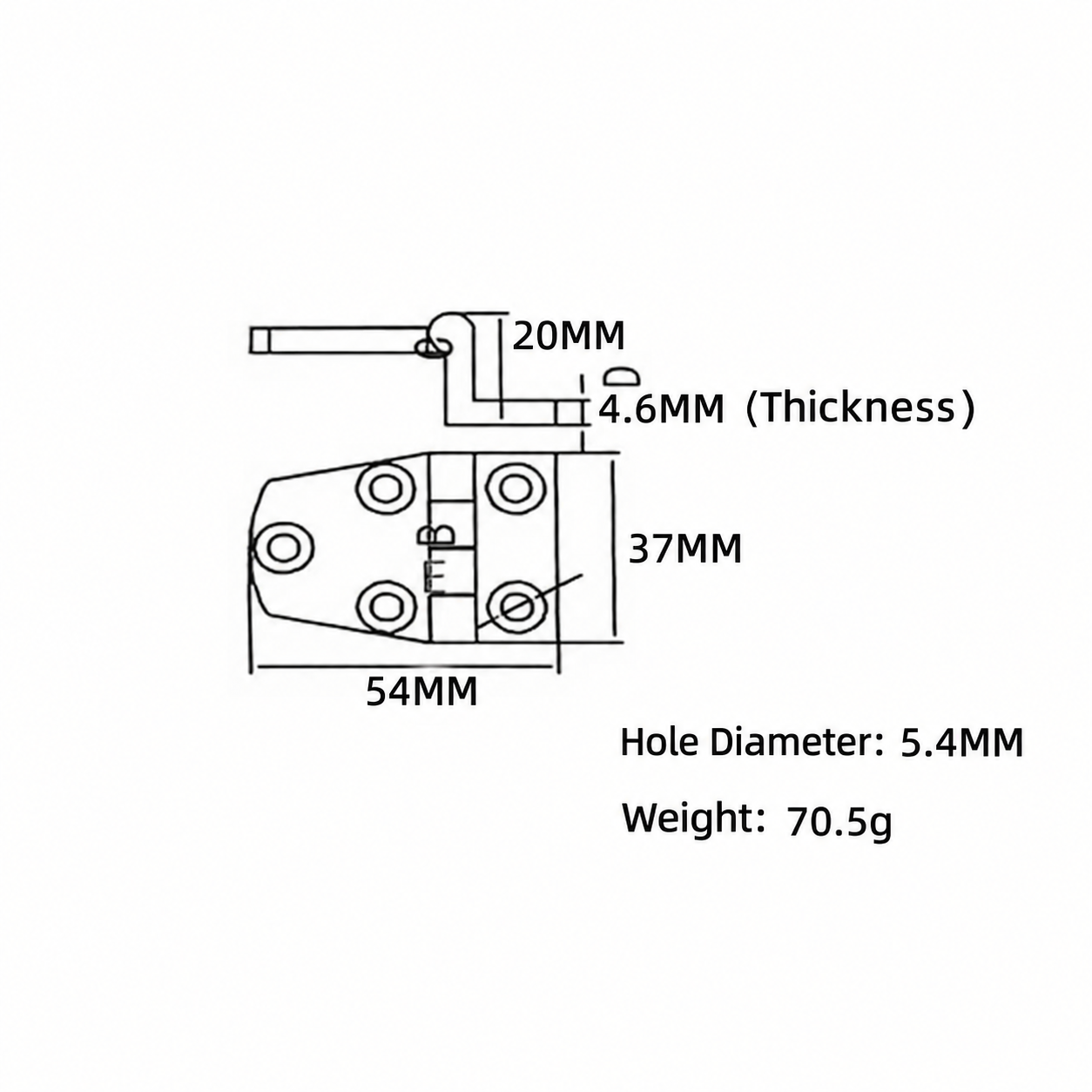

11-20704 2 1/8" Offset Hinge - Stainless Steel Length: 2 1/8" (54mm)
Width: 1 7/16" (37mm)
Offset Height: 3/4" (20mm)
Thickness: 3/16" (4.6mm)
Hole Diameter: 7/32" (5.4mm)
Weight: 70.5g

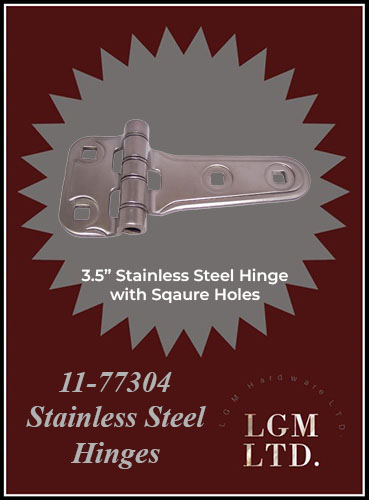

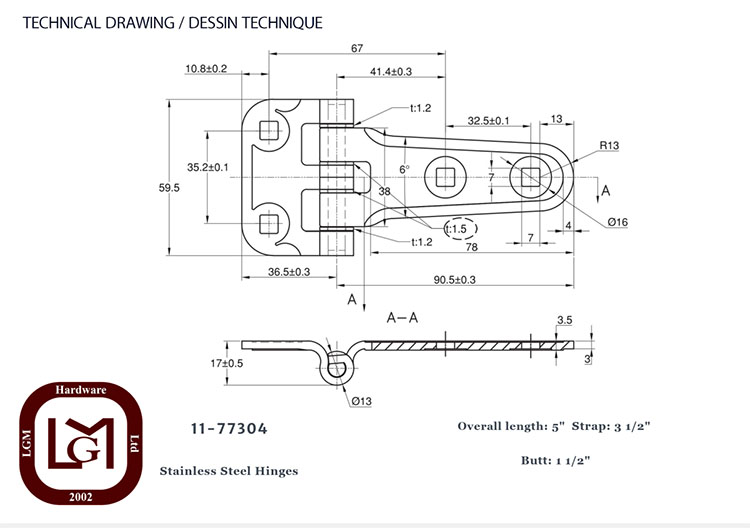

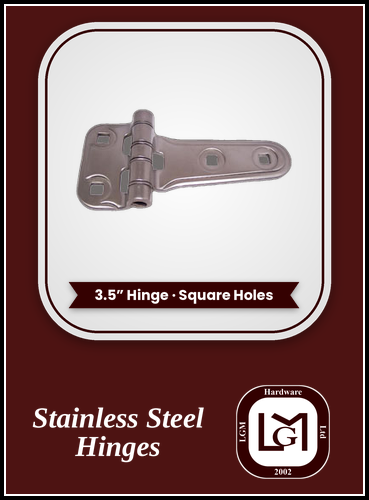

11-77304 3.5″ Hinge – Stainless Steel (Square Holes) Overall Length: 5"
Strap Length: 3 1/2"
Butt Length: 1 1/2"

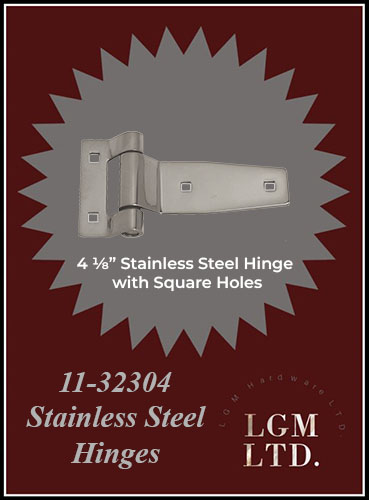

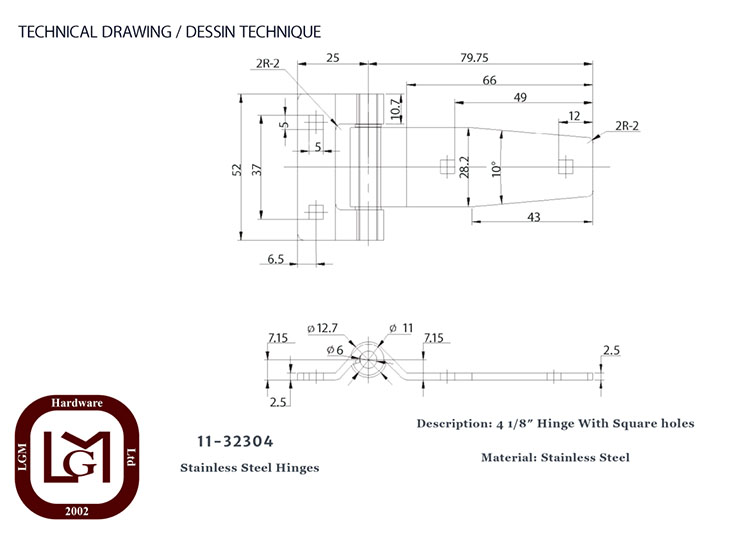

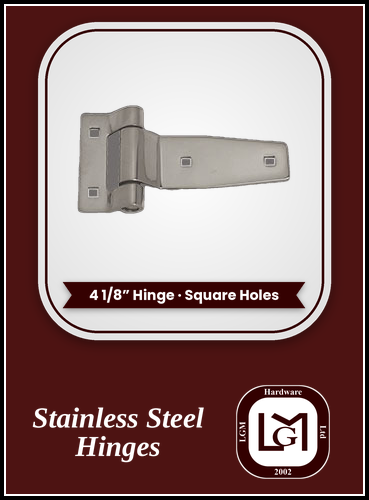

11-32304 4 1/8″ Hinge – Stainless Steel (Square holes) Overall Length: 4 1/8"
Strap Length: 3 1/8"
Butt Length: 1"

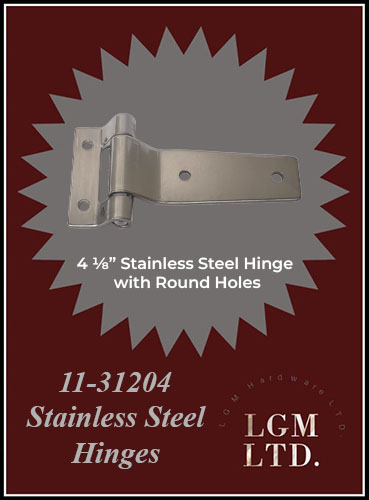

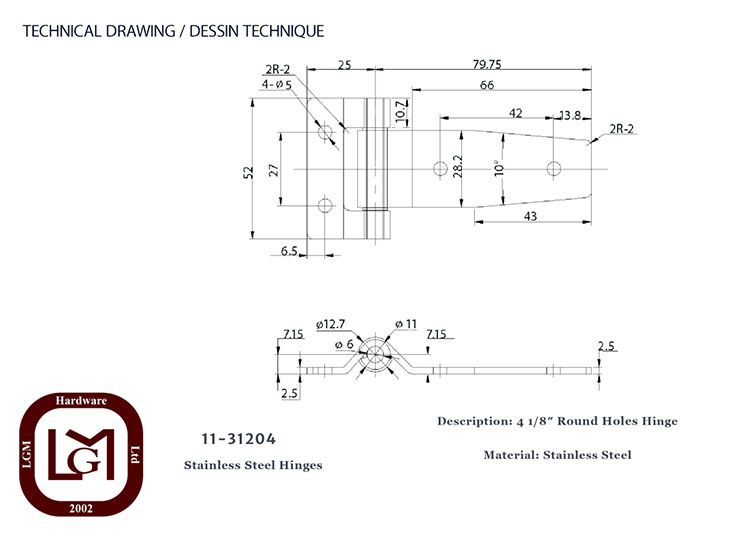

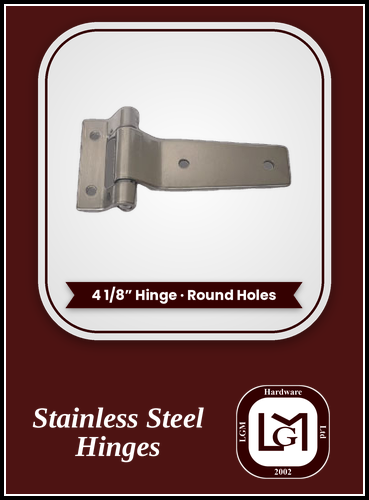

11-31204 4 1/8″ Hinge – Stainless Steel (Round Holes) Overall Length: 4 1/8"
Strap Length: 3 1/8"
Butt Length: 1"

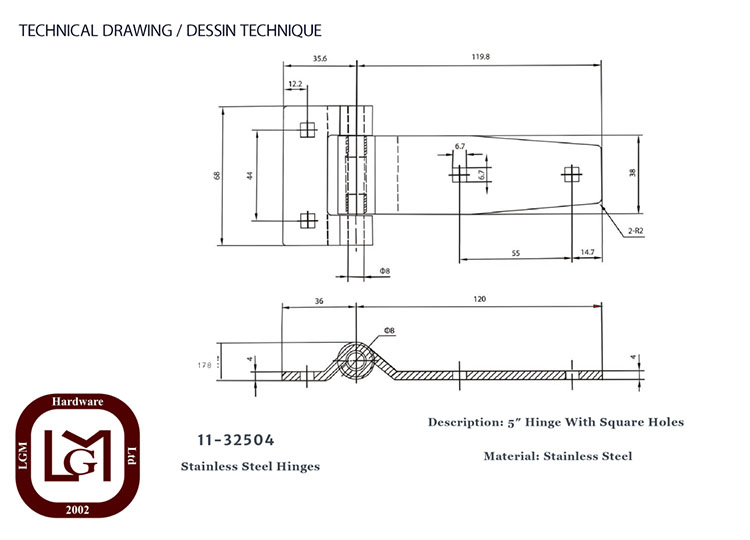

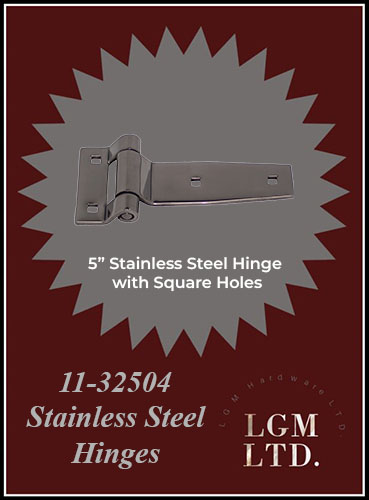

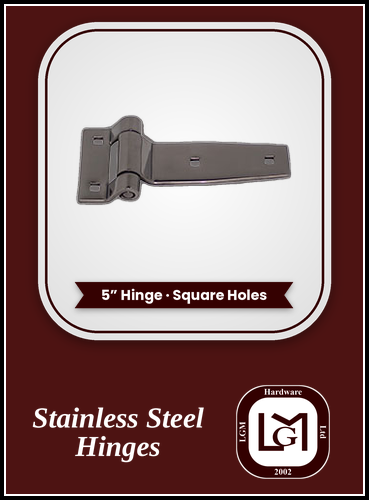

11-32504 5″ Hinge – Stainless Steel (Square Holes) Overall Length: 6 1/8"
Strap Length: 5 5/8"
Butt Length: 1 1/2"

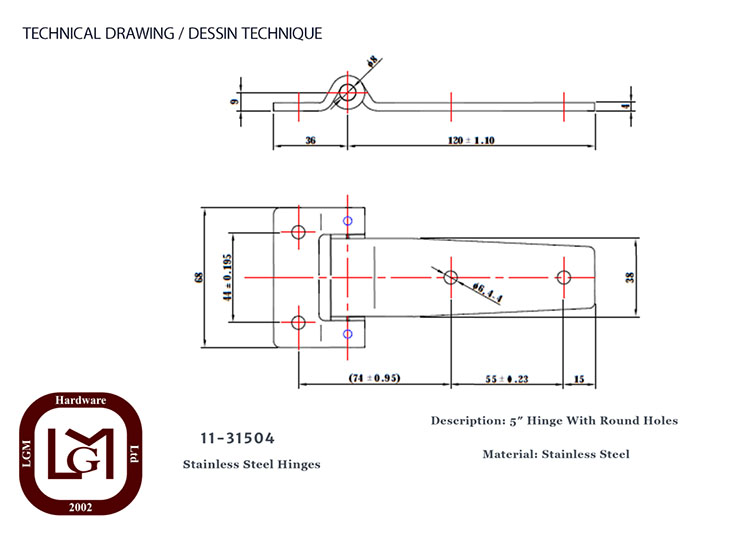

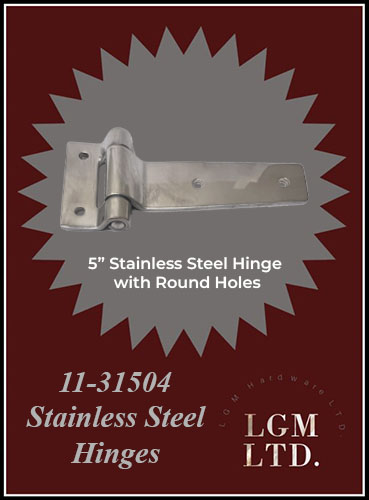

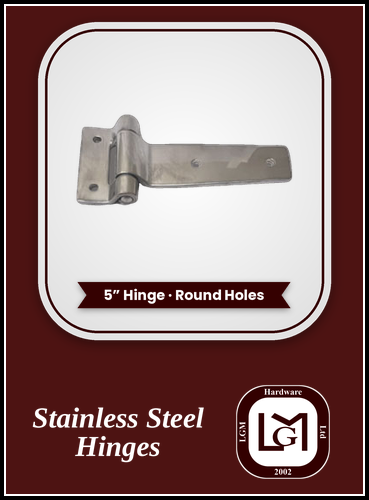

11-31504 5″ Hinge – Stainless Steel (Round Holes) Overall Length: 6 1/8"
Strap Length: 5 5/8"
Butt Length: 1 1/2"

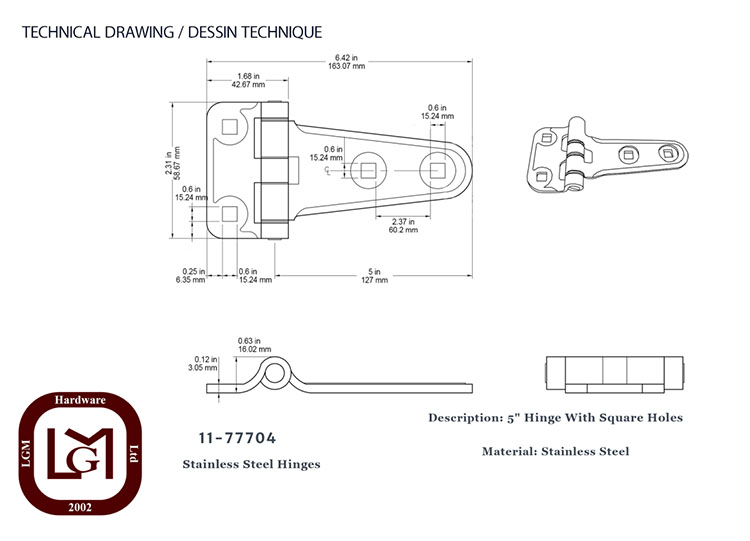

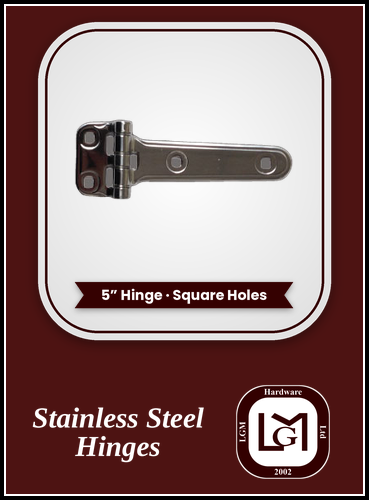

11-77704 5" Stainless Steel Hinge (Square Holes) Overall Length: 6 1/2"
Strap Length: 5"
Butt Length: 1 3/8"

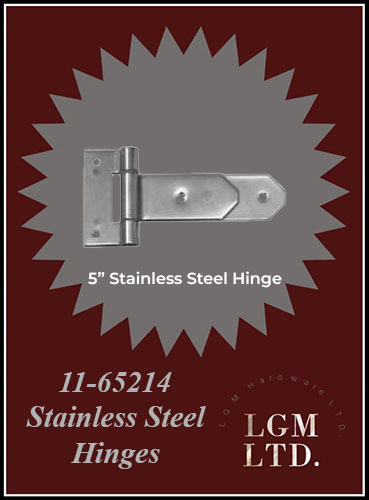

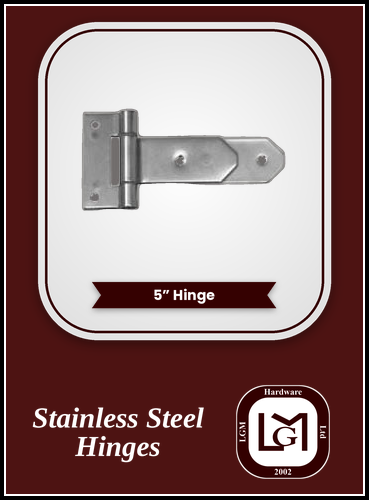

11-65214 5″ Hinge – Stainless Steel Overall Length: 6.45"
Strap Length: 5"

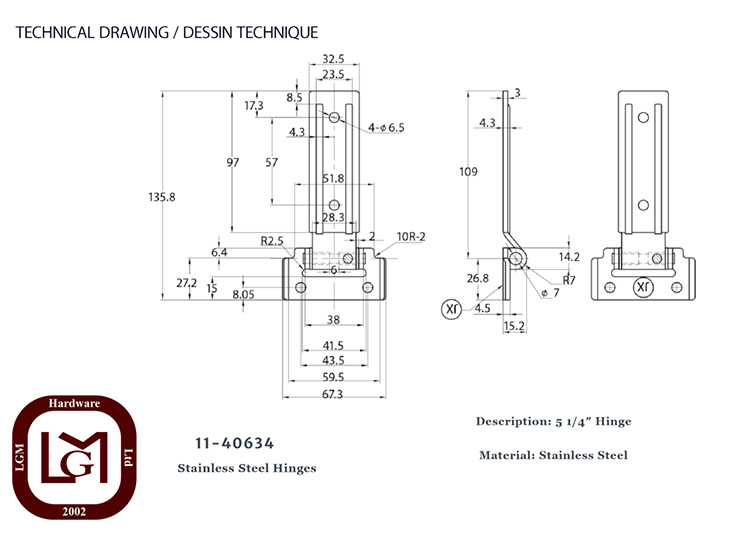

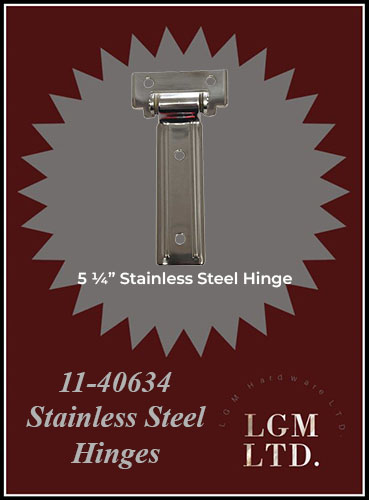

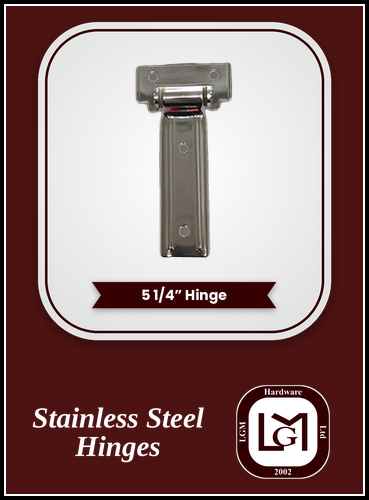

11-40634 5 1/4″ Hinge – Stainless Steel Overall Length: 5 1/4"

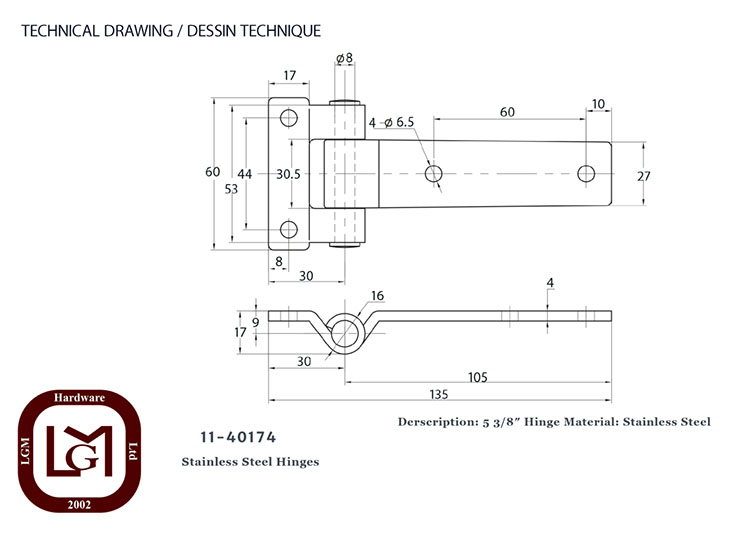

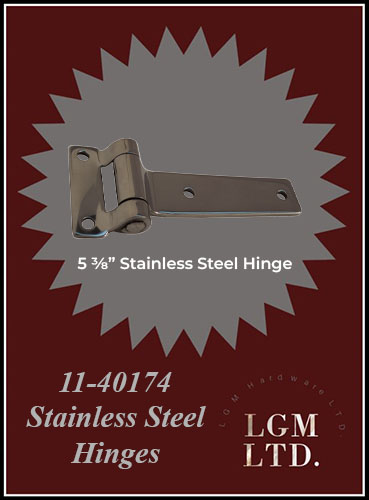

11-40174 5 3/8″ Hinge – Stainless Steel Overall Length: 5 3/8"

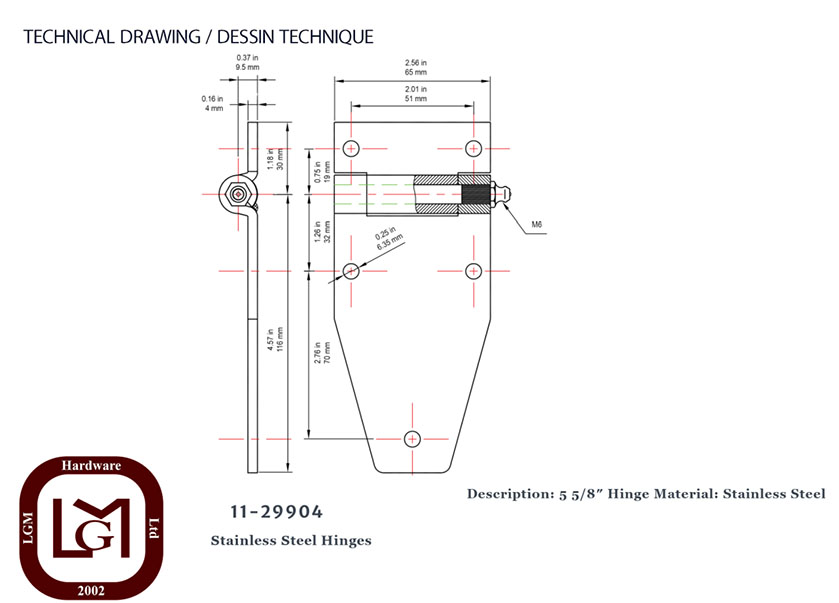

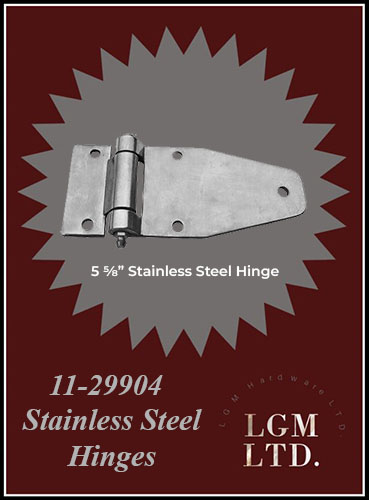

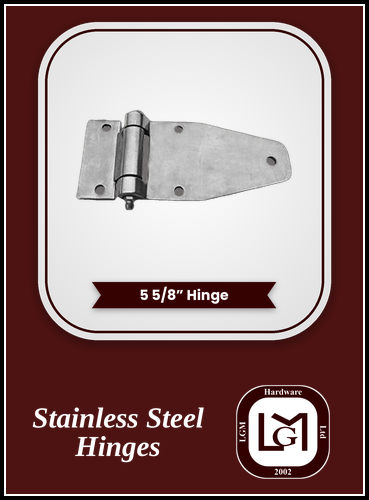

11-29904 5 5/8″ Hinge – Stainless Steel Overall Length: 5 5/8"

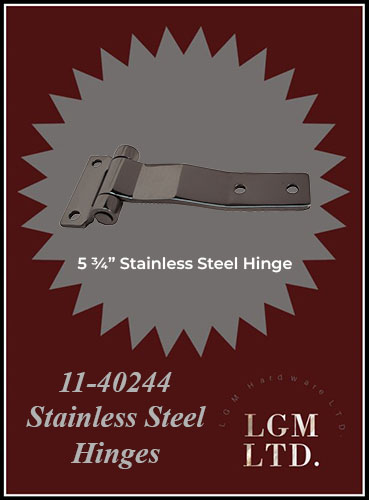

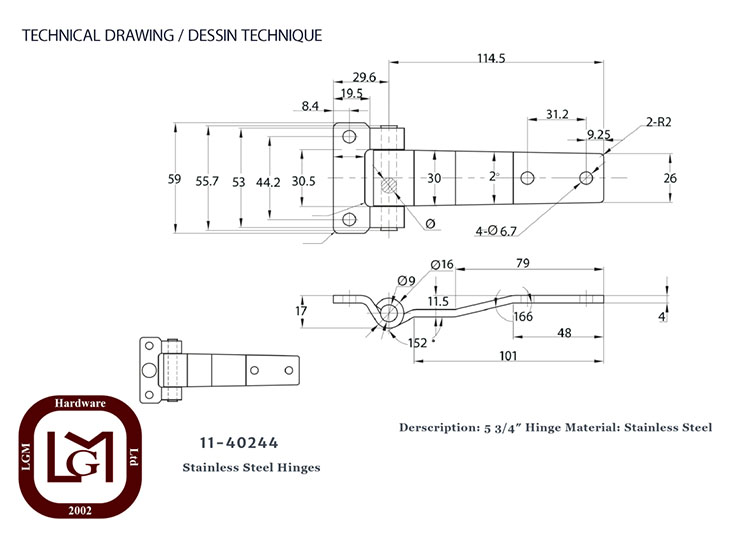

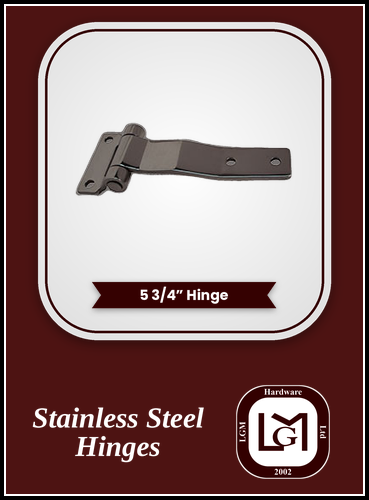

11-40244 5 3/4″ Hinge – Stainless Steel Overall Length: 5 3/4"

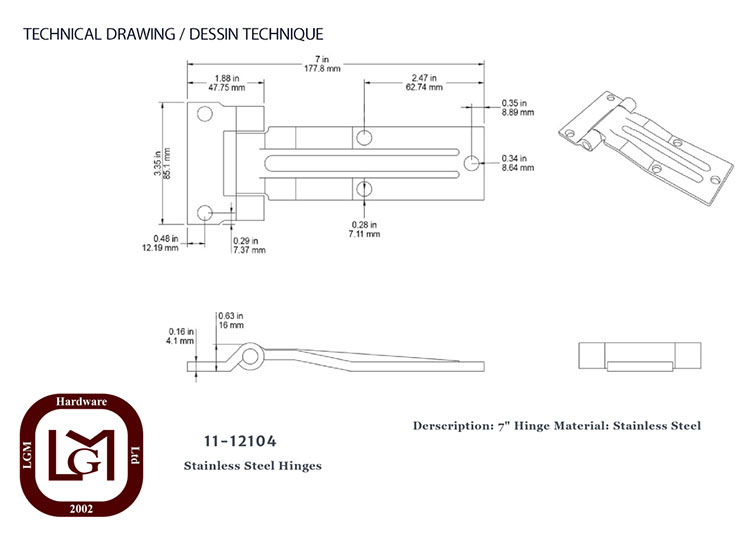

11-12104 7" Hinge - Stainless Steel Overall Length: 7"
Butt Length: 3.35"

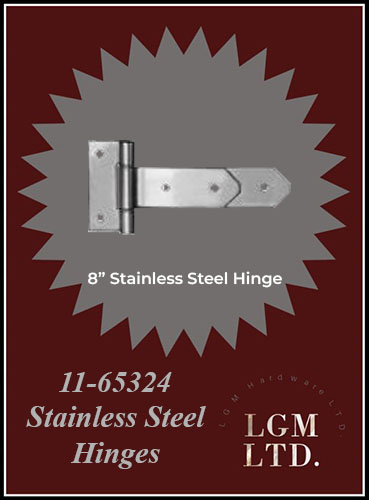

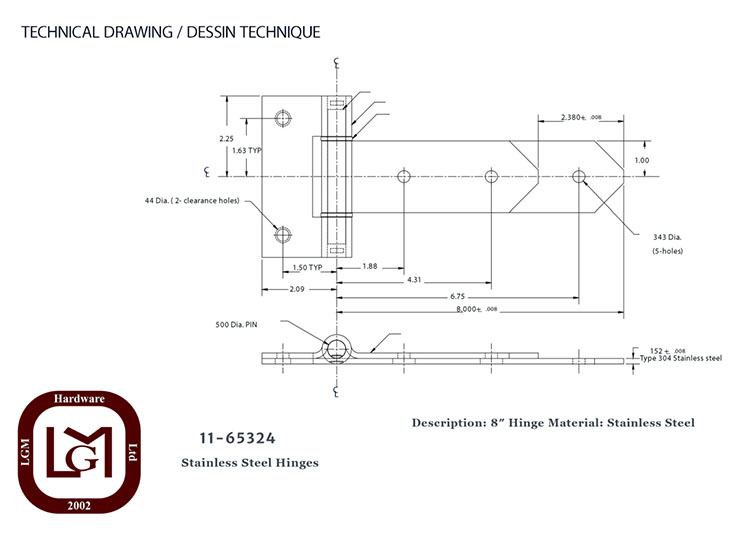

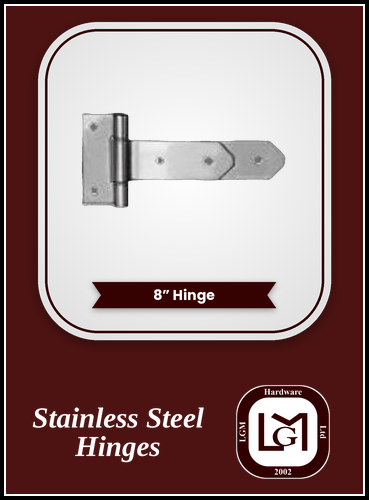

11-65324 8″ Hinge – Stainless Steel Overall Length: 10 1/8"
Strap Length: 8"
Butt Length: 2 1/8"

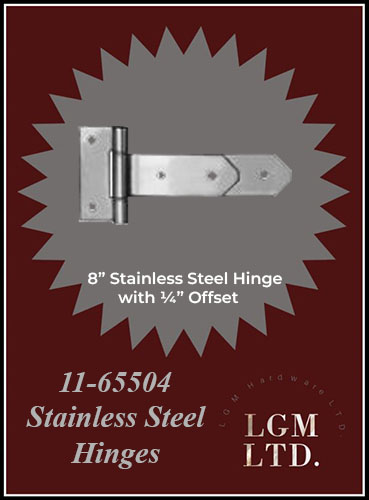

11-65504 8″ Stainless Steel Hinge – 1/4″ Offset Offset: 1/4"
Overall Length: 10 1/8"
Strap Length: 8"
Butt Length: 2 1/8"
| Item # | 11-12104, 11-20504, 11-20704, 11-20904, 11-29904, 11-31204, 11-31504, 11-32304, 11-32504, 11-40174, 11-40634, 11-65214, 11-65324, 11-65504, 11-77304, 11-77704 |
|---|
