300-500 lbs Drawer Slides
Full Extension Drawer Slides
All Drawer Slides are Sold as Pairs
- Description
Description
| Product # | Length: | Capacity: | Technical Drawing: |
|---|---|---|---|
| 44-29902 | 8" | 500lbs |  |
| 44-30002 | 10" | 500lbs |  |
| 44-33102 | 12" | 500lbs |  |

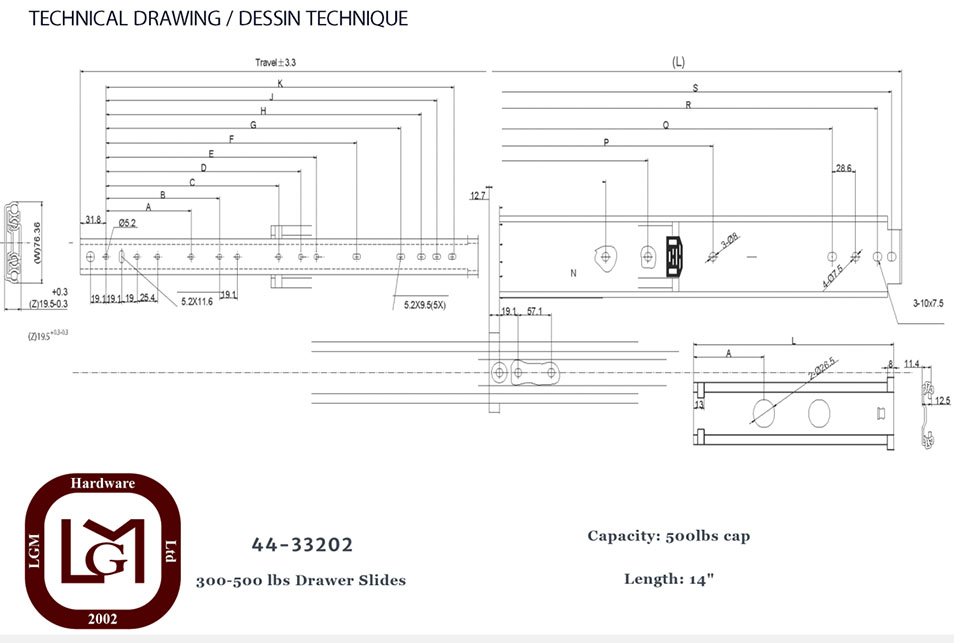

| 44-33202 | 14" | 500lbs |  |

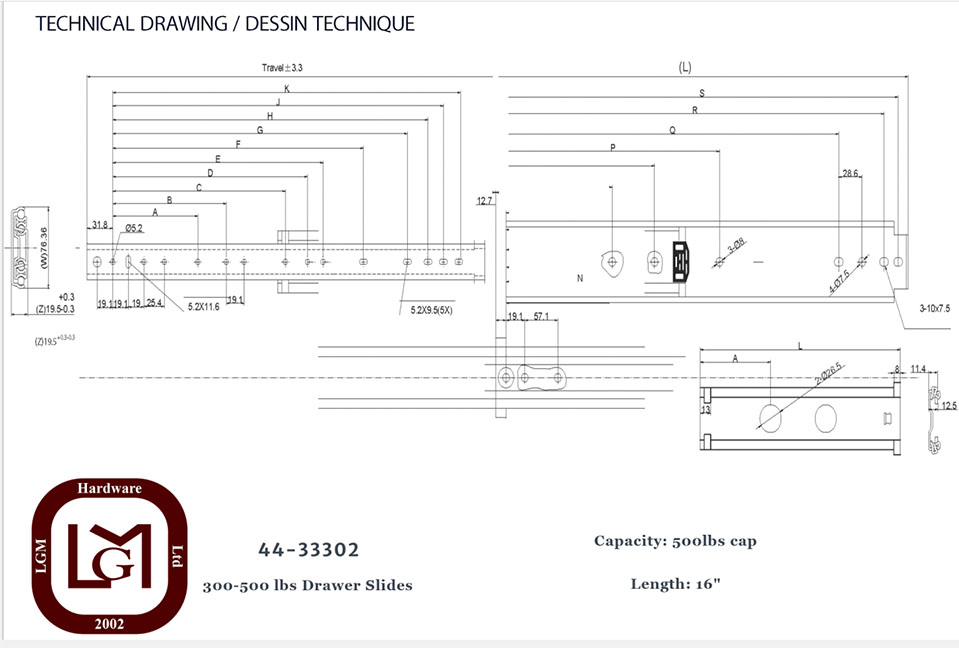

| 44-33302 | 16" | 500lbs |  |
| 44-33402 | 18" | 500lbs |  |
| 44-33502 | 20" | 460lbs |  |
| 44-33602 | 22" | 430lbs |  |
| 44-33702 | 24" | 410lbs |  |
| 44-33802 | 26" | 400lbs |  |
| 44-33902 | 28" | 390lbs |  |

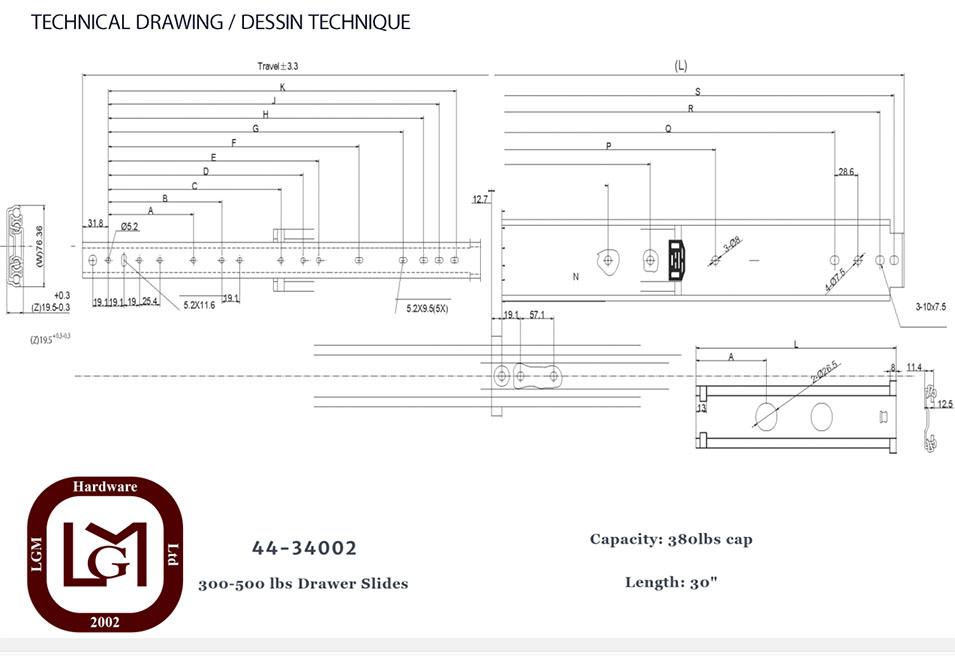

| 44-34002 | 30" | 380lbs |  |
| 44-80002 | 32" | 370lbs |  |
| 44-34202 | 34" | 360lbs |  |

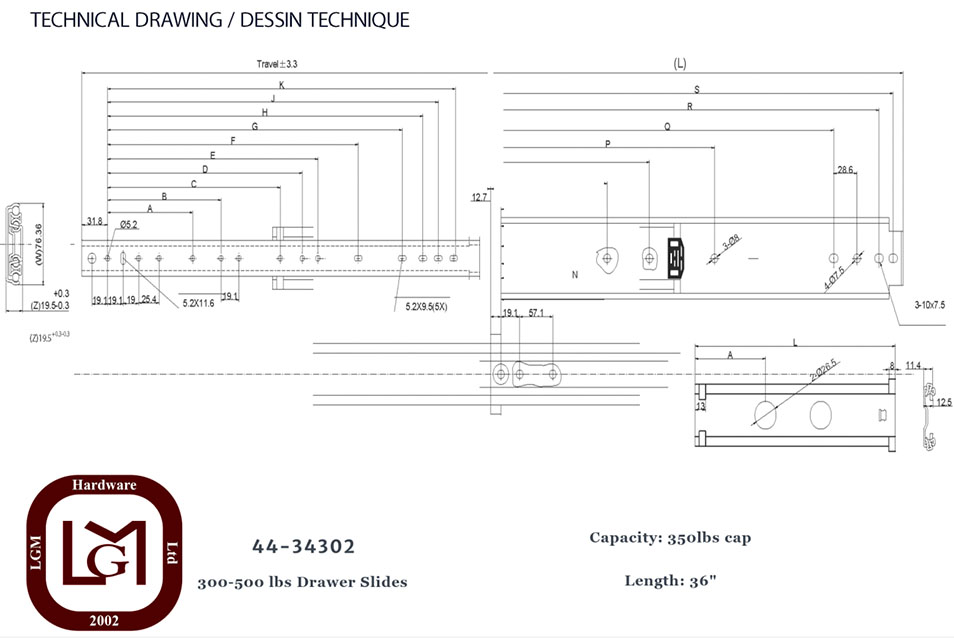

| 44-34302 | 36" | 350lbs |  |
| 44-34402 | 38" | 330lbs |  |
| 44-80102 | 40" | 320lbs |  |
| 44-34502 | 42" | 300lbs |  |
| 44-80302 | 44" | 290lbs |  |
| 44-34602 | 48" | 290lbs |  |
| 44-80702 | 54" | 179lbs |  |
| 44-80502 | 60" | 195lbs |  |
Test rate : 10 cycles per minute
Test cycles : 95 000 cycles
After 95000 cycles test, there was no loss of serviceability, and the drawer system can be operated normally.
