300-500 lbs – Lock In – Lock Out Drawer Slides
Full Extension Drawer Slides
All Drawer Slides are Sold as Pairs
SKU: 47-10202, 47-10402, 47-10602, 47-10802, 47-12002, 47-12202, 47-12402, 47-12802, 47-36002, 47-48002, 47-49002
Category: Drawer Slides
- Description
- Additional information
Description

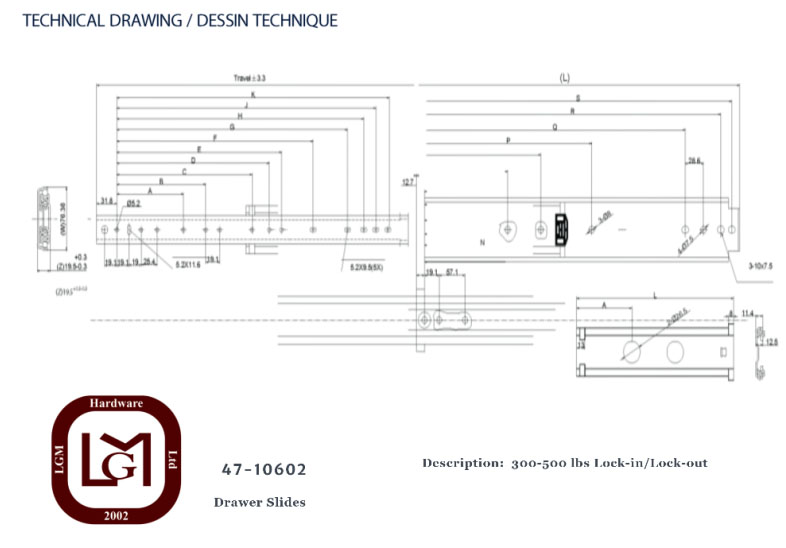

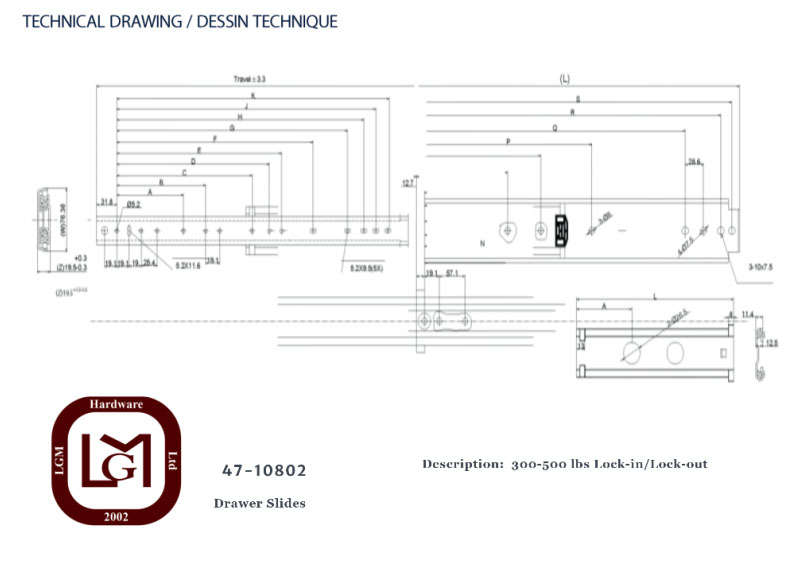

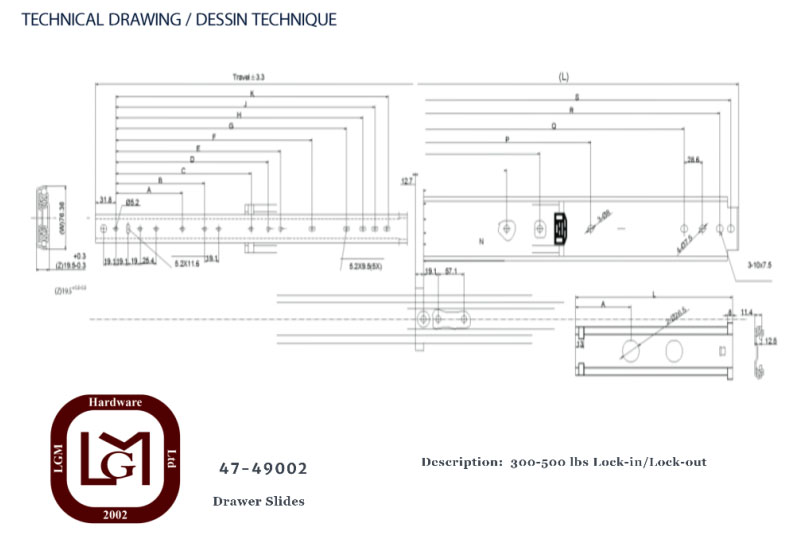

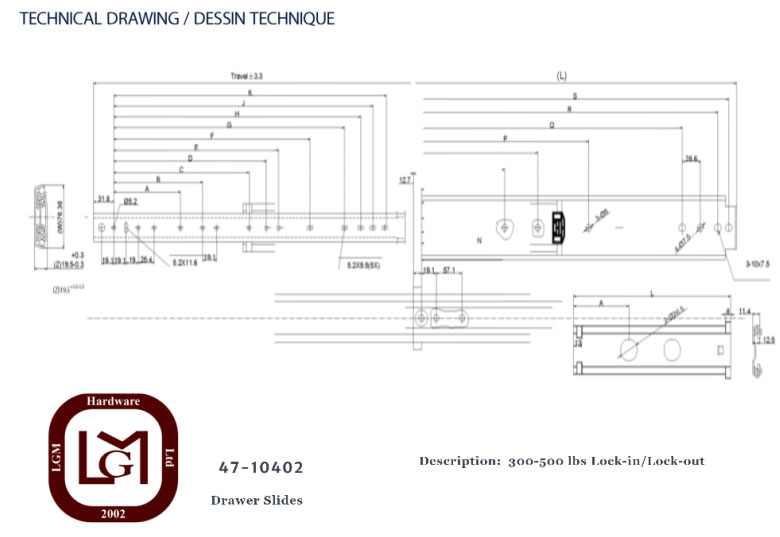

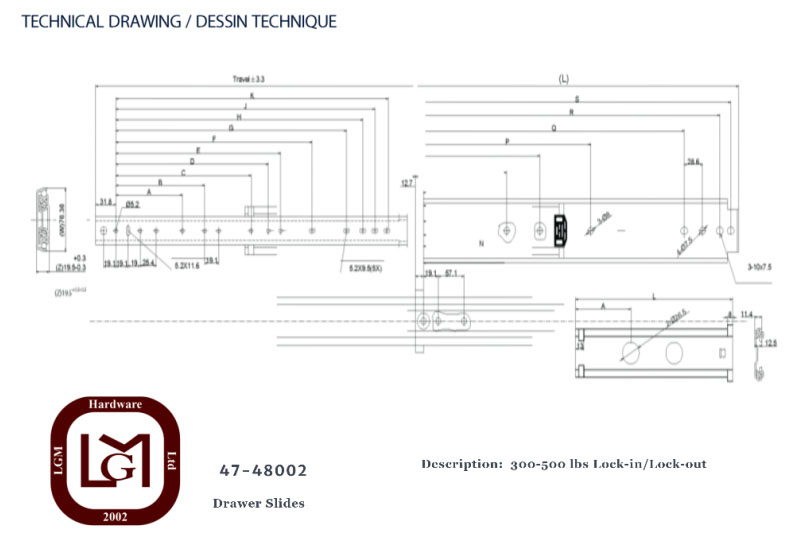

*All Drawer Slides are Sold as PairsProduct # | Length: | Capacity: | Technical Drawing: |
---|---|---|---|
47-10202 | 12" | 500lbs | |
47-10402 | 14" | 500lbs | |
47-10602 | 16" | 500lbs | |
47-10802 | 18" | 500lbs | |
47-12002 | 20" | 460lbs | |
47-12202 | 22" | 430lbs | |
47-12402 | 24" | 410lbs | |
47-12802 | 28" | 390lbs | |
47-36002 | 36" | 350lbs | |
47-48002 | 48" | 290lbs | |
47-49002 | 60" | 195lbs |
Test Rate : 10 cycles per minute
Test Cycles : 95 000 cycles
After 95000 cycles test, there was no loss of serviceability, and the drawer system can be operated normally.
Additional information
Item # | 47-10202, 47-10402, 47-10602, 47-10802, 47-12002, 47-12202, 47-12402, 47-12802, 47-36002, 47-48002, 47-49002 |
---|
