Ball Stud / Sockets

77 10102 Product Brackets with Ball Studs
Gas Spring Technical Data Gas Spring Technical Data
Item # 77-42102, 77-73802, 77-73902, 77-70108, 77-73402, 77-70402, 77-70602, 77-70362 Categories: ,

Description

Product #Product Images:Ball Stud Size:Description:
77-4210277 42102 Table Image13mm Clip
77-7380277 73802 Table Image13 MMBall Socket

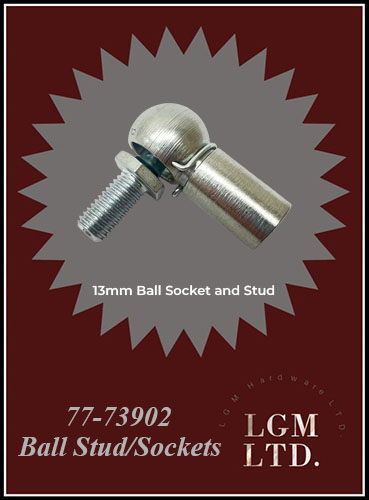

77-7390277 73902 Table Image13 MMBall Socket and Stud
77-7010877 70108 Table Image10mm Screw on Nylon Replacement Socket
77-7340277 73402 Table Image13mm Ball Socket ONLY

Ball Stud:

Product #Description:Product Image:Technical Drawing:

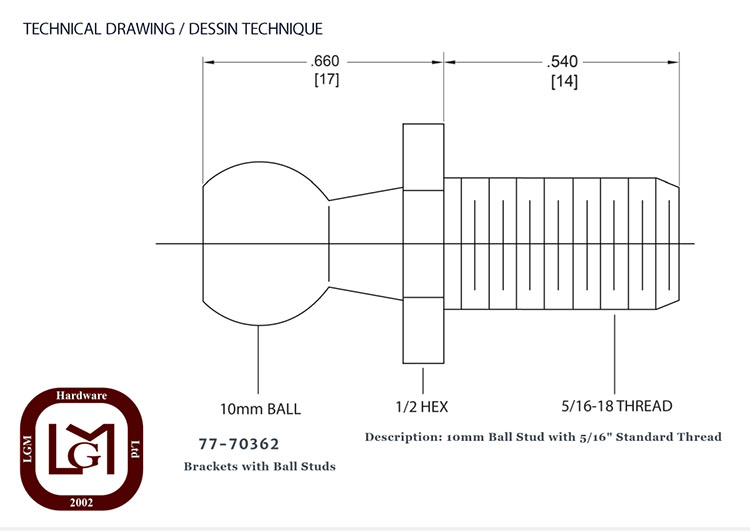

77-7036210mm Ball Stud with 5/16" Standard Thread
77 70362 Technical Drawing
Click to make photo larger
77-7040213mm Ball Stud with 5/16" Standard Thread

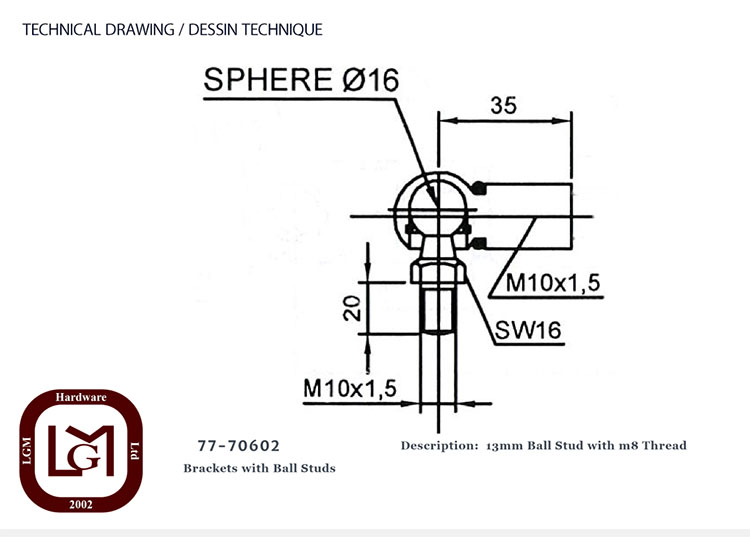

77-7060213mm Ball Stud with m8 Thread
77 70602 Technical Drawing
Click to make photo larger
