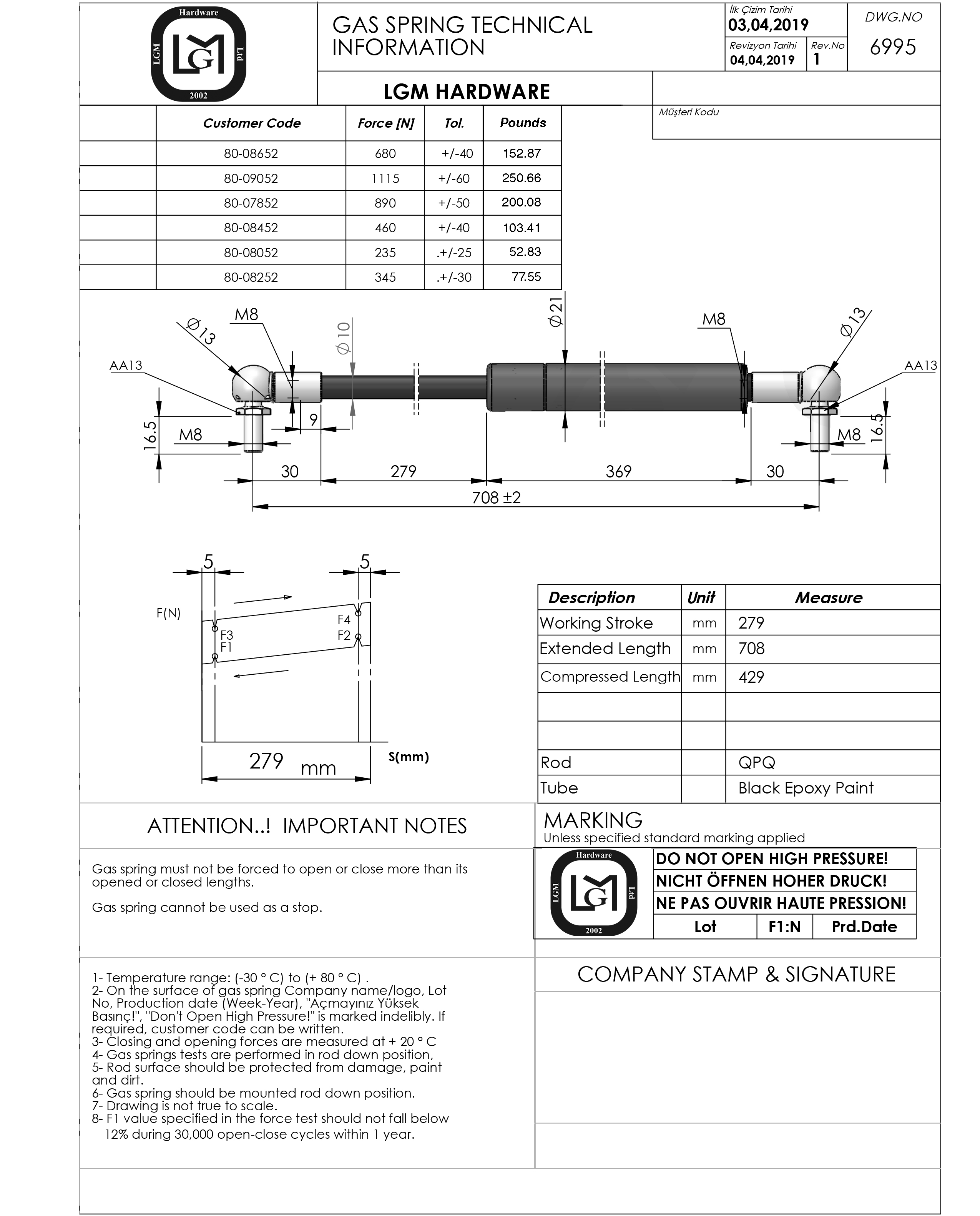

80 08052 80 09052 Picture
80 08052 80 09052 Picture

27.875″ Extended C.C. – 17″ Compressed – 10mm Rod 21mm Tube

80 01052 80 01952 Picture 20.625″ Extended C.C. – 13″ Compressed – 10mm Rod 21mm Tube
80 18702 80 19902 Picture 35.68″ Extended C.C. – 19.58″ Compressed – 10mm Rod 21mm Tube

Complete with 13mm steel ball stud and steel socket

SKU: 80-08052, 80-08252, 80-08452, 80-08652, 80-07852, 80-09052 Categories: ,

Description

Product #Capacity:Extended C.C:Compressed:Technical Drawing:
80-0805250lbs 27.875"-17"

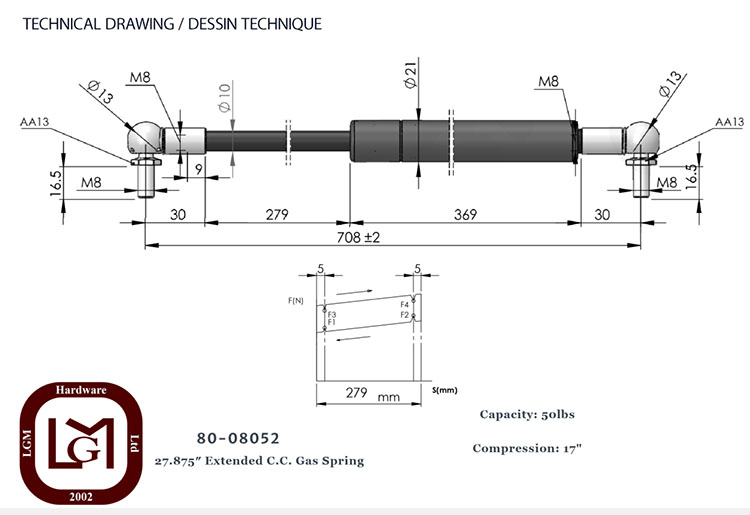

80 08052 Technical Drawing
Click to make photo Larger.
80-0825275lbs 27.875"17"

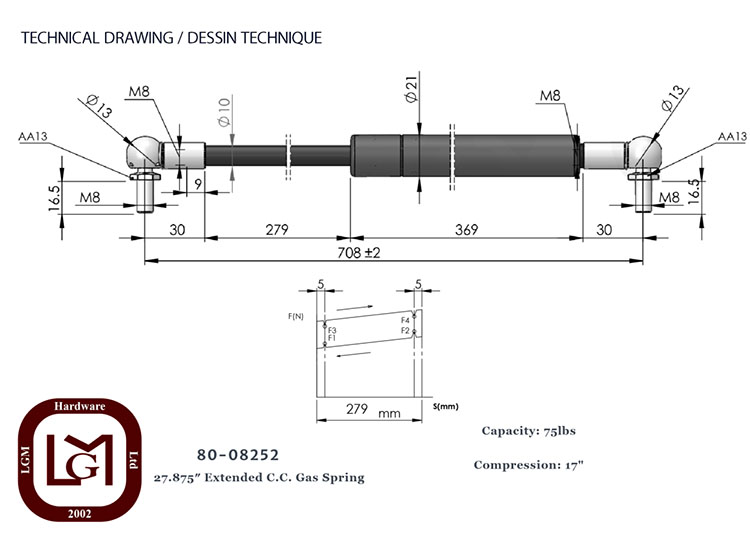

80 08252 Technical Drawing
Click to make photo Larger.
80-08452100lbs 27.875" 17"
80 08452 Technical Drawing
Click to make photo Larger.
80-08652150lbs 27.875" 17"

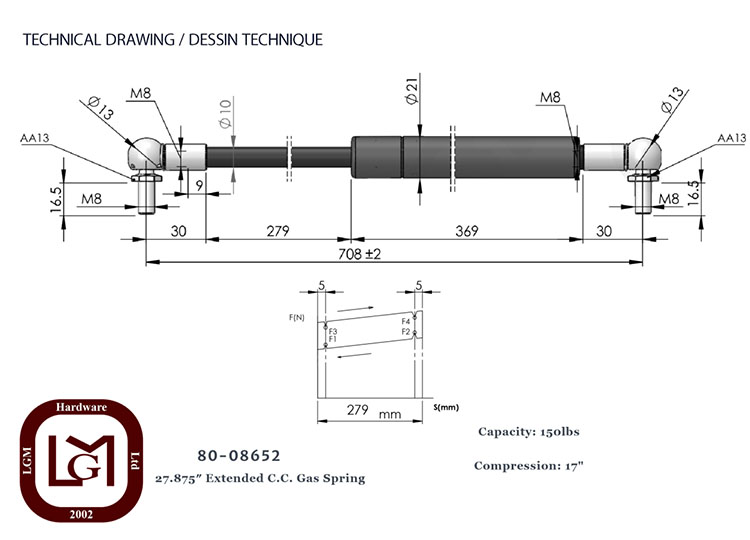

80 08652 Technical Drawing
Click to make photo Larger.
80-07852200lbs 27.875"17"

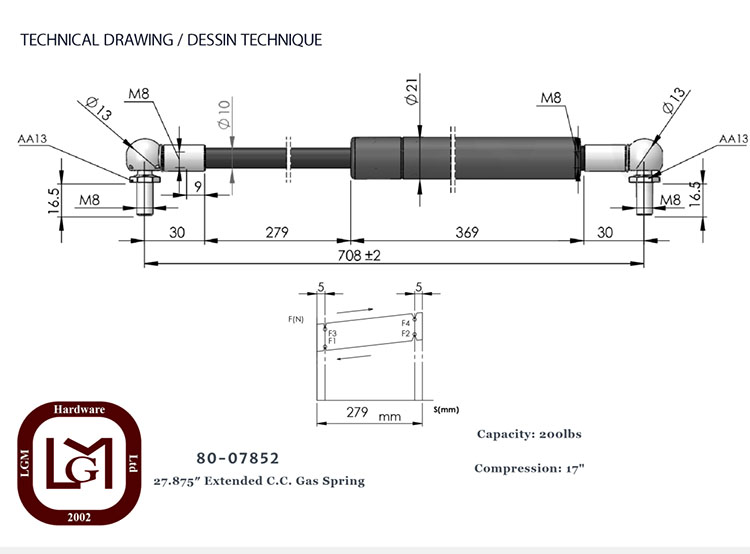

80 07852 Technical Drawing
Click to make photo Larger.
80-09052250lbs 27.875"17"
80 09052 Technical Drawing
Click to make photo Larger.

L1 = 11″ L2 = 27.875″ L3 = 16.875″
Complete with 13mm steel ball stud and steel socket

Additional information

Item #

80-07852, 80-08052, 80-08252, 80-08452, 80-08652, 80-09052
