Closed End Connector

57 76100 5779100 Picture Twist-On Wire Connector
57 22100 57 22300 Picture Nylon Butt Connector

See table below for details.

Item # 57-75100, 57-75200, 57-75300 Categories: ,

Description

Product #Length (mm):Width (mm):AWG:Color:Pack:Housing Material: Sleeve Material:Max, Electrical Rating:Certificates:Technical Drawing:
57-7510020.0mm9.5mm22-18White100Nylon 6/6Aluminum,
Tin Plate		105C, 300 VoltsUL 94V-2

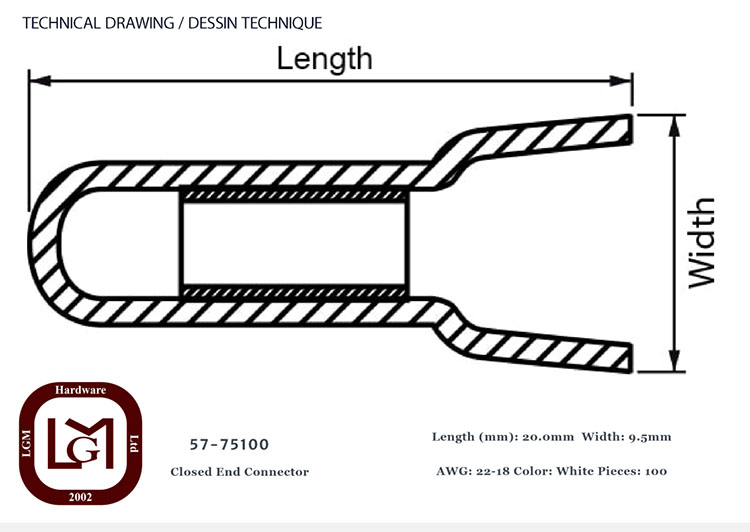

57 75100 Technical Drawing
Click photo to make Larger.
57-7520025.5mm12.5mm16-14White100Nylon 6/6Aluminum,
Tin Plate		105C, 300 VoltsUL 94V-2
57 75200 Technical Drawing
Click photo to make Larger.
57-7530027.7mm14.3mm12-10White100Nylon 6/6Aluminum,
Tin Plate		105C, 300 VoltsUL 94V-2

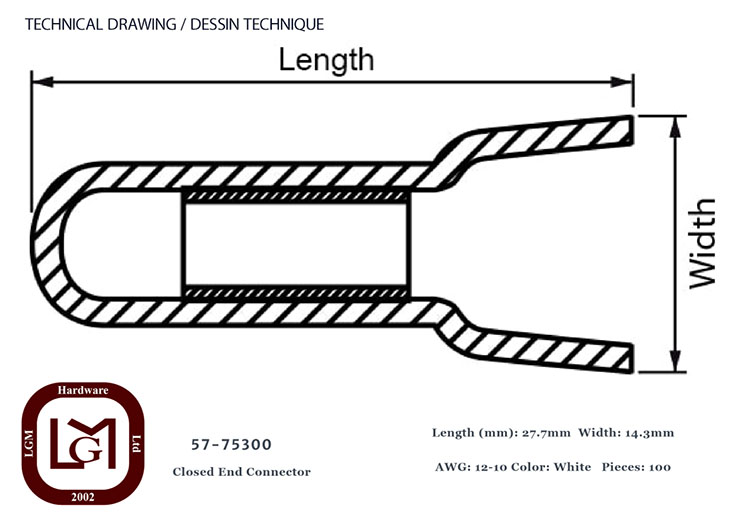

57 75300 Technical Drawing
Click photo to make Larger.





Additional information

Item #

57-75100, 57-75200, 57-75300
