LED Surface Mount Lights

Item # 53-52008, 53-52208, 53-54208, 53-50008, 53-56008, 53-59008 Categories: Lighting & Electrical, Work Lights

Description

Product #	Beam Optional:	Size:	EMC Standard:	Certificates:	Wattage:	Technical Drawing:
53-54208	Flood	15"	CLSPR25 CLASS3	ECE R10 CE, RoHs	46W	Click photo to make larger

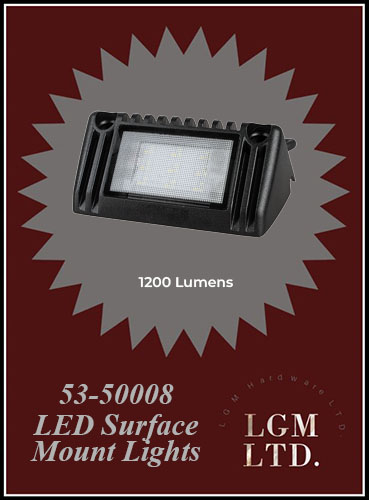

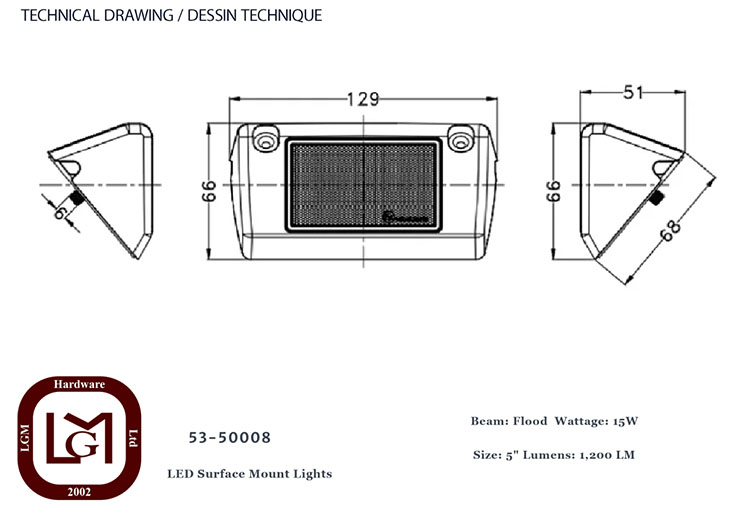

5″ LED Surface Mount Light

Product #	Beam Optional:	Size:	EMC Standard:	Certificates:	Wattage:	Technical Drawing:
53-50008	Flood	5"	CLSPR25 CLASS3	ECE R10 CE, RoHS	15W	Click photo to make larger

Specifications:

Surface Mounting – 45 Degree Tilt	White/Black Color Housing	Power: 15W, OSRAM 2835
Effective Lumens: 1200	Voltage: 9-32V DC	Operation Temperature: -40°C – 85°C
Color Temperature: 6000k	Beam Optional: Flood Beam	50,000 Hour Lifespan
Water and Dust Proof: IP67	Durable UV Polyester Powder Coating	Die Cast Aluminum Housing
Durable Polycarbonate Lens	Overvoltage Protection

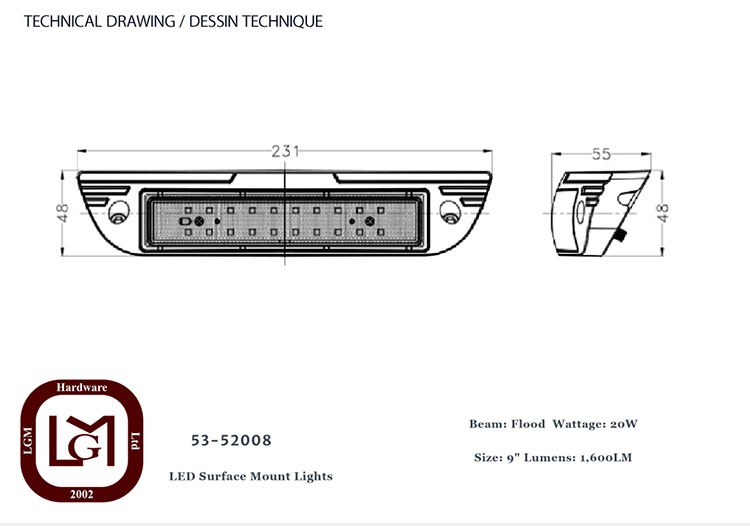

9″ LED Surface Mount Light

Product #	Beam Optional:	Size:	EMC Standard:	Certificates:	Wattage:	Technical Drawing:
53-52008	Flood	9"	CLSPR25 CLASS3	ECE R10 CE RoHs	20W	Click photo to make larger

Specifications:

Surface Mounting – 45 Degree Tilt	White/Black Color Housing	Power: 20W, OSRAM 2835
Effective Lumens: 1000	Voltage: 9 - 32V DC	Operation Temperature: -40°C – 85°C
Color Temperature: 6000k	Beam Optional: Flood Beam	50,000 Hour Lifespan
Water and Dust Proof: IP67	Durable UV Polyester Powder Coating	Die Cast Aluminum Housing
Durable Polycarbonate Lens	Overvoltage Protection	Overheat Protection

Product #	Beam Optional:	Size:	EMC Standard:	Certificates:	Wattage:	Technical Drawing:

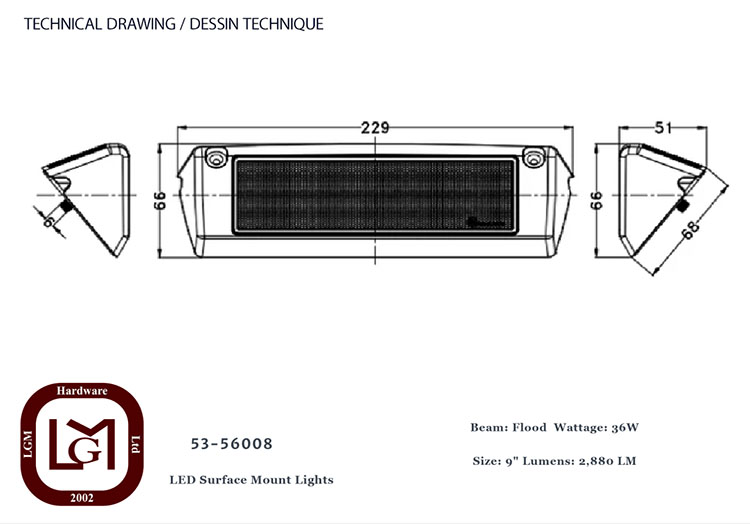

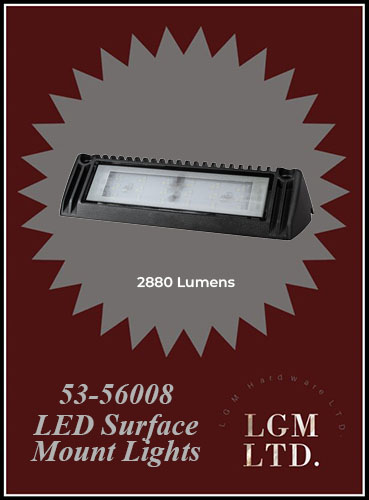

53-56008	Flood	9"	CLSPR25 CLASS3	ECE R10 CE RoHs	36W	Click photo to make larger

Specifications:

Surface Mounting – 45 Degree Tilt	White/Black Color Housing	Power: 36W, OSRAM 2835
Effective Lumens: 2880	Voltage: 9 - 32V DC	Operation Temperature: -40°C – 85°C
Color Temperature: 6000k	Beam Optional: Flood Beam	50,000 Hour Lifespan
Water and Dust Proof: IP67	Durable UV Polyester Powder Coating	Die Cast Aluminum Housing
Durable Polycarbonate Lens	Overvoltage Protection	Overheat Protection

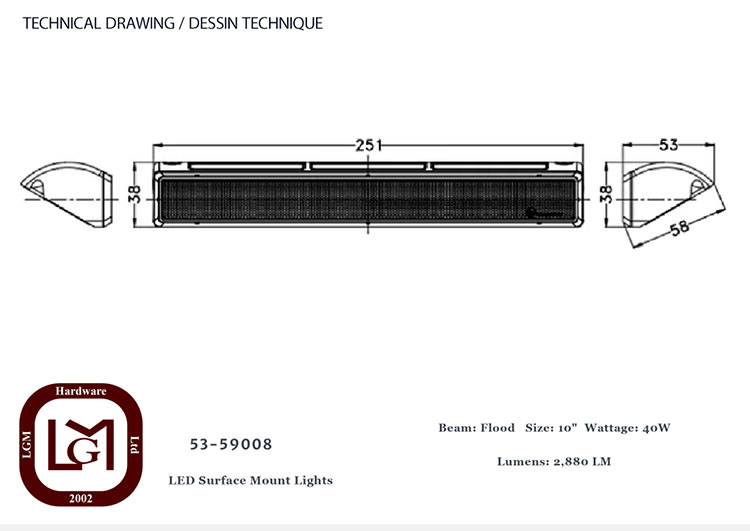

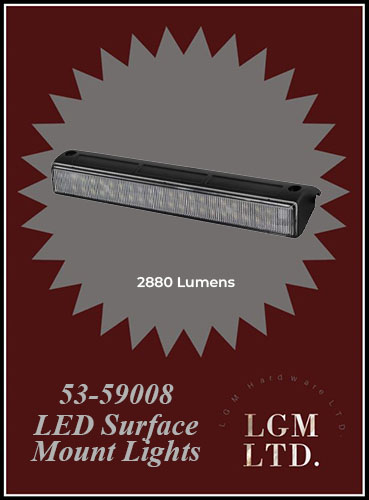

10″ LED Surface Mount Light

Product #	Beam Optional:	Size:	EMC Standard:	Certificates:	Wattage:	Technical Drawing:
53-59008	Flood	10"	CLSPR25 CLASS3	ECE R10 CE RoHs	40W	Click photo to make larger

Specifications:

Surface Mounting – 45 Degree Tilt	White/Black Color Housing	Power: 40W, OSRAM 2835
Effective Lumens: 3200	Voltage: 9 - 32V DC	Operation Temperature: -40°C – 85°C
Color Temperature: 6000k	Beam Optional: Flood Beam	50,000 Hour Lifespan
Water and Dust Proof: IP67	Durable UV Polyester Powder Coating	Die Cast Aluminum Housing
Durable Polycarbonate Lens	Overvoltage Protection	Overheat Protection

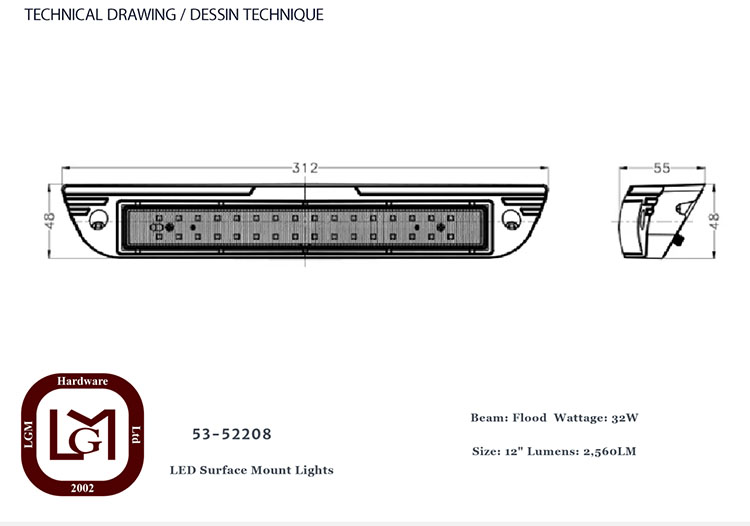

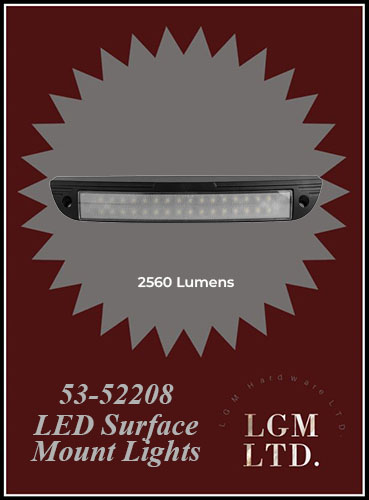

12″ LED Surface Mount Light

Product #	Beam Optional:	Size:	EMC Standard:	Certificates:	Wattage:	Technical Drawing:
53-52208	Flood	10"	CLSPR25 CLASS3	ECE R10 CE RoHs	32W	Click photo to make larger

Specifications:

Surface Mounting – 45 Degree Tilt	White/Black Color Housing	Power: 32W, OSRAM 2835
Effective Lumens: 2560	Voltage: 9 - 32V DC	Operation Temperature: -40°C – 85°C
Color Temperature: 6000k	Beam Optional: Flood Beam	50,000 Hour Lifespan
Water and Dust Proof: IP67	Durable UV Polyester Powder Coating	Die Cast Aluminum Housing
Durable Polycarbonate Lens	Overvoltage Protection	Overheat Protection

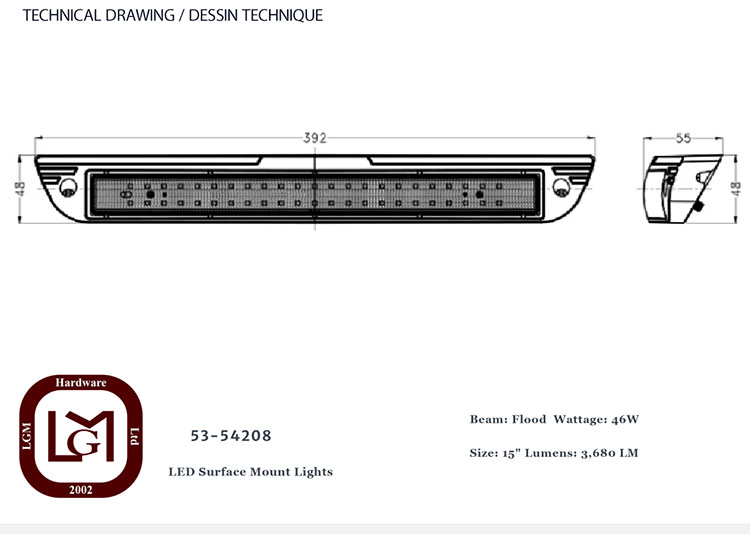

15″ LED Surface Mount Light

Product #	Beam Optional:	Size:	EMC Standard:	Certificates:	Wattage:	Technical Drawing:

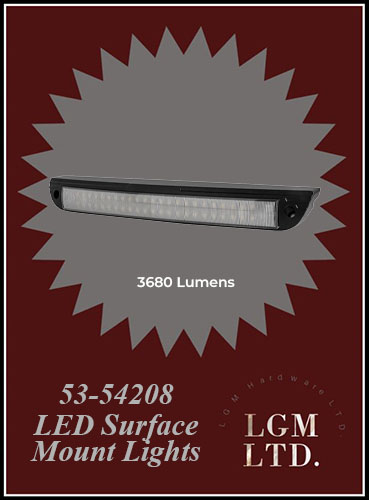

53-54208	Flood	15"	CLSPR25 CLASS3	ECE R10 CE, RoHs	46W	Click photo to make larger

Specifications:

Surface Mounting – 45 Degree Tilt	White/Black Color Housing	Power: 46W, OSRAM 2835
Effective Lumens: 3680	Voltage: 9 - 32V DC	Operation Temperature: -40°C – 85°C
Color Temperature: 6000k	Beam Optional: Flood Beam	50,000 Hour Lifespan
Water and Dust Proof: IP67	Durable UV Polyester Powder Coating	Die Cast Aluminum Housing
Durable Polycarbonate Lens	Overvoltage Protection	Overheat Protection
