5.5″ X 4.25″ Pivoting Compartment Latch

33 32302 33 20104 Product 5.5″ X 4.25″ Large Paddle Handle
33 15102 Product Rod Connector

See table below for details.

Item # 33-61506, 33-61706, 33-61906 Categories: , ,

Description

Product #Material:Lock:Technical Drawing:
33-61506Black Finish Non-Locking

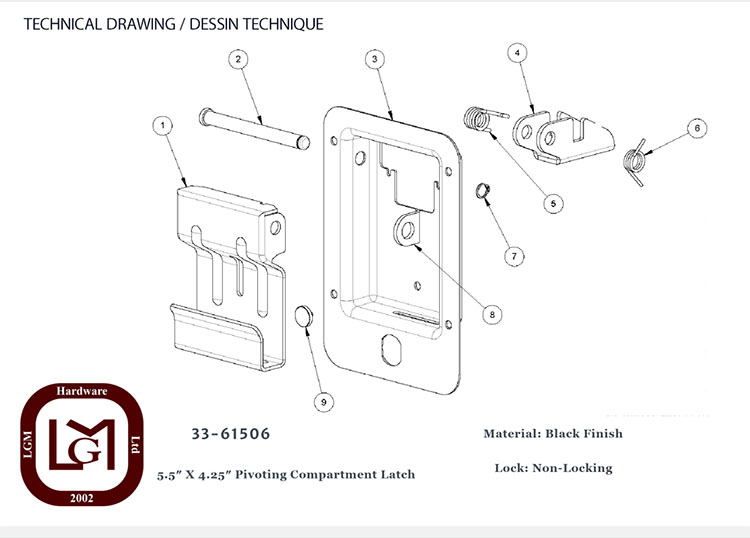

33 61506 Technical Drawing
Click photo to make larger
33-61706Black Finish Key Locking

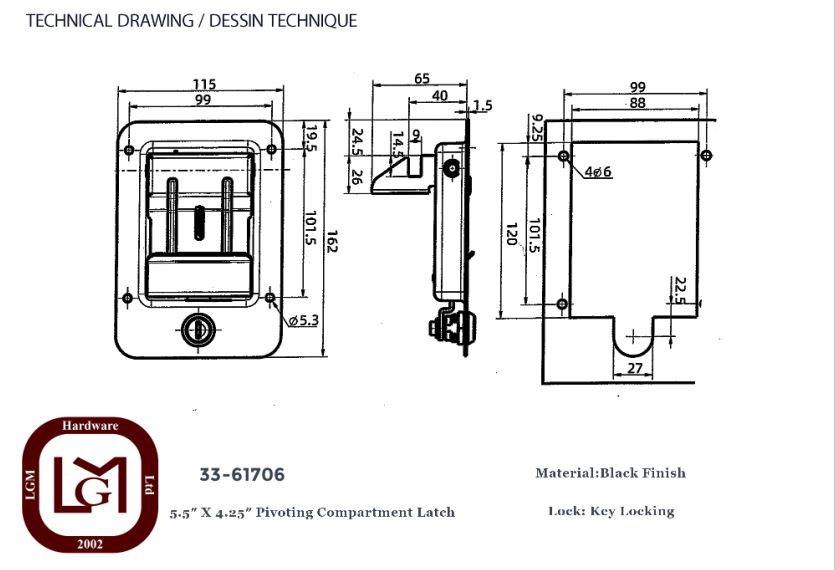

33 61706 Technical Drawing
Click photo to make larger

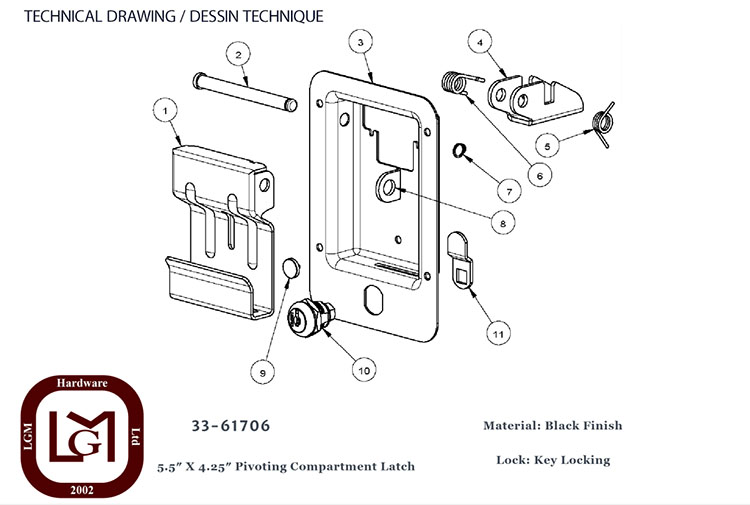

33 61706 Technical Drawing
Click photo to make larger
33-61906Black FinishKey Locking

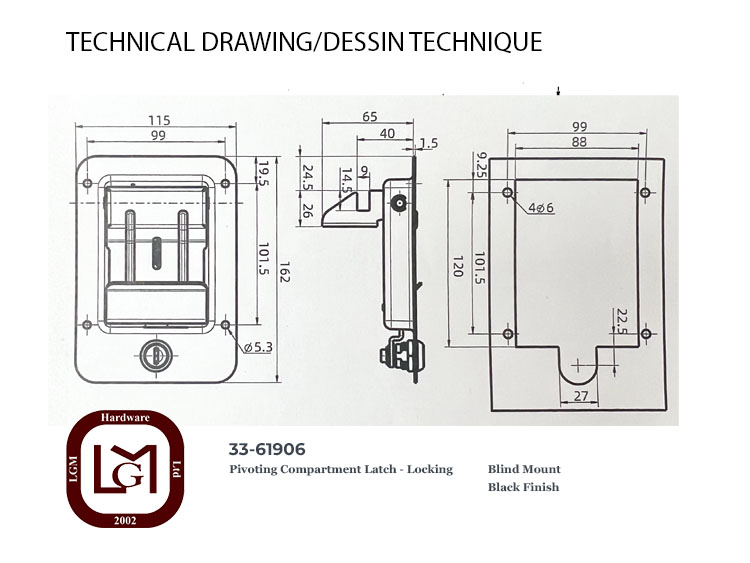

33 61906 Technical Drawing
Click photo to make larger

Additional information

Item #

33-61506, 33-61706
