Spring Bolts – Various

See below tables for details

Item # 44-61408, 44-15102, 44-01402, 44-00102, 44-00705, 44-02204, 44-01102, 44-10304, 44-03306, 44-12902, 44-12102, 44-01502, 44-01704 Categories: ,

Description

Smallest Spring Bolts

Product #Material:Pin:Travel:Base:Product Image:Technical Drawing:

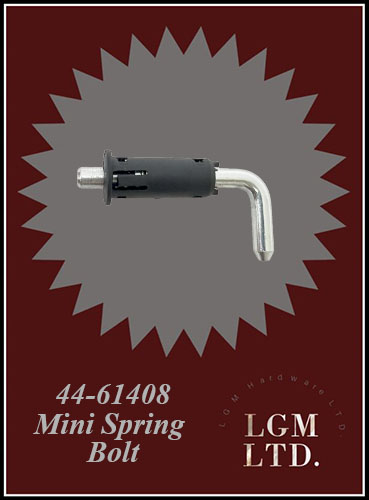

44-614085mm 6mm26mm44 61408 Detailed Product

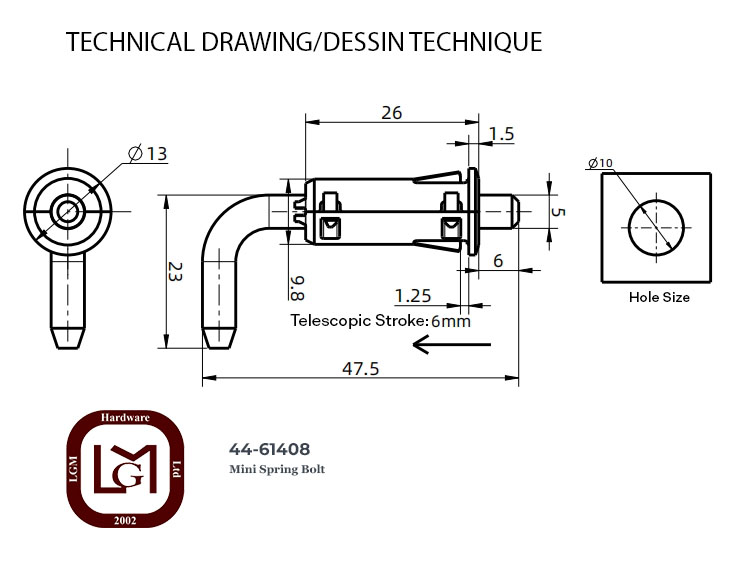

44 61408 Technical Drawing
Click photo to make larger

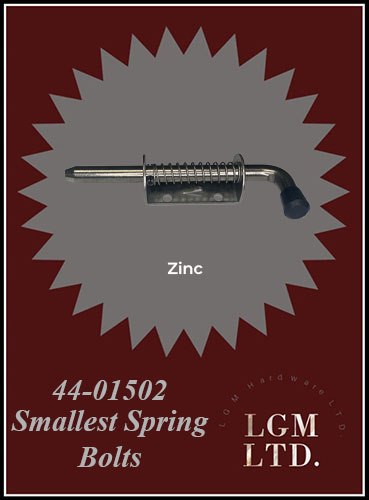

44-01502Zinc3/8"1 1/4" 2 3/8"44 01502 Product Image

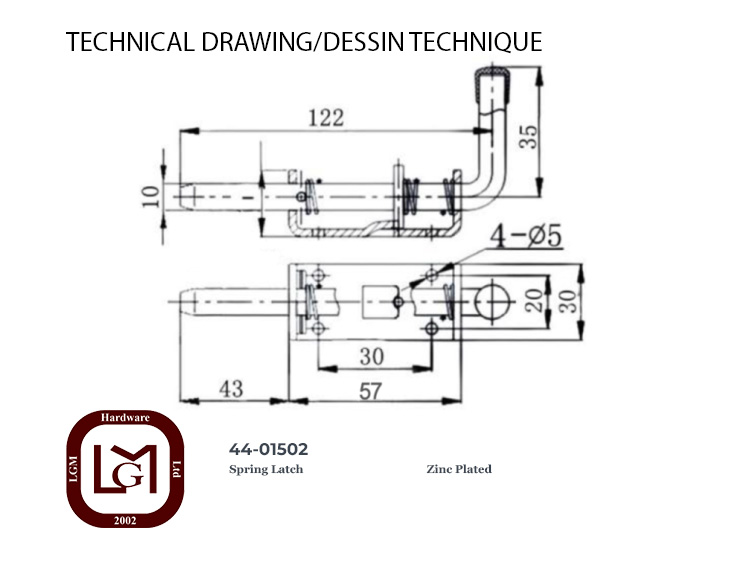

44 01502 Technical Drawing
Click photo to make larger

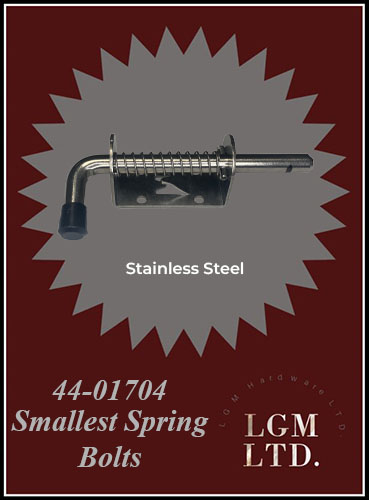

44-01704Stainless Steel3/8"1 1/4" 2 3/8" 44 01502 Product Image
44 01704 Technical Drawing
Click photo to make larger







5 1/8″ Spring Bolt

Product #Material:Length:Width:Travel:Product Image:Technical Drawing:

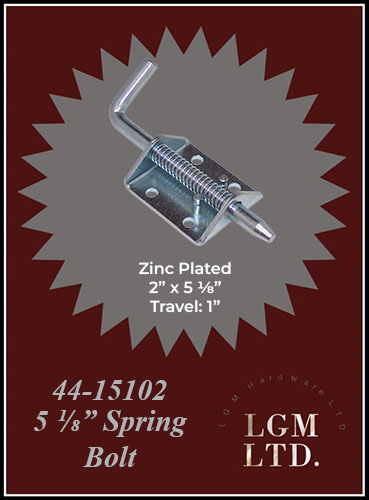

44-15102Zinc Plated 5 1/8" 2" 1" 44 15102 Product Image

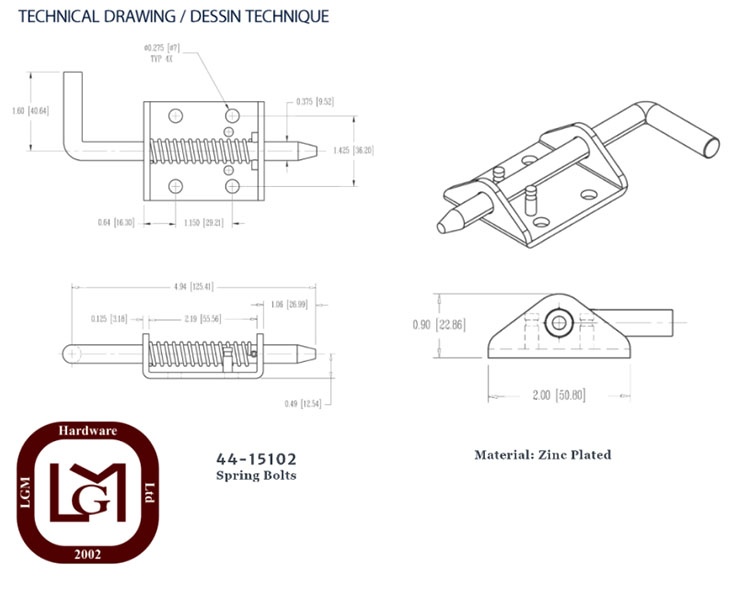

44 15102 Technical Drawing
Click photo to make larger







6 5/8″ Spring Bolt

Product #Material:Length:Width:Travel:Product Image:Technical Drawing:
44-00102Zinc Plated6 5/8" 1 9/16" 1 3/4" 44 00705 44 00102 44 02204 Product Image
44 00102 Technical Drawing
Click photo to make larger
44-00705Aluminum6 5/8" 1 9/16"1 3/4"44 00705 44 00102 44 02204 Product Image

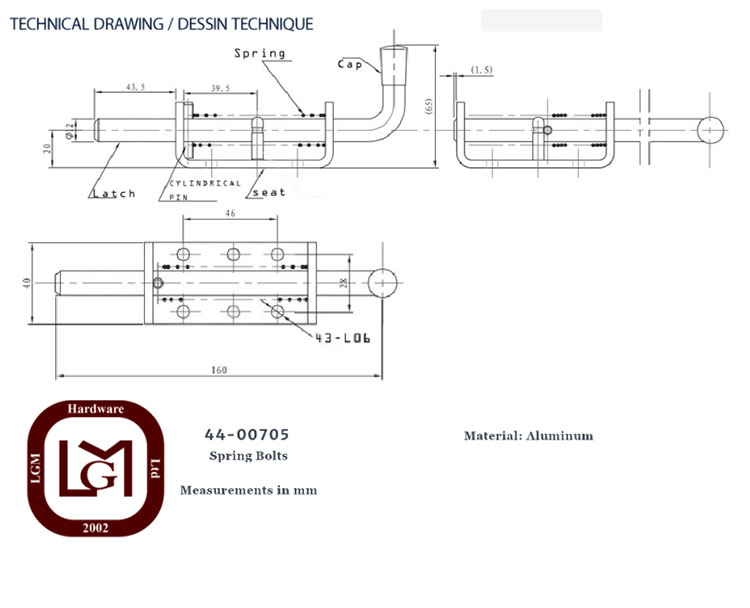

44 00705 Technical Drawing
Click photo to make larger

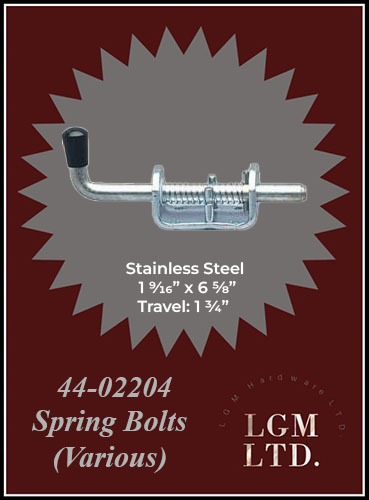

44-02204Stainless Steel6 5/8"1 9/16"1 3/4"44 00705 44 00102 44 02204 Product Image

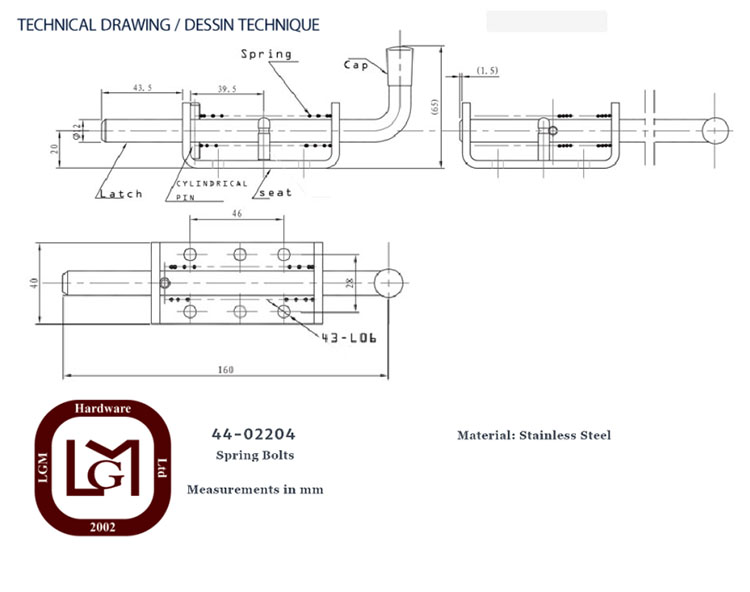

44 02204 Technical Drawing
Click photo to make larger







6.30″ Spring Bolt

Product #Length:Width:Travel:Material:Product Image:Technical Drawing:

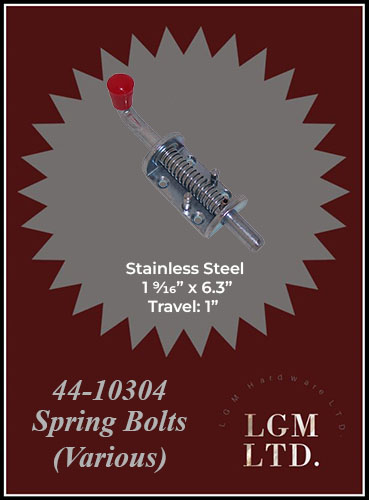

44-011026.30" 1 9/16" 1" Zinc Plated44 10304 44 01102 Product Image

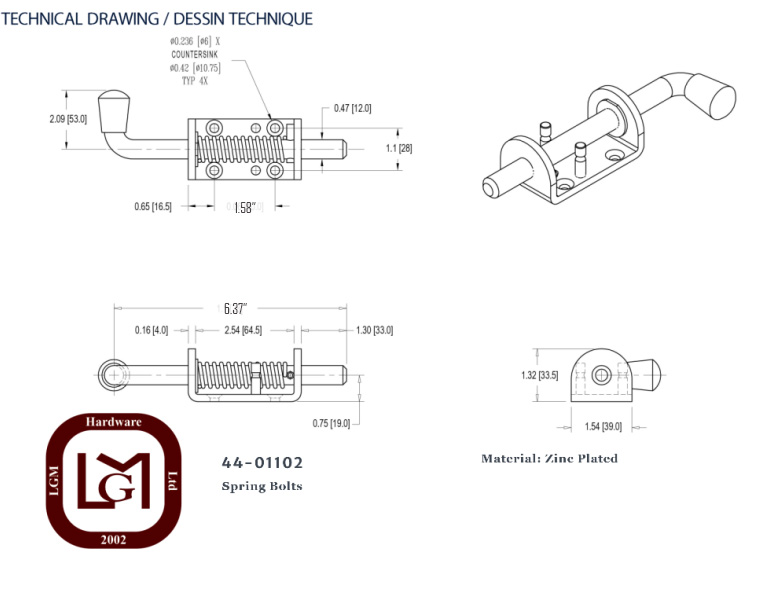

44 01102 Technical Drawing
Click photo to make larger
44-103046.30" 1 9/16"1" Stainless Steel44 10304 44 01102 Product Image

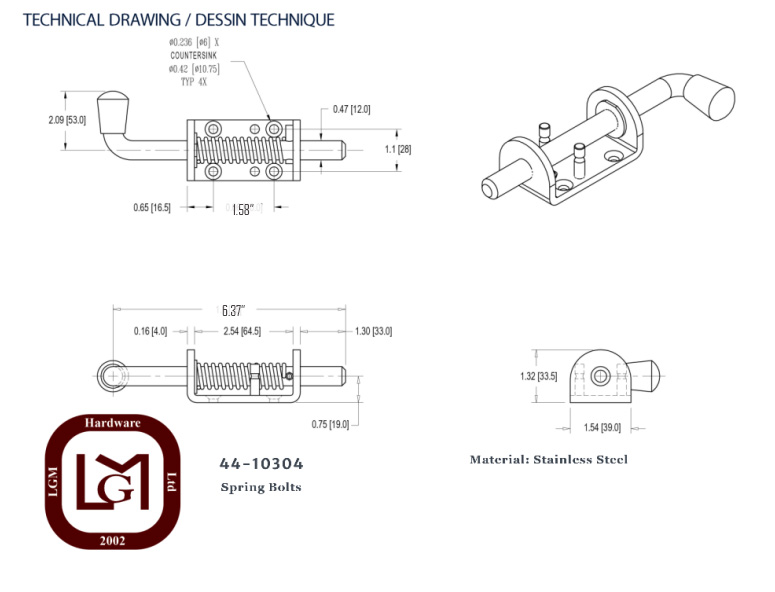

44 10304 Technical Drawing
Click photo to make larger





Accessories:

Product #Description:
44-03306Replacement Red Knob







6.30″ Spring Bolt with 4″ Handle

Product #Length:Width:Travel:Handle:Material:Product Image:Technical Drawing:

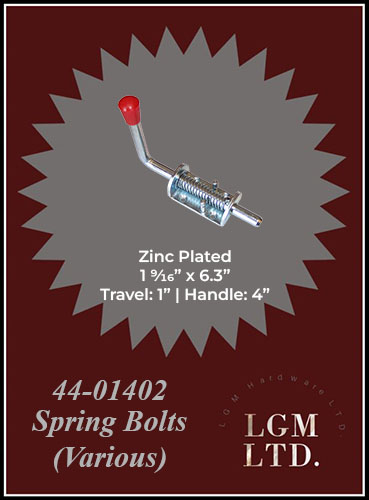

44-014026.30"1 9/16"1" 4"Zinc Plated 44 01402 Product Image

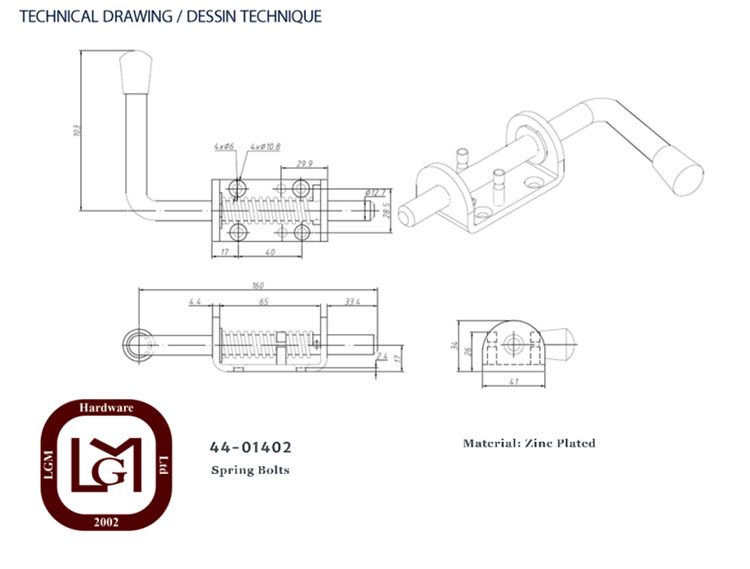

44 01402 Technical Drawing
Click photo to make larger







8.58″ Spring Bolt

Product #Length:Width:Travel:Material:Product ImageTechnical Drawing:

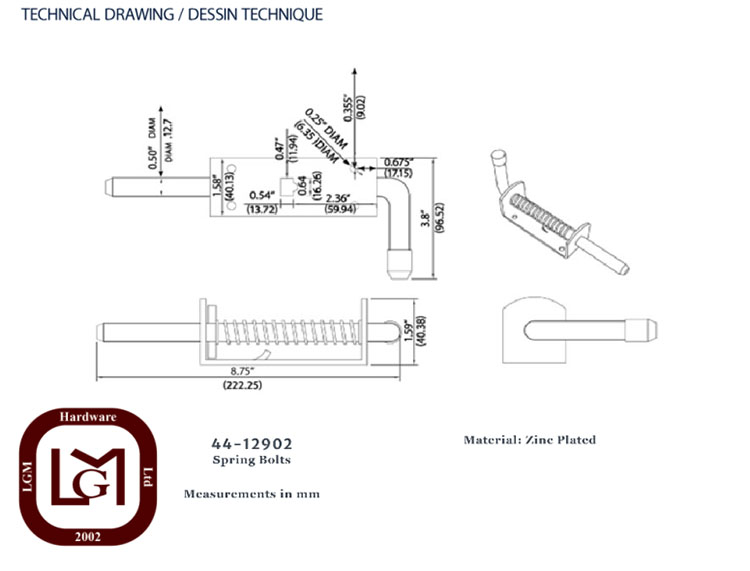

44-12902 8.58" 1 1 /2"3" Zinc Plated44 12902 Product Image
44 12902 Technical Drawing
Click photo to make larger





9.5″ Heavy Duty Spring Bolt – Zinc Plated

Product #Description:Length:Pin:Travel:Product Image:Technical Drawing:

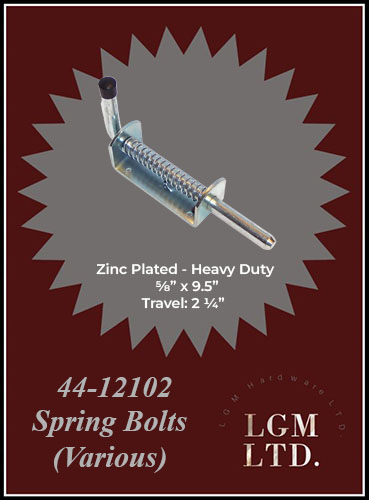

44-12102Heavy Duty Zinc Plated Spring Bolt9.5”5/8”2 1/4” 44 12102 Product Image

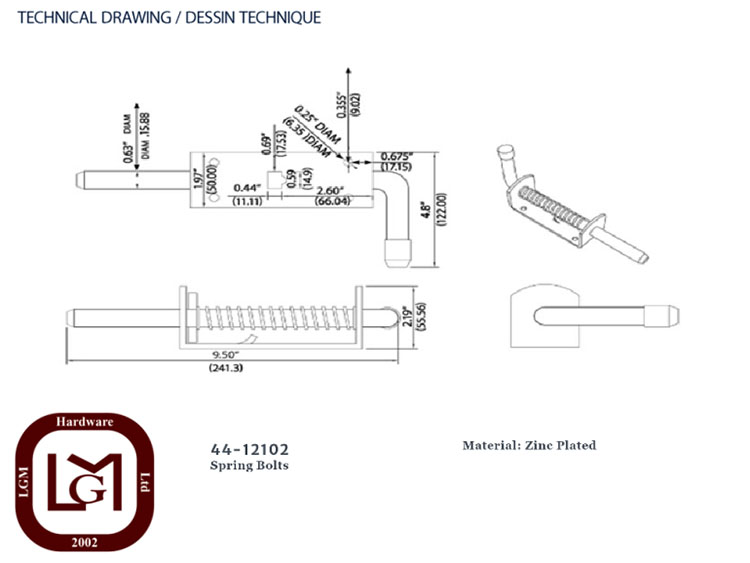

44 12102 Terchnical Drawing
Click photo to make larger
