Square Lights
- Description
- Additional information
Description
2″ Square Lights
| Product # | Beam Optional: | Size: | EMC Standard: | Certificates: | Wattage: | Technical Drawing: |
|---|---|---|---|---|---|---|

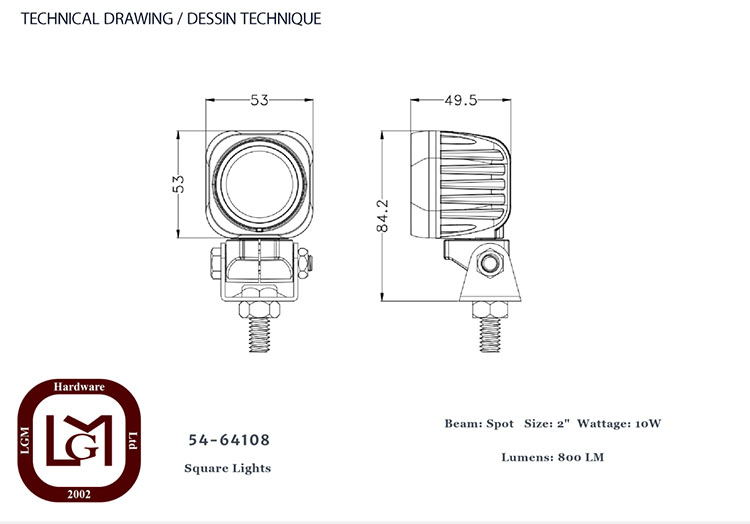

| 54-64108 | Spot | 2" | CISPR25 Class 4 | ECE R10 CW RoHs | 10W |  |

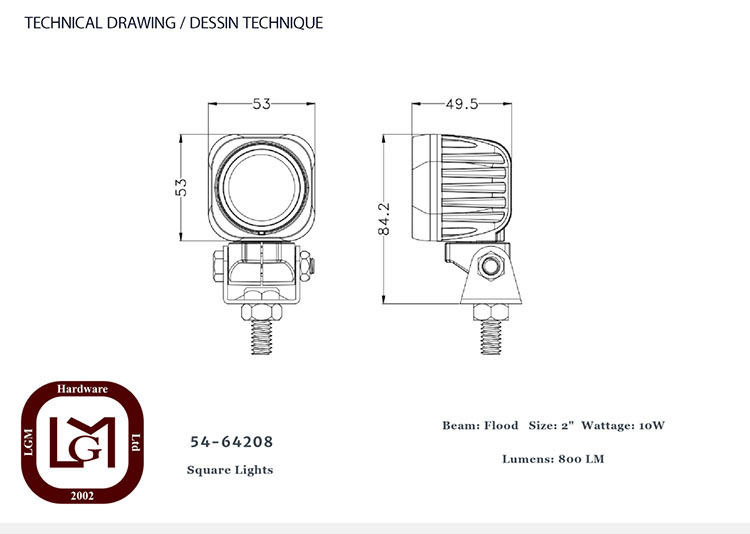

| 54-64208 | Flood | 2" | CISPR25 Class 4 | ECE R10 CW RoHs | 10W |  |
Specifications:
| Power: 1 x 10W CREE LED | Lumens: 800 | Voltage: 9-32V |
| Waterproof & Dustproof: IP68 | 50,000 Hour Lifespan | Swivel Mount |
| Die-Cast Aluminum Housing | Durable Polycarbonate Lens | Stainless Steel Hardware |
3″ Square Lights
| Product # | Beam Optional: | Size: | EMC Standard: | Certificates: | Wattage: | Technical Drawing: |
|---|---|---|---|---|---|---|

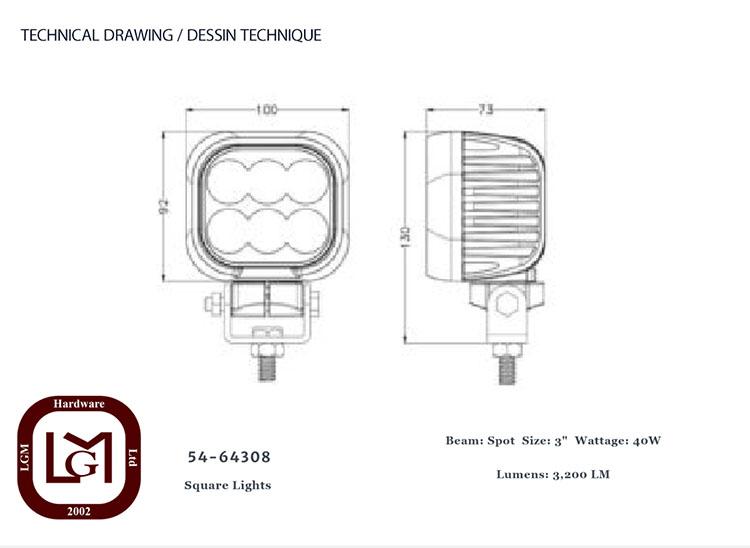

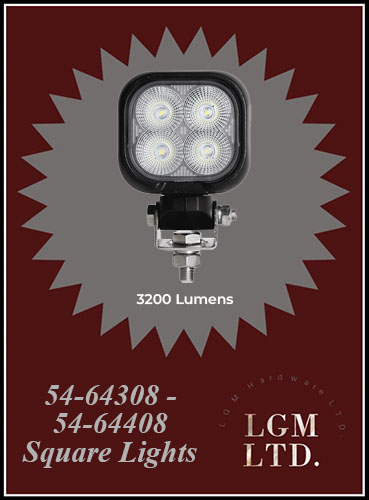

| 54-64308 | Spot | 3" | CISPR25 Class 4 | ECE R10 CW RoHs | 40W |  |

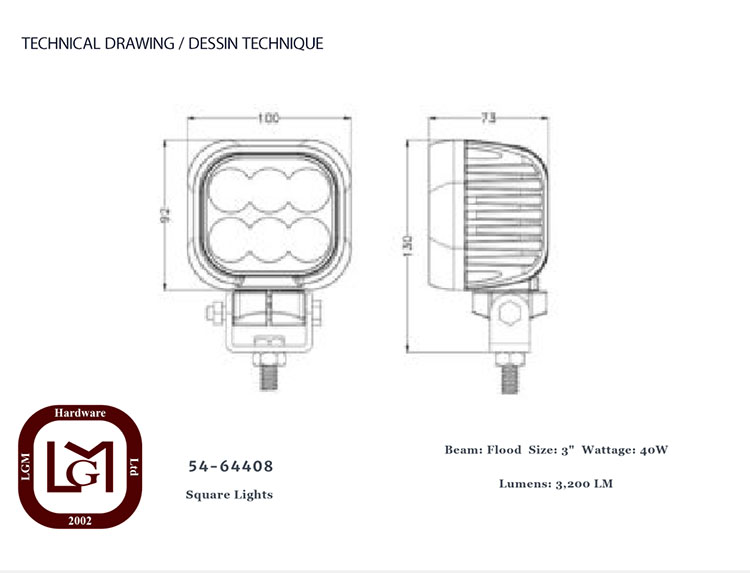

| 54-64408 | Flood | 3" | CISPR25 Class 4 | ECE R10 CW RoHs | 40W |  |
Specifications:
| Power: 4 x 10W Osram LED | Lumens: 3200 | Voltage: 9-32V |
| Waterproof & Dustproof: IP68 | 50,000 Hour Lifespan | Swivel Mount |
| Die-Cast Aluminum Housing | Durable Polycarbonate Lens | Stainless Steel Hardware |
| Overheat Protection | Overvoltage Protection | Durable UV Polyester Powder Coating |
| Color Temperature: 6000k | Operation Temperature: -40°C ~+85° C |
4″ Square Lights
| Product # | Beam Optional: | Size: | EMC Standard: | Certificates: | Wattage: | Technical Drawing: |
|---|---|---|---|---|---|---|
| 54-64508 | Spot | 4" | CISPR25 Class 4 | ECE R10 CW RoHs | 60W |  |

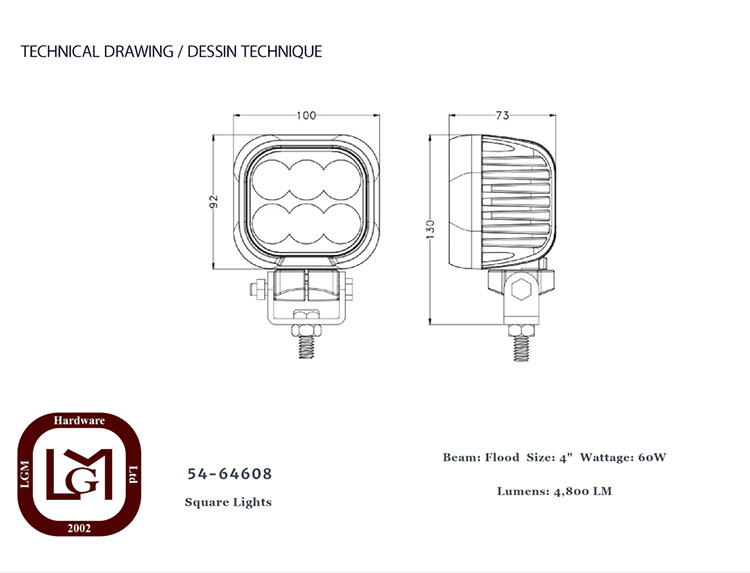

| 54-64608 | Flood | 4" | CISPR25 Class 4 | ECE R10 CW RoHs | 60W |  |
Specifications:
| Power: 6 x 10W Osram LED | Lumens: 4800 | Voltage: 9-32V |
| Waterproof & Dustproof: IP68 | 50,000 Hour Lifespan | Swivel Mount |
| Die-Cast Aluminum Housing | Durable Polycarbonate Lens | Stainless Steel Hardware |
| Overheat Protection | Overvoltage Protection | Durable UV Polyester Powder Coating |
| Color Temperature: 6000k | Operation Temperature: -40°C ~+85° C |
5″ Square Lights
| Product # | Beam Optional: | Size: | EMC Standard: | Certificates: | Wattage: | Technical Drawing: |
|---|---|---|---|---|---|---|

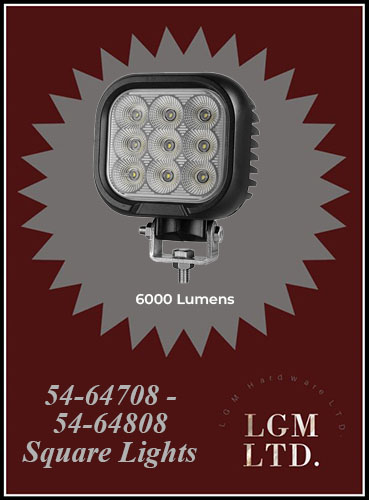

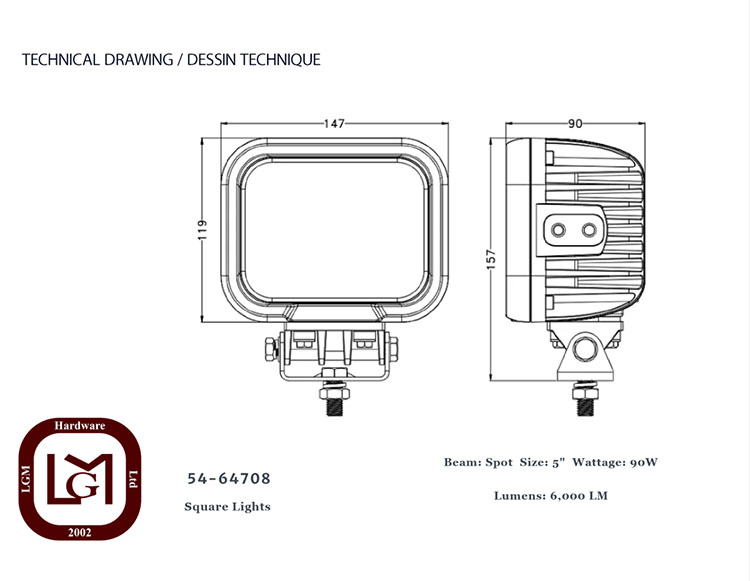

| 54-64708 | Spot | 5" | CISPR25 Class 4 | ECE R10 CW RoHs | 90W |  |
| 54-64808 | Flood | 5" | CISPR25 Class 4 | ECE R10 CW RoHs | 90W |  |
Specifications:
| Power: 9 x 10W Osram LED | Lumens: 6000 | Voltage: 9-32V |
| Waterproof & Dustproof: IP68 | 50,000 Hour Lifespan | Swivel Mount |
| Die-Cast Aluminum Housing | Durable Polycarbonate Lens | Stainless Steel Hardware |
| Overheat Protection | Overvoltage Protection | Durable UV Polyester Powder Coating |
| Color Temperature: 6000k | Operation Temperature: -40°C ~+85° C |
Additional information
| Item # | 54-64108, 54-64208, 54-64308, 54-64408, 54-64508, 54-64608, 54-64708, 54-64808 |
|---|
