Stainless Steel Enclosures & Door Hinges

11 12104 Product Stainless Steel Hinges
11 50505 Product 5″ Butt Hinge – Aluminum
Item # 11-00503, 11-13104, 11-93304, 11-93004 Categories: ,

Description

Product #Name:Material Thickness:Measurement:Pin Diameter:Description:Technical Drawing:
11-93004Loose Joint Hinge – Stainless SteelMaterial Thickness: 0.90
Width: 3"
Length: 3"		Pin Dia. 0.250with Holes
Left Hand

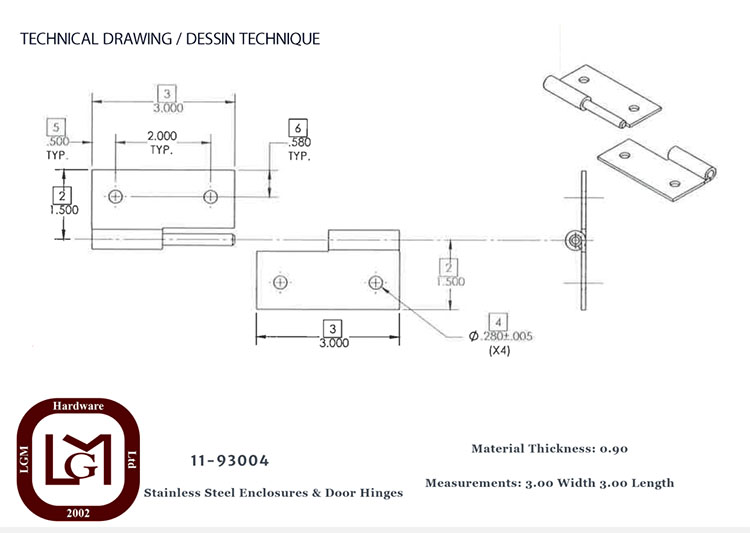

11 93004 Technical Drawing
Click photo to make larger

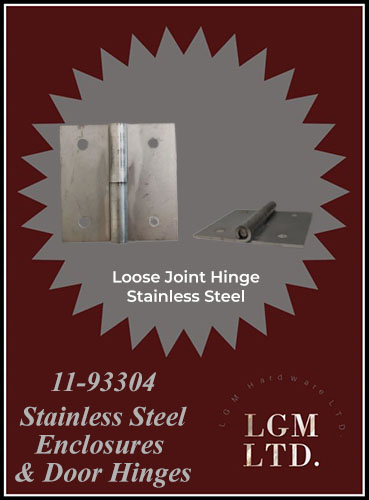

11-93304Loose Joint Hinge – Stainless SteelMaterial Thickness: 0.90
Width: 3"
Length: 3"		Pin Dia. 0.250with Holes
Right Hand

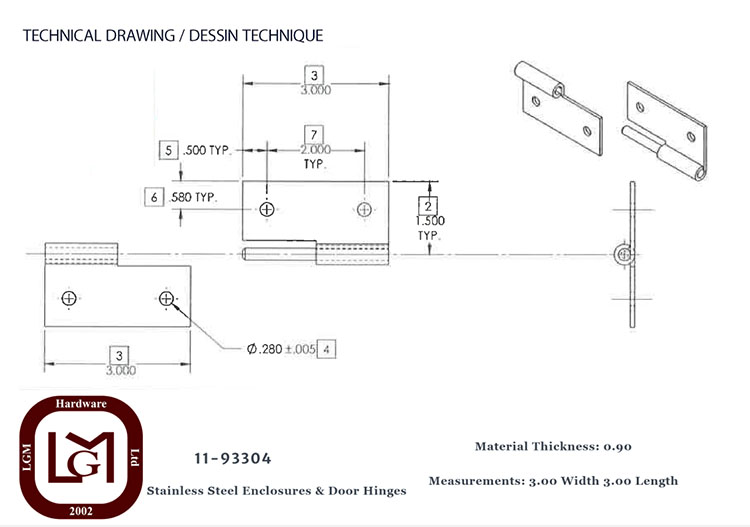

11 93304 Technical Drawing
Click photo to make larger
11-00503Satin Chrome Ball Bearing HingeWidth: 4"
Length: 4.5"		Non Removable Pin – with Wood and Metal Screws
11-13104 Hinge – Stainless SteelWidth: 2 5/16"
Length: 2 5/16"

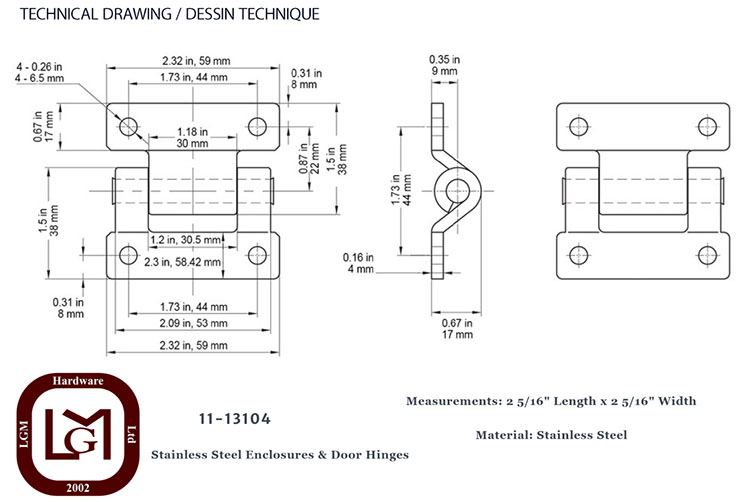

11 13104 Technical Drawing
Click photo to make larger

Additional information

Item #

11-00503, 11-13104, 11-93004, 11-93304
