Steel Chrome Plated Wire Handle

44 70502 44 70002 Product Adjustable Roller Lock Rod System 96″

See below table for details.

Item # 33-92503, 33-93503, 33-92903 Categories: ,
Clear

Description

Product #Center to Center:Rotation:Nuts and Washers:Technical Drawing:

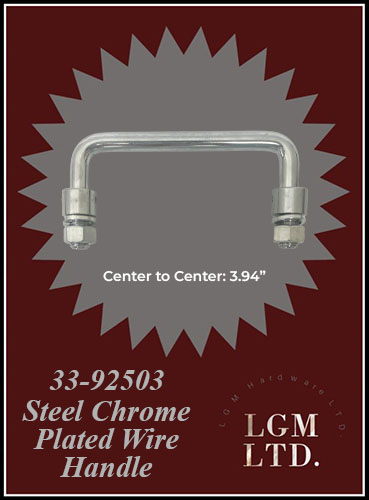

33-92503[L] 3.94" CC90 Degree2 Chrome Nuts and Washer

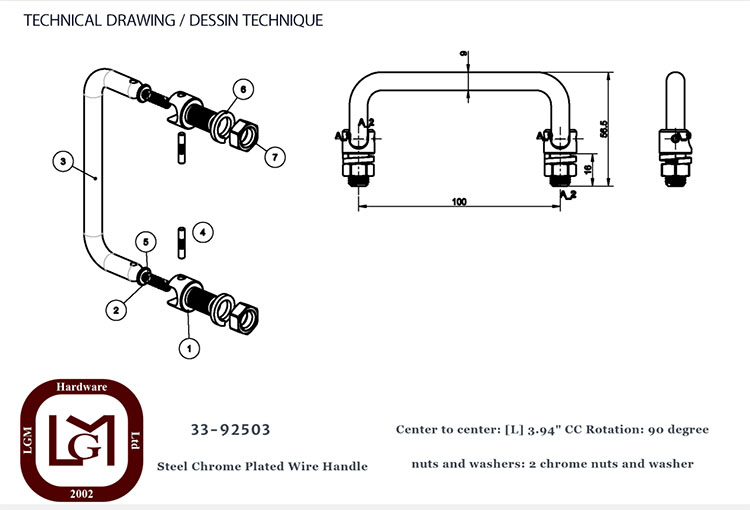

33 92503 Technical Drawing
Click to make photo larger
33-93503[L] 5.32" CC90 Degree 2 Chrome Nuts and Washer

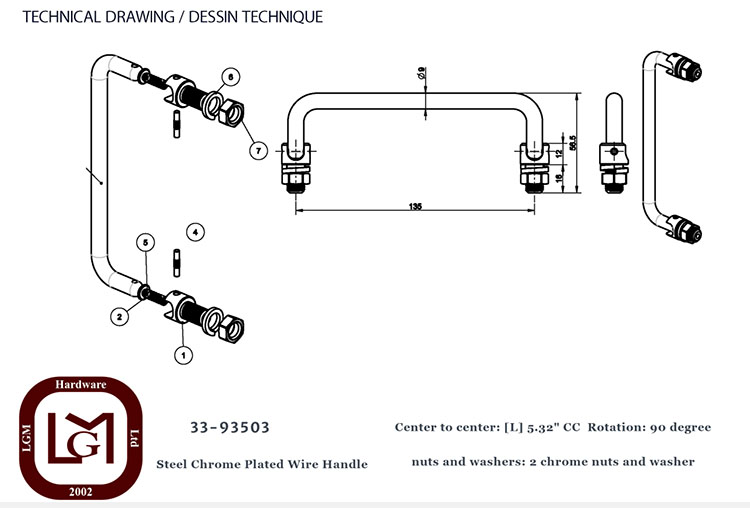

33 93503 Technical Drawing
Click to make photo larger

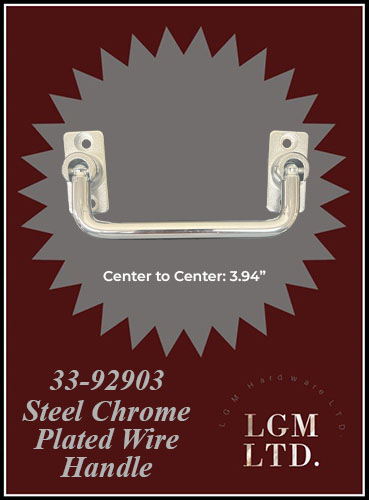

33-929033.94" CC90 Degree 2 Chrome Nuts and Washer

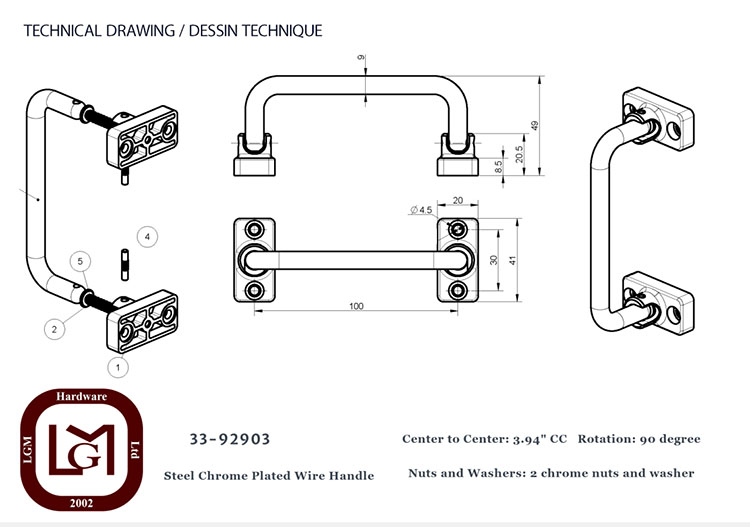

33 92903 Technical Drawing
Click to make photo larger
