“T” Hinge – Zinc

11 10152 Product Steel Hinge with Grease Fitting
13 90904 1392504 304 Stainless Steel with SS Pin and Washer

See table below for details.

Item # 10-34002, 10-35002, 10-36002, 10-37002 Categories: ,

Description

Product #Measurements:Material Gauge:Techincal Drawing
10-34002Strap: 4"
Butt: 1.5"		0.090"
10-350022mm

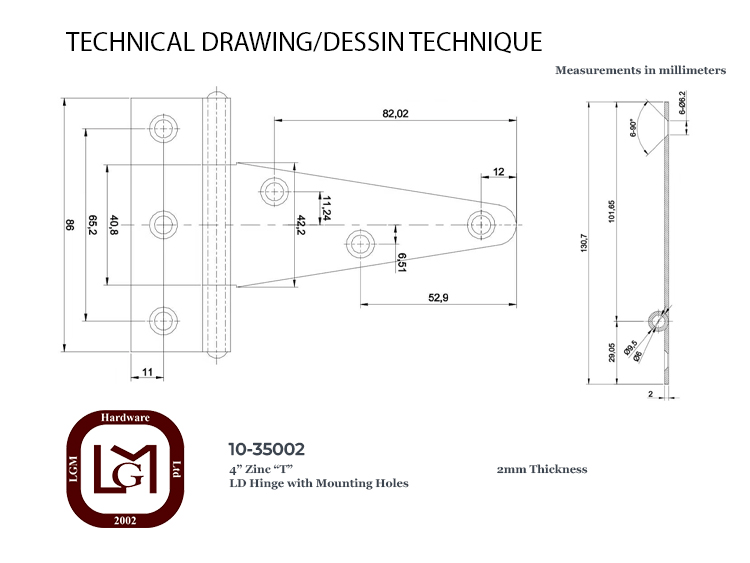

10 35002 Technical Drawing
Click image to make larger
10-36002Strap: 6"
Butt: 2"		0.120"
10-370022mm

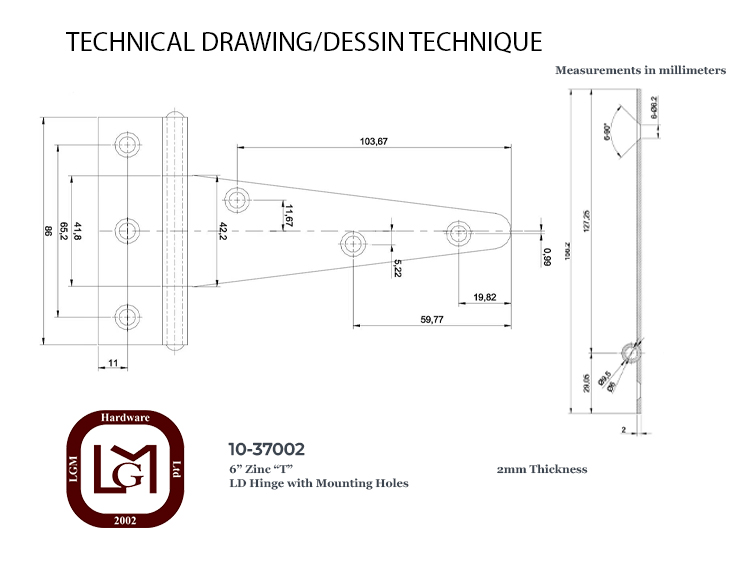

10 37002 Technical Drawing
Click image to make larger

Additional information

Item #

10-34002, 10-36002
