80 06802 80 06902 Picture
80 06802 80 06902 Picture

15.94″ Extended C.C. – 9.65″ Compressed – 8mm Rod 20mm Tube

80 07272 80 07802 Picture 18″ Extended C.C. – 10.50″ Compressed – 8mm Rod 20mm Tube
80 24002 80 24402 Picture 9.65″ Extended C.C. – 6.50″ Compressed – 8mm Rod 20mm Tube

Requires 2 ball studs per gas spring – Item # 77-70362

SKU: 80-06802, 80-06902, 77-70362 Categories: ,

Description

Product #Capacity:Extended C.C:Compressed:
80-0680234lbs 15.94" 9.65"
80-0690254lbs 15.94" 9.65"

Accessories:

Product #Description:
77-70362Ball Stud

L1 = 6.29″ L2 = 15.94″ L3 = 9.65″
10mm nylon end fitting

*Requires 2 ball studs per gas spring (#77-70362)

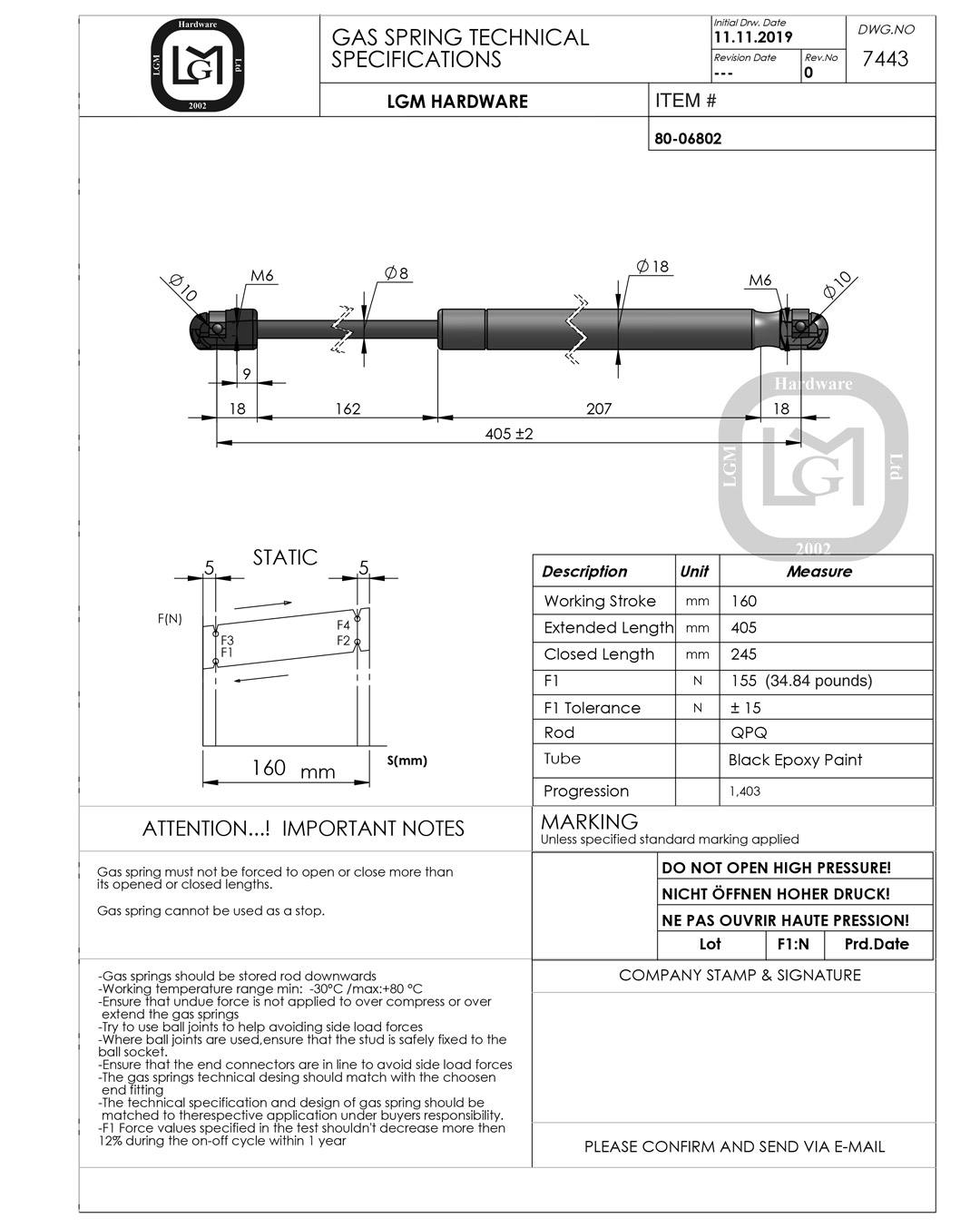

Gas Spring Technical Drawing 9 65 Extended 6 50 Compressed Lgm Hardware





Additional information

Item #

77-70362, 80-06802, 80-06902
