80 07002 80 07102 Picture
80 07002 80 07102 Picture

17.063″ Extended C.C. – 10.625″ Compressed – 8mm Rod 20mm Tube

Gas Spring Technical Data Gas Spring Technical Data
80 26102 Picture 13.969″ Extended C.C. – 8.50″ Compressed – 8mm Rod 20mm Tube

See below table for details

SKU: 80-07002, 80-07102 Categories: ,

Description

Product #Capacity:Technical Drawing:
80-0700230lbs Cap

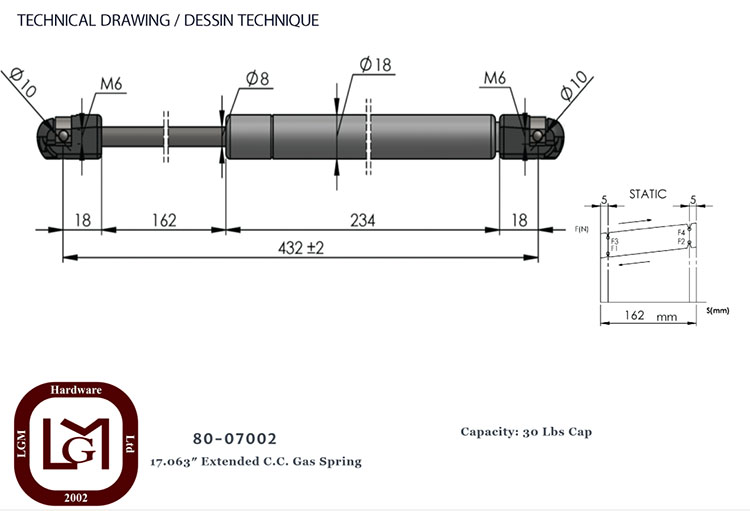

80 07002 Technical Drawing
Click to make photo Larger.
80-0710240lbs Cap

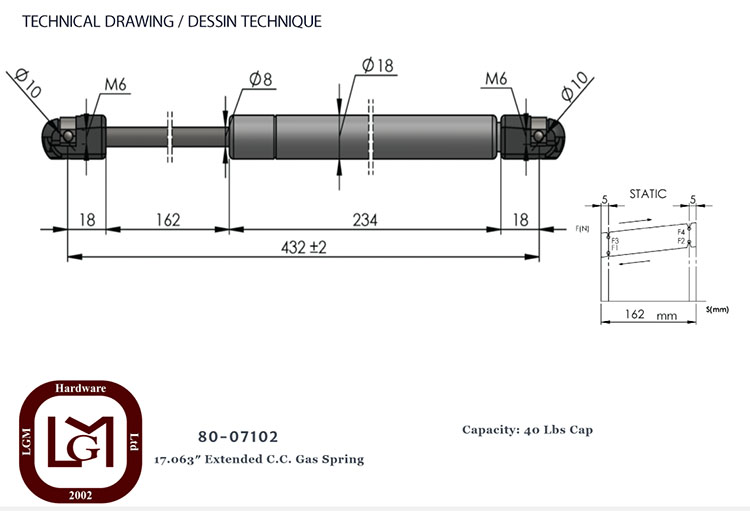

80 07102 Technical Drawing
Click to make photo Larger.



L1= 6.35  L2= 17.063  L3=10.625



Additional information

Item #

80-07002, 80-07102
