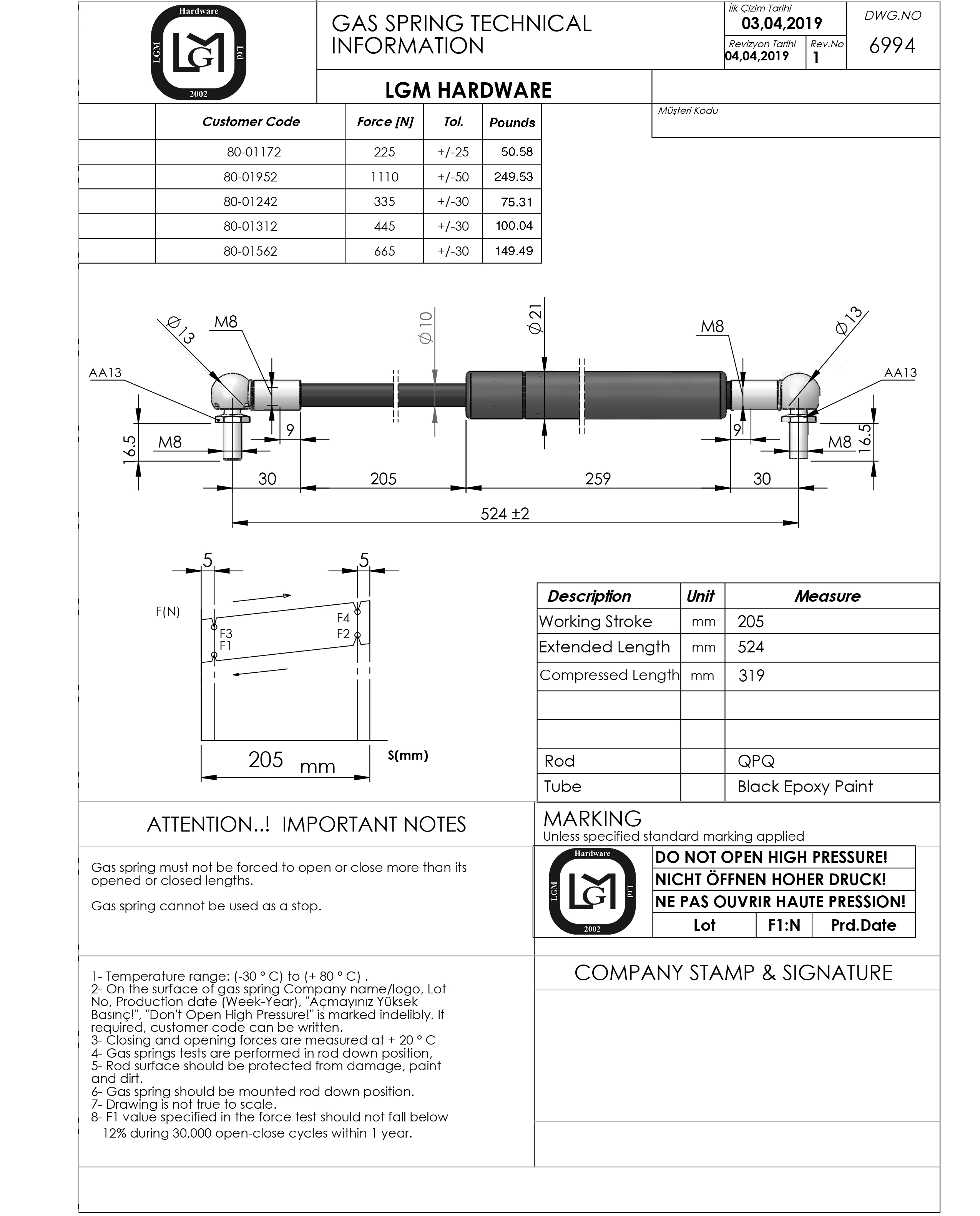

80 01052 80 01952 Picture
80 01052 80 01952 Picture

20.625″ Extended C.C. – 13″ Compressed – 10mm Rod 21mm Tube

80 24002 80 24402 Picture 9.65″ Extended C.C. – 6.50″ Compressed – 8mm Rod 20mm Tube
80 08052 80 09052 Picture 27.875″ Extended C.C. – 17″ Compressed – 10mm Rod 21mm Tube

Complete with 13mm steel ball stud and steel socket

SKU: 80-01052, 80-01172, 80-01242, 80-01312, 80-01562, 80-01702, 80-01952 Categories: ,

Description

Product #Capacity:Extended:Compressed:Technical Drawing:
80-0105230lbs 20.625″ 13″
80 01052 Technical Drawing
Click to make photo Larger.
80-0117250lbs 20.625″ 13″

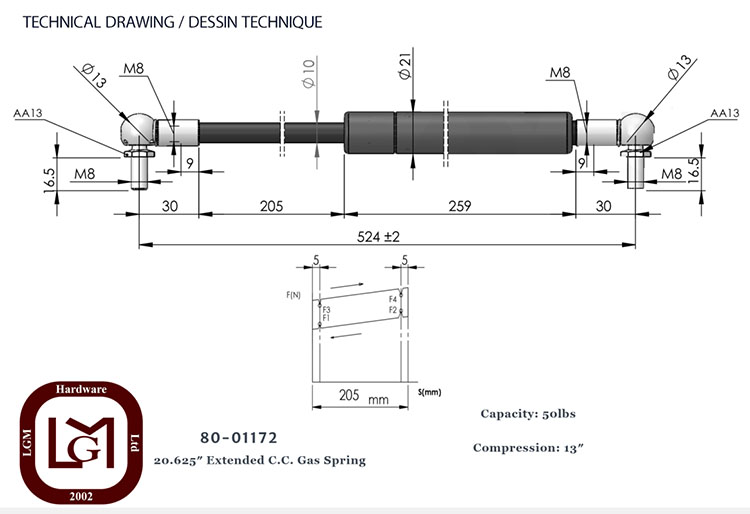

80 01172 Technical Drawing
Click to make photo Larger.
80-0124275lbs 20.625″ 13″
80 01242 Technical Drawing
Click to make photo Larger.
80-01312100lbs 20.625″ 13″
80 01312 Technical Drawing
Click to make photo Larger.
80-01562150lbs 20.625″ 13″
80 01562 Technical Drawing
Click to make photo Larger.
80-01702200lbs 20.625″ 13″

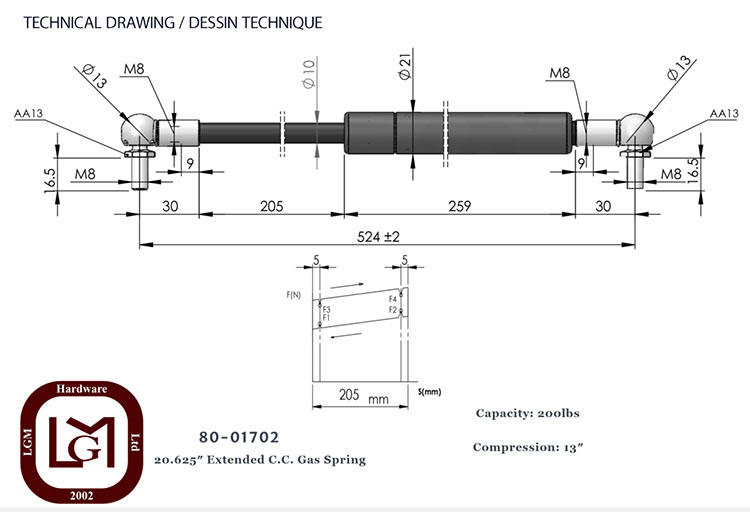

80 01702 Technical Drawing
Click to make photo Larger.
80-01952250lbs 20.625″13″
80 01952 Technical Drawing
Click to make photo Larger.

L1 = 8″ L2 = 20.625″ L3 = 10.19″
Complete with 13mm steel ball stud and steel socket



Additional information

Item #

80-01052, 80-01172, 80-01242, 80-01312, 80-01562, 80-01702, 80-01952
