3 Leaf Weld-on Hinge

11 50105 11 51905 Product Aluminum with Grease Fitting, SS Pin and Washer
13 30102 13 32102 Product Steel Hinge with Brass Pin and Washer

See table below for details.

Item # 11-91001, 11-59905, 11-91401 Categories: ,

Description

Product #Material:Length (mm):Length (inch):Pin Size:Technical Drawing
11-91001Steel 100mm4"10
11 91001 Technical Drawing
Click to make image larger
11-59905Aluminum100mm4"10

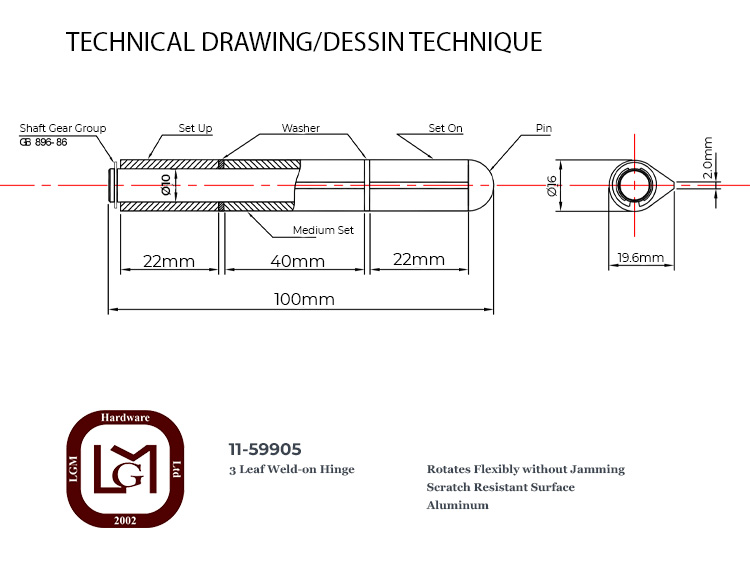

11 59905 Technical Drawing
Click to make image larger
11-91401Steel110mm4.33"10

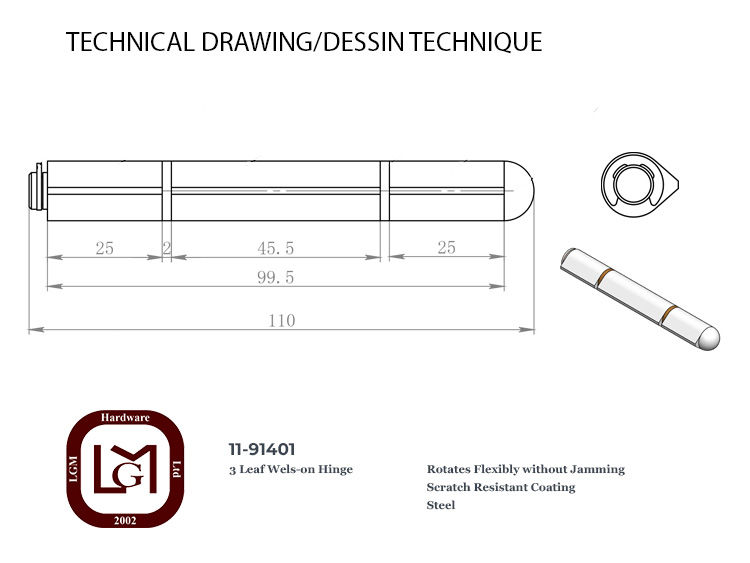

11 91401 Technical Drawing
Click to make image larger

Additional information

Item #

11-59905, 11-91001, 11-91401
