Steel with Steel Pin and Brass Washer and Grease Fitting

13 30102 13 32102 Product Steel Hinge with Brass Pin and Washer
11 68105 Product Flush Aluminum Hinge

See table below for details.

Item # 13-21202, 13-21502, 13-21702, 13-22002, 13-22502, 13-22802, 13-23302, 13-23602, 13-24102, 13-24402, 11-80008, 11-80208, 11-80508 Categories: ,

Description

Product #Length (mm):Inch:Pin Size (mm):Technical Drawing:
13-2120260mm2 3/8"6mm
13-2150270mm2 3/4"7mm
13-2170280mm3 3/16"8mm
13-22002100mm4"10mm

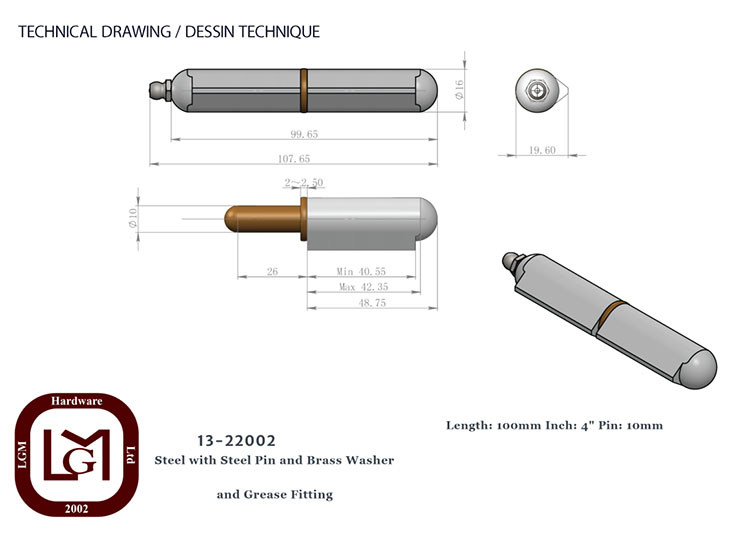

13 22002 Technical Drawing
Click photo to make larger
13-22502120mm4 3/4"10mm
13-22802135mm5 3/8"10mm
13-23302150mm6"13mm

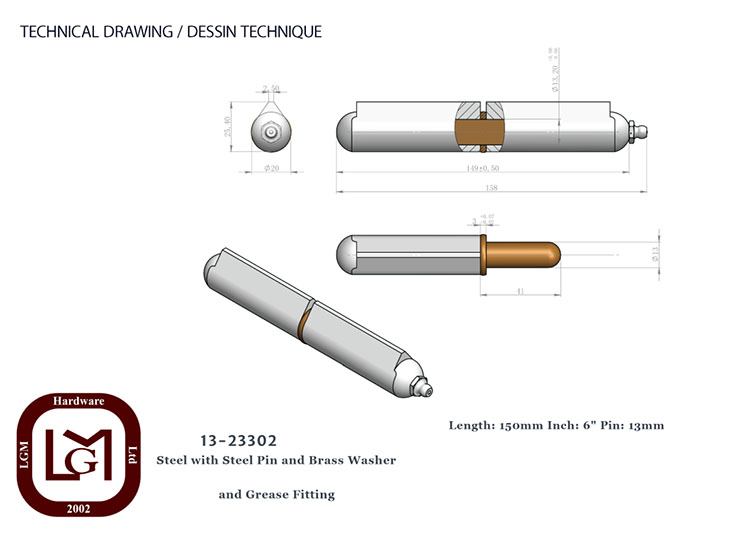

13 23302 Technical Drawing
Click photo to make larger
13-23602180mm7"14mm
13-24102200mm8"16mm
13-24402260mm10 1/4"18mm

Accessories:

Product #Description:
11-80008Brass Washer Only for 80 mm
11-80208Brass Washer Only for 100 mm
11-80508 Brass Washer Only for 150 mm
