Manual Door Supports

77 00904 Picture Big Door Hatch Holder
77 03144 Picture Medium Door Hatch Holder

Zinc plated steel

SKU: 77-75502, 77-75902, 77-91202, 77-91302 Categories: ,

Description

Product #Closed Length:Extended Length:Finish:Material: Technical Drawing:
77-755028"13.25" Zinc PlatedSteel

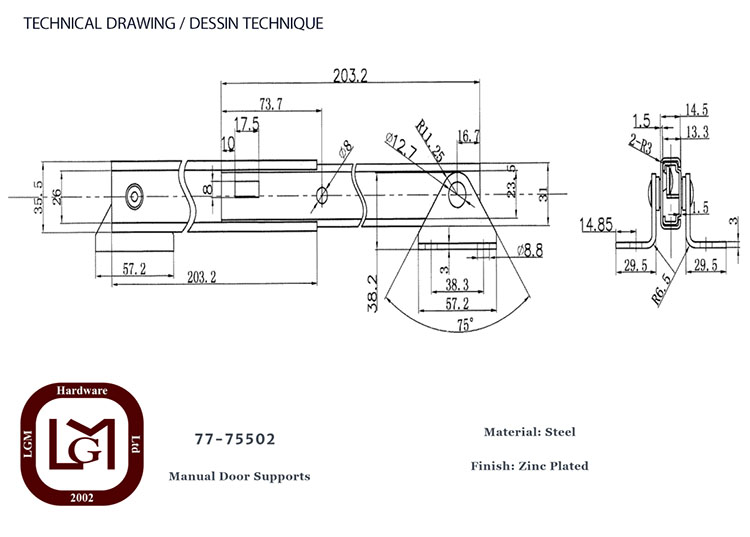

77 75502 Technical Drawing
Click to make photo Larger.
77-7590210"17.25"Zinc Plated

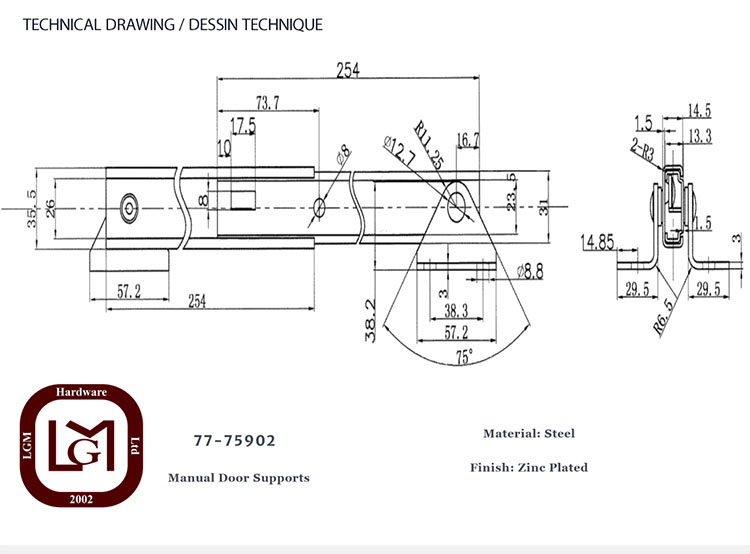

77 75902 Technical Drawing
Click to make photo Larger.

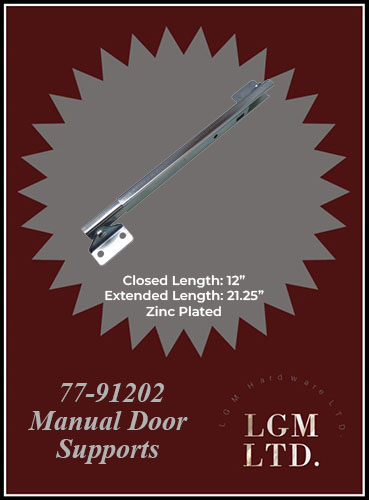

77-9120212"21.25"Zinc Plated

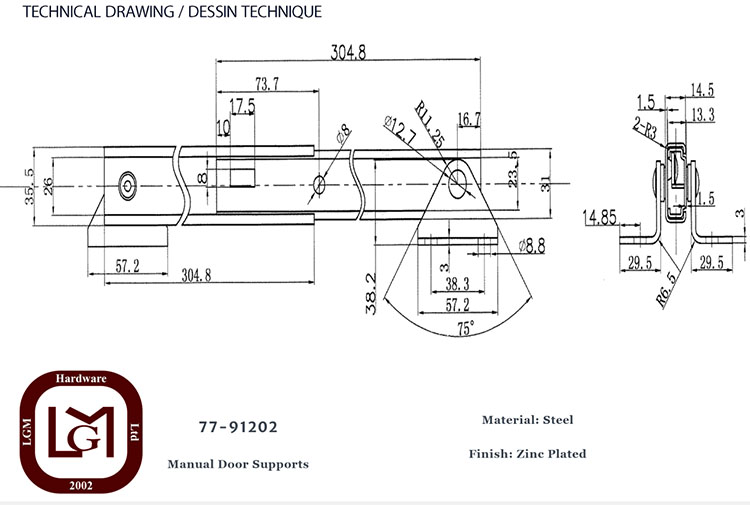

77 91202 Technical Drawing
Click to make photo Larger.
77-9130216"29.25"Zinc Plated

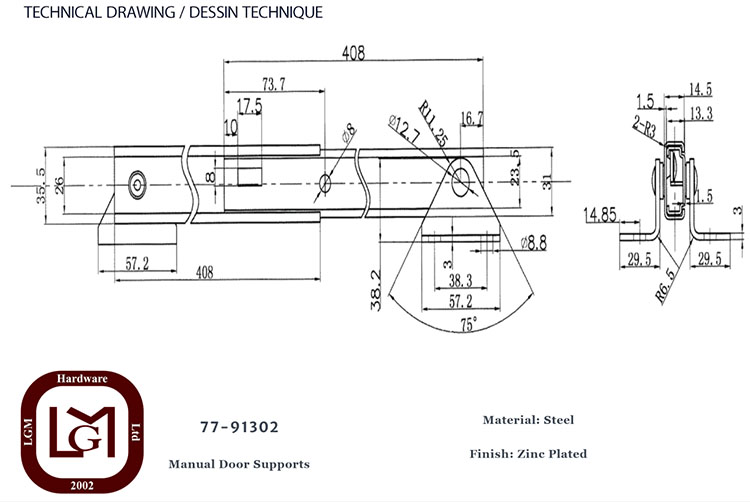

77 91302 Technical Drawing
Click to make photo Larger.

Additional information

Item #

77-75502, 77-75902, 77-91202, 77-91302
